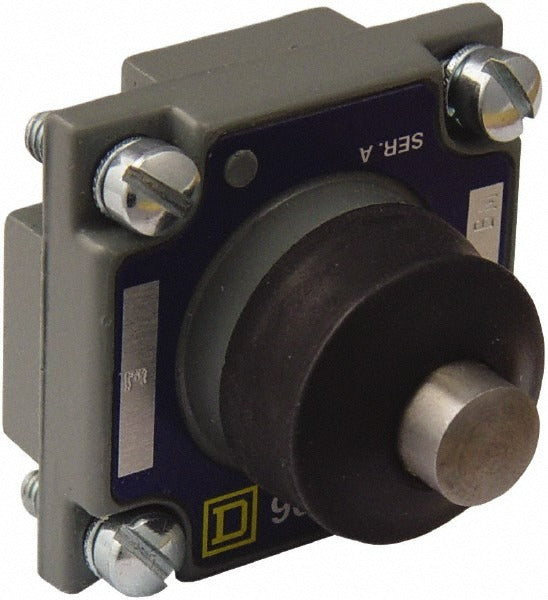

Square D 9007E Limit Switch Head 7.6 in for 9007C

Product Description

The SQUARE D 9007E is a limit switch head designed as a replacement accessory for compatible 9007C series limit switch bodies. Limit switch heads contain the actuating mechanism that detects position or motion in industrial and commercial control systems, triggering an electrical signal when a machine component reaches a set travel point. At 7.6 inches in overall length, the 9007E provides the mechanical reach needed for precise actuation alignment. This type of component is typically installed by industrial electricians and maintenance technicians working on automated machinery, conveyor systems, and process control equipment.

The 9007E limit switch head is intended for use with 9007C series limit switch bodies in industrial control applications. These configurations are common in manufacturing environments where machine guarding, end-of-travel detection, or position sensing is required. The replacement head allows technicians to service or upgrade the actuating portion of an existing 9007C installation without replacing the full switch assembly.

Key Features

• 7.6 inches overall length for precise mechanical actuation alignment
• Designed as a replacement limit switch head for 9007C series bodies
• Allows component-level serviceability without full switch assembly replacement
• Sold as a single-unit package with a minimum order quantity of one

Compatibility

Designed for use with SQUARE D 9007C series limit switch bodies as a replacement or service head component.

Installation Notes

Installation should be performed by a qualified industrial electrician or maintenance technician familiar with control circuit components. De-energize and lock out the machine circuit before removing or installing any limit switch component, following NFPA 70E lockout/tagout procedures. Verify that the actuating arm alignment and travel distance are correct for the application before returning the system to service.
