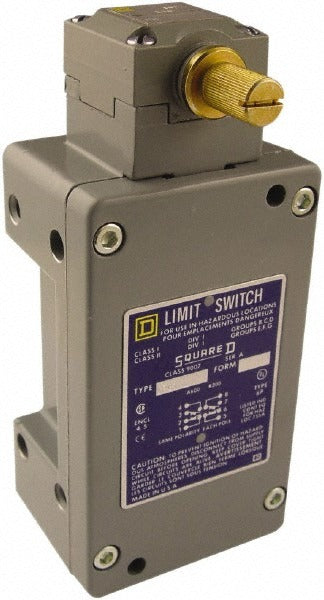

Square D 9007CR67T10 Limit Switch Spdt 2NC/2NO 600V IP67

Product Description

The SQUARE D 9007CR67T10 is a general-purpose limit switch rated for 600 volts with an SPDT contact form and a 2NC/2NO contact configuration. It features a rotary head actuator mounted on the side of the body, making it suited for machinery, conveyor systems, and industrial automation applications where precise position detection is required. The body is constructed of aluminum and zinc for durability in demanding environments. The switch carries an IP67 ingress protection rating, meaning it is protected against dust ingress and temporary water immersion. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The 9007CR67T10 is used in industrial and commercial settings where machinery position sensing, door interlock, or travel-limit detection is required. The rotary head actuator provides 10 degrees of travel, allowing it to detect cam or lever actuation in tight mechanical arrangements. Its NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 make it suitable for use in general-purpose, watertight, oiltight, and dust-tight enclosure environments. The screw terminal connection simplifies field wiring.

Key Features

• SPDT contact form with 2NC/2NO contact configuration for versatile circuit control
• IP67 ingress protection rating — dust-tight and protected against temporary submersion
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for broad environmental suitability
• Rotary head actuator with 10 degrees of travel, side-mounted for flexible installation
• Aluminum and zinc body construction for mechanical durability
• 600-volt rating with screw terminal connections for straightforward field wiring
• Operating temperature range from -20 degrees F to 185 degrees F
• RoHS compliant and meets IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-27, IEC 60529, IEC 61140 standards

Compatibility

Designed as an OEM-style general-purpose limit switch for industrial machinery, conveyor systems, and automation equipment requiring SPDT position sensing with a side-mounted rotary head actuator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out all power to the circuit before mounting or wiring the switch. Screw terminals should be torqued only as specified in the manufacturer installation sheet included with the unit. Verify the actuator alignment and travel direction against the mechanical cam or trip lever before returning the system to service.
