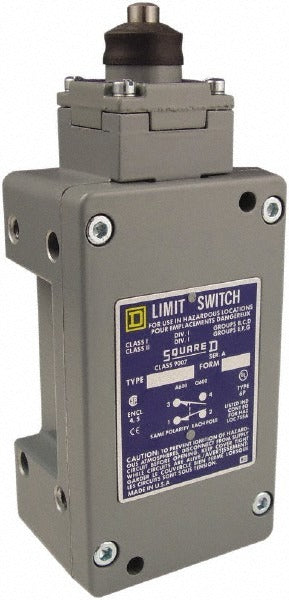

Square D 9007CR53E Limit Switch Spdt Nc Plunger 600V

Product Description

The SQUARE D 9007CR53E is a general purpose limit switch designed for industrial position-sensing and machine control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a top-mounted plunger actuator. The switch is rated for up to 600 volts and is housed in an aluminum and zinc body, providing durable performance in demanding environments. Screw terminals allow for secure, reliable wiring connections. The unit carries an IP67 ingress protection rating, making it suitable for use in wet or dusty conditions. Licensed electricians and industrial maintenance technicians are the primary installers of this component.

The 9007CR53E is suited for residential, commercial, and industrial control panel applications where precise mechanical position detection is required. Common install scenarios include conveyor systems, machine tool controls, door and gate interlocks, and other automated equipment requiring limit sensing. The actuator length of 7.6 inches allows for flexible positioning within tight or offset mounting locations. This switch performs reliably across a wide operating temperature range of -20 degrees F to 185 degrees F, making it usable in both cold storage and high-heat industrial environments.

Key Features

• SPDT contact form with normally closed (NC) configuration for standard limit sensing circuits
• Top-mounted plunger actuator with 7.6-inch actuator length
• 600-volt rating suitable for a wide range of industrial control applications
• IP67 ingress protection rating — dust-tight and protected against temporary immersion
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for broad environmental compatibility
• Aluminum and zinc body construction for corrosion resistance and mechanical durability
• RoHS compliant and meets multiple IEC standards including IEC 60529 and IEC 61140

Compatibility

Designed as an OEM-style general purpose limit switch replacement suitable for industrial machine control, conveyor, and position-sensing applications requiring an SPDT NC plunger-actuated switch rated at 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the equipment before installing or servicing the switch. Ensure the mounting surface is compatible with the switch body dimensions and that the plunger actuator aligns correctly with the mechanical actuating element. Screw terminals should be tightened securely to maintain proper contact and prevent loose connections under vibration.
