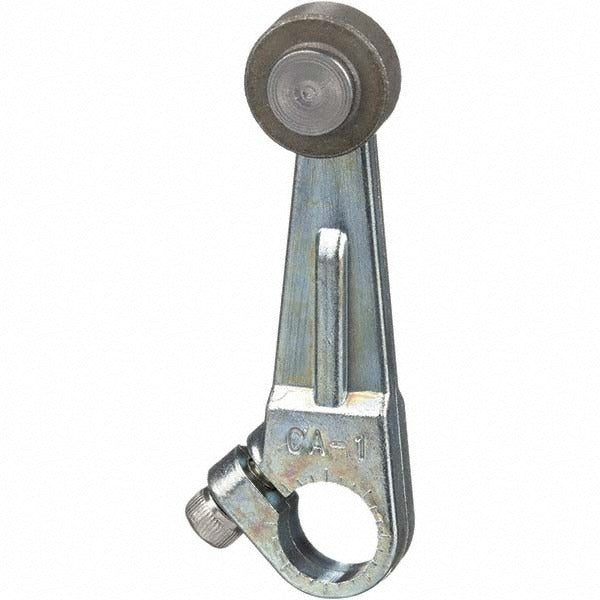

Square D 9007CA1 Limit Switch Roller Lever Steel

Product Description

The SQUARE D 9007CA1 is a replacement roller lever accessory designed for use with compatible 9007-series limit switches. The lever arm measures 2 inches in overall usable length and features a steel roller at the actuating end. It serves as the mechanical interface between a moving machine component and the switch body, translating physical contact into an electrical switching action. This type of lever is typically installed by industrial electricians and maintenance technicians on conveyor systems, machine tools, and automated equipment where precise position or travel-limit sensing is required. The part ships individually and is sold as a single-piece unit.

This roller lever is suited for installation in light industrial and commercial automation applications. It mounts directly to compatible SQUARE D 9007-series limit switch bodies, restoring proper actuation function when an original lever is worn, bent, or damaged. Common install scenarios include end-of-travel stops on conveyor lines, door or gate position sensing, and machine guard interlock systems. The steel roller construction handles repeated contact cycles against cams, ramps, and actuating dogs in typical factory environments.

Key Features

• Steel roller construction for durability through repeated actuation cycles
• 2-inch lever arm length suitable for standard 9007-series switch mounting geometry
• Direct OEM-style replacement that restores original switch actuation performance
• Single-piece package quantity simplifies maintenance and spare-parts ordering
• Lightweight at 0.1 pounds, adding minimal mass to the switch assembly

Compatibility

Compatible with SQUARE D limit switch series: 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5.

Installation Notes

Installation is performed by a qualified electrician or industrial maintenance technician. De-energize and lock out the machine circuit before removing or installing any limit switch component, following NFPA 70E lockout/tagout procedures. Verify the replacement lever arm length and roller style match the original actuating geometry before reassembly. Do not force the lever past its rated travel arc, as over-travel can damage the internal switch mechanism.
