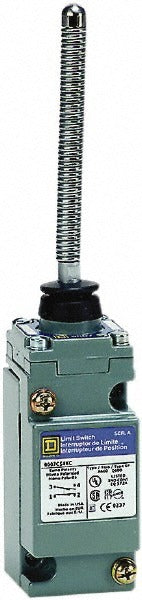

Square D 9007C62KC Limit Switch Dpdt 2NC/2NO Cat Whisker 600V

Product Description

The SQUARE D 9007C62KC is a general purpose limit switch designed for industrial position-sensing and machine control applications. It features a DPDT (double-pole double-throw) contact configuration with a 2NC/2NO arrangement and a cat whisker actuator, making it well suited for detecting the presence, position, or travel limit of moving machine components. The switch is rated for 600 volts and carries an IP67 ingress protection rating, providing reliable operation in environments exposed to dust, coolant splash, and wash-down conditions. The zinc body construction adds durability in demanding industrial settings. Screw-type terminals are used for field wiring. Licensed electricians and industrial maintenance technicians are the primary installers.

This limit switch is used in manufacturing, material handling, conveyor systems, and automated machinery where precise position detection is required. The cat whisker actuator style is well suited for applications requiring a low-force, highly sensitive trigger point, such as detecting light objects or fine positioning on machine slides. The 10-degree travel range supports tight, repeatable actuation. The unit is appropriate for both light industrial and heavy-duty environments given its NEMA 1, 2, 4, 6, 6P, 12, and 13 ratings, covering indoor, outdoor, and submersible-duty applications.

Key Features

• DPDT contact form with 2NC/2NO configuration for versatile circuit control
• Cat whisker actuator with 10-degree travel for sensitive, low-force position detection
• 600V rating supports a wide range of industrial control circuits
• IP67 ingress protection rating guards against dust ingress and temporary submersion
• Zinc body construction for durability in harsh industrial environments
• Screw-type terminals for secure, field-serviceable wiring connections
• RoHS compliant and certified to multiple IEC standards including IEC 60529 and IEC 61140

Compatibility

Designed as an OEM-style replacement or direct-install general purpose limit switch for industrial machine control panels and automated equipment requiring a DPDT, 2NC/2NO cat whisker actuator switch rated at 600V with NEMA 1, 2, 4, 6, 6P, 12, and 13 enclosure ratings.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician in accordance with the NEC and applicable local codes. De-energize all circuits and lock out/tag out the machine before mounting or wiring the switch. Screw terminals must be torqued to the values specified in the manufacturer installation sheet included with the unit. Verify actuator alignment and travel clearance before returning the equipment to service.
