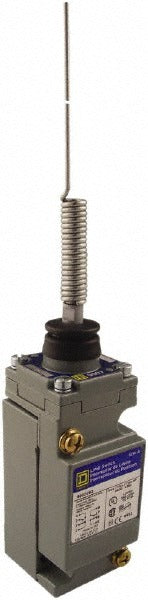

Square D 9007C62K Limit Switch Dpdt 2NC/2NO Cat Whisker 600V

Product Description

The SQUARE D 9007C62K is a general purpose limit switch designed for industrial position-sensing and machine control applications. It uses a cat whisker actuator and a DPDT contact configuration rated 2NC/2NO, making it well suited for detecting object presence, end-of-travel positions, and conveyor or actuator feedback. The switch is rated for up to 600 volts and carries an IP67 ingress protection rating, meaning it is fully dust-tight and capable of temporary immersion. The zinc body provides durability in demanding environments. Electricians and industrial maintenance technicians install this switch as part of automated machinery, control panels, and process equipment.

This limit switch is intended for general industrial and commercial use where reliable position sensing is required. Typical applications include conveyor systems, packaging equipment, material handling machinery, and machine tool automation. The cat whisker actuator allows 10 degrees of travel and responds to light contact forces, making it appropriate for detecting small or delicate objects. The screw terminal connection simplifies field wiring. Operating temperature range of -20 degrees F to 185 degrees F supports use in refrigerated or heated process environments.

Key Features

• DPDT contact form with 2NC/2NO configuration for flexible control circuit wiring
• Cat whisker actuator with 10 degrees of travel for sensitive object detection
• IP67 ingress protection rating — dust-tight and rated for temporary water immersion
• 600-volt rating supports a wide range of industrial control voltages
• Zinc body construction for mechanical durability in industrial environments
• RoHS compliant and meets multiple IEC standards including IEC 60529 and IEC 61140
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for broad environmental compatibility

Compatibility

Designed as an OEM-style general purpose limit switch replacement suitable for industrial control and automation systems requiring a DPDT cat whisker actuator switch rated at 600 volts with screw terminal connections.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician in accordance with the NEC and applicable local codes. De-energize and lock out all power to the machine or control circuit before mounting the switch or making wiring connections at the screw terminals. Verify actuator alignment and travel clearance before returning the system to service. Do not exceed the rated voltage or operating temperature range specified for this switch.
