Square D 9007C54N2 Limit Switch Spdt Nc Rotary Head

Product Description

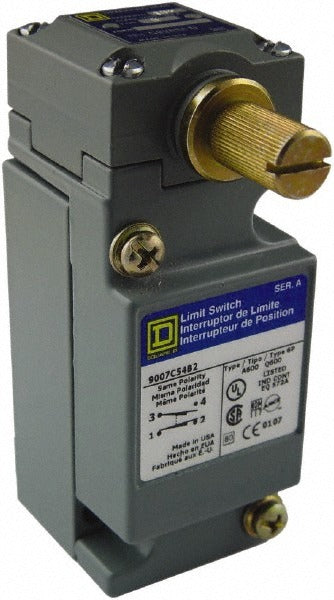

The SQUARE D 9007C54N2 is a general purpose limit switch rated for 600 volts with a single-pole double-throw (SPDT), normally closed (NC) contact configuration. The side-mounted rotary head actuator provides 10 degrees of travel, making this switch well suited for precise position detection in machinery and industrial control applications. The zinc body construction and IP67 ingress protection rating allow it to operate reliably in wet, dusty, or contaminated environments. Screw terminals simplify field wiring, and the unit meets multiple IEC standards along with RoHS compliance. Licensed electricians and industrial maintenance technicians are the primary installers for this type of device.

The 9007C54N2 is used in industrial and commercial control panel applications where accurate limit detection is required. Typical installations include conveyor systems, automated machinery, and process control equipment. The side-mounted rotary actuator with a 4.2-inch actuator length suits applications where the switch must detect the position of moving components from a lateral approach. The wide operating temperature range of -20 degrees F to 185 degrees F makes it viable for both indoor and outdoor industrial environments.

Key Features

• SPDT, normally closed (NC) contact form for standard limit detection circuits
• Side-mounted rotary head actuator with 4.2-inch actuator length and 10-degree travel
• IP67 ingress protection rating for dust-tight and temporary immersion resistance
• Zinc body construction for durability in harsh environments
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for broad environmental suitability
• RoHS compliant and meets IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 61140

Compatibility

Designed as an OEM-style replacement or direct-install general purpose limit switch for industrial control systems requiring a 600-volt rated SPDT rotary head actuator with side-mounting configuration.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control circuit before mounting or wiring this switch. Screw terminals require proper torque as specified in the equipment panel documentation. Verify actuator alignment and travel clearance before restoring power to the circuit.
