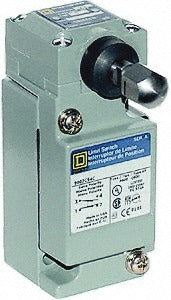

Square D 9007C54GD Limit Switch Spdt Nc Plunger

Product Description

The SQUARE D 9007C54GD is a general purpose limit switch designed for industrial position sensing and machine control applications. It features a side-mounted plunger actuator with a single-pole double-throw (SPDT) contact form in a normally closed (NC) configuration. The switch is housed in a zinc body rated to 600 volts and carries an IP67 ingress protection rating, meaning it is sealed against dust and temporary water immersion. Screw terminals simplify field wiring. This switch is installed by electricians and industrial maintenance technicians in automated machinery, conveyor systems, and process equipment where precise mechanical position detection is required.

The 9007C54GD is suited for both light industrial and demanding environments where moisture, dust, and mechanical vibration are present. Its operating temperature range of -20 degrees F to 185 degrees F makes it appropriate for indoor and outdoor installations, as well as refrigerated or heated process areas. The NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 confirm suitability across a broad range of enclosure and environmental conditions. Electricians and automation technicians typically deploy this switch as a travel limit, door interlock, or end-of-stroke sensor on production equipment.

Key Features

• Side-mounted plunger actuator for direct mechanical actuation
• SPDT contact form with NC configuration for fail-safe circuit design
• 600-volt rating supports a wide range of control circuit voltages
• IP67 ingress protection — dust-tight and protected against temporary submersion
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for broad environmental compatibility
• Zinc body construction for durable, long-service industrial use
• RoHS compliant and meets IEC 60068 and IEC 60529 standards

Compatibility

Designed as an OEM-style replacement or direct installation limit switch for general purpose industrial control and automation systems requiring a side-plunger SPDT NC configuration at up to 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control circuit before mounting or wiring the switch. Screw terminals require appropriate wire gauge and torque per the terminal manufacturer guidelines included with the switch. Verify actuator alignment and travel to prevent overtravel damage to the plunger mechanism.
