Square D 9007C54F Limit Switch Spdt Nc Roller Plunger 600V

Product Description

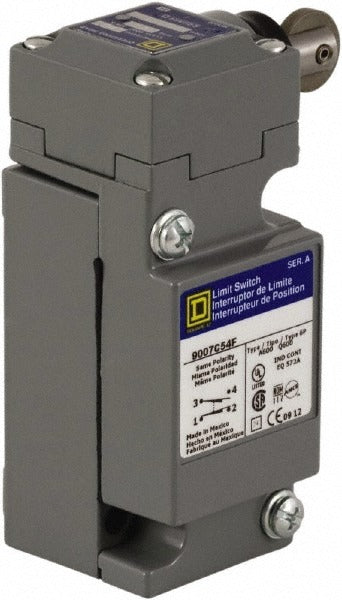

The SQUARE D 9007C54F is a general purpose limit switch rated for 600 volts with a single-pole double-throw (SPDT), normally closed (NC) contact configuration. It uses a roller plunger actuator mounted on the top of the zinc die-cast body, making it well suited for detecting linear or rotary machine movement in industrial and commercial control circuits. Screw terminals provide secure wire connections. The IP67 ingress protection rating means the switch is sealed against dust and temporary water immersion, allowing it to perform reliably in wash-down or wet environments. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This limit switch is designed for general purpose position sensing and end-of-travel detection on machinery, conveyor systems, actuators, and automated equipment. The top-mounted roller plunger actuator engages directly with moving mechanical components to open or close a control circuit. Its operating temperature range of -20 degrees F to 185 degrees F covers most indoor and protected outdoor industrial environments. The NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 make it adaptable across a wide range of enclosure and environmental requirements.

Key Features

• SPDT normally closed (NC) contact form for fail-safe circuit design
• Top-mounted roller plunger actuator for direct mechanical actuation
• 600-volt rating supports a broad range of industrial control voltages
• Zinc die-cast body provides durable, corrosion-resistant construction
• IP67 ingress protection rated for dust-tight and temporary immersion environments
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for versatile enclosure compatibility
• RoHS compliant and tested to multiple IEC standards

Compatibility

Designed as an OEM-style replacement or direct-install general purpose limit switch for industrial control, conveyor, and machinery applications requiring a top-actuated roller plunger switch with SPDT NC contacts at up to 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and lock out or tag out the equipment before mounting or wiring the switch. Screw terminals require proper torque to manufacturer spec using a standard slotted or Phillips screwdriver as appropriate. Verify actuator alignment with the mechanical trip point before returning the equipment to service.
