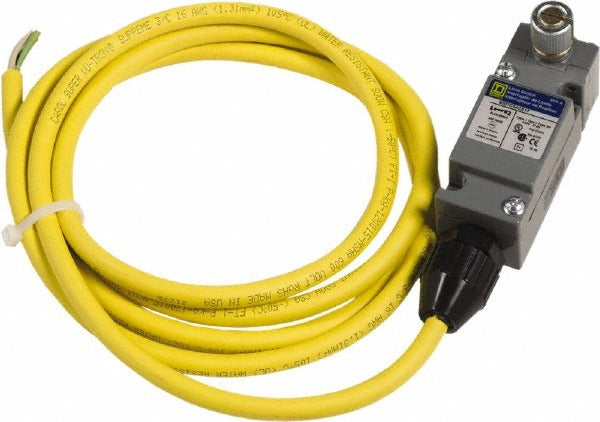

Square D 9007C54CS17 Limit Switch Spdt Nc Roller Lever

Product Description

The SQUARE D 9007C54CS17 is a general purpose limit switch designed for industrial and commercial control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a roller lever actuator with screw terminals. Built with a zinc body, it handles voltages up to 600 volts, making it suitable for a wide range of machine control and position-sensing circuits. Licensed electricians and industrial maintenance technicians are the typical installers. The switch is rated for operating temperatures from -20 degrees F to 185 degrees F, supporting use in both cold storage and high-heat industrial environments.

This limit switch is used in industrial machinery, conveyor systems, automated equipment, and commercial control panels where precise position detection or travel-limit protection is required. Its roller lever actuator suits applications where a moving mechanical component must trigger a control signal at a defined point of travel. The screw terminal connection simplifies field wiring during installation or replacement. It fits both new installations and direct replacement scenarios in existing control circuits.

Key Features

• SPDT contact form with NC configuration for reliable position-sensing control circuits
• Roller lever actuator for consistent mechanical actuation at defined travel points
• Screw terminal wiring for straightforward field installation and replacement
• Zinc body construction for durability in industrial environments
• 600-volt rating supports a broad range of commercial and industrial control voltages
• Wide temperature range from -20 degrees F to 185 degrees F for varied installation conditions

Compatibility

Designed as an OEM-style replacement or new-installation limit switch for industrial and commercial machine control systems requiring an SPDT, NC, roller lever actuator switch rated at 600 volts.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial maintenance technician in accordance with applicable NEC requirements. Disconnect and lock out all power to the control circuit before removing the existing switch or making any wiring connections. Verify actuator alignment with the mechanical travel stop before securing the switch body to avoid premature or missed actuation. Do not exceed the rated voltage or operating temperature range of the switch.
