Square D 9007C54C Limit Switch Spdt Nc Rotary Head IP66

Product Description

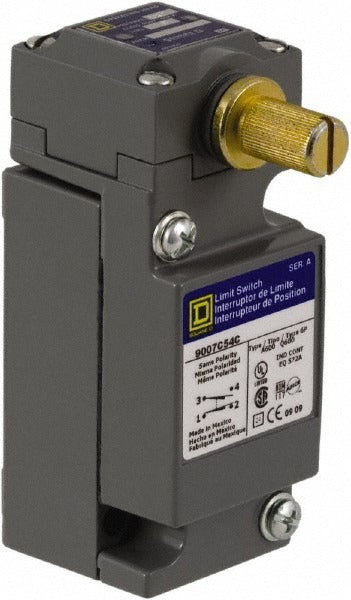

The SQUARE D 9007C54C is a general purpose limit switch designed for industrial and commercial control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a rotary head actuator mounted on the side of the metal body. The terminal type is screw, and the conduit connection is 1/2 in-14 NPT. With an IP66 ingress protection rating and NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13, this switch is built for demanding environments where dust and water exposure are a concern. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This limit switch is suited for use in machinery, conveyor systems, door and gate position sensing, and other automated control circuits in both residential and commercial industrial settings. The rotary head actuator responds to mechanical movement and converts it into a contact state change, making it a reliable choice for position detection and safety interlock applications. Its wide operating temperature range of -20 degrees F to 185 degrees F allows installation in both outdoor and harsh indoor environments.

Key Features

• SPDT contact form with NC configuration for reliable position sensing and interlock circuits
• Side-mounted rotary head actuator for mechanical travel detection
• Metal body construction for durability in industrial environments
• IP66 ingress protection rating with NEMA 1, 2, 4, 6, 6P, 12, and 13 ratings
• 1/2 in-14 NPT conduit connection with screw terminals for standard electrical installation
• Wide temperature range from -20 degrees F to 185 degrees F

Compatibility

Designed as an OEM-style general purpose limit switch for use in industrial control panels, machinery, and automated equipment requiring SPDT rotary head position sensing with a side conduit entry.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize all circuits and lock out the power source before mounting or wiring the switch. Screw terminals require proper torque to maintain reliable contact; use appropriate hand tools and follow the terminal manufacturer guidelines. Ensure conduit fittings are rated for the environment to maintain the IP66 and NEMA enclosure ratings of the switch.
