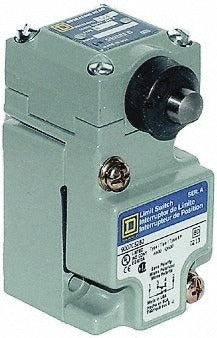

Square D 9007C52G Limit Switch Spdt Nc Plunger 600V IP67

Product Description

The SQUARE D 9007C52G is a general purpose limit switch designed for industrial position sensing and machine control applications. It features a side-mounted plunger actuator and a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration. The switch is housed in a zinc body rated for ingress protection to IP67, making it suitable for wash-down and submersion environments. Electrical capacity reaches 600 volts, and screw terminals provide a secure, field-wirable connection. Licensed electricians and industrial maintenance technicians are the primary installers of this component.

This limit switch is suited for use in industrial machinery, conveyor systems, automated equipment, and process control panels where reliable end-of-travel or position detection is required. Its IP67 rating and NEMA ratings covering Types 1, 2, 4, 6, 6P, 12, and 13 make it a strong fit for both indoor and outdoor or wash-down duty installations. The operating temperature range of -20 degrees F to 185 degrees F covers most demanding industrial environments. Compliance with multiple IEC standards supports use in internationally specified equipment builds.

Key Features

• SPDT contact form with NC configuration for fail-safe position sensing
• Side-mounted plunger actuator for straightforward mechanical interface
• IP67 ingress protection rating for dust-tight and submersion-resistant operation
• 600-volt rating suitable for industrial control circuit voltages
• Zinc body construction for durability in industrial environments
• RoHS compliant and listed to IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 61140

Compatibility

Designed as an OEM-style replacement or direct-install general purpose limit switch for industrial machine control and position sensing applications requiring an SPDT NC plunger-style switch with NEMA Types 1, 2, 4, 6, 6P, 12, and 13 enclosure ratings.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize all circuits and lock out and tag out the equipment before mounting or wiring the switch. Screw terminals should be tightened to the terminal manufacturer specification using an appropriate screwdriver; do not over-torque. Verify actuator alignment with the mechanical trip mechanism before returning the machine to service.
