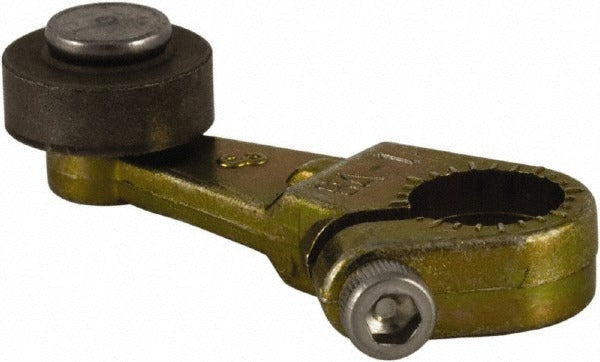

Square D 9007BA1 Limit Switch Operator Cast Zinc

Product Description

The SQUARE D 9007BA1 is a limit switch operator designed for use with compatible limit switches in industrial and commercial control applications. This operator features a cast zinc body measuring 1.38 inches in overall length and 0.63 inches in diameter, making it a compact actuating component. The steel roller provides durable, repeatable mechanical actuation for position sensing and machine control circuits. Licensed electricians and industrial maintenance technicians typically install this type of operator as part of a larger limit switch assembly used in automation, conveyor, or machinery control systems.

This operator is suited for use in industrial environments where a reliable mechanical actuator is needed to trigger a limit switch response. It is commonly installed in manufacturing facilities, process control settings, and commercial mechanical systems where position detection or end-of-travel sensing is required. The compact form factor allows installation in tight panel or machine enclosures where space is limited.

Key Features

• Cast zinc body construction for corrosion resistance and durability
• Steel roller provides consistent mechanical actuation over repeated cycles
• Compact design at 1.38 inches long and 0.63 inches in diameter
• Designed for use with limit switches as an actuating operator component
• Lightweight at 0.06 pounds for easy handling and installation

Compatibility

Designed for use with SQUARE D limit switches as a replacement or service operator component. Refer to the SQUARE D 9007BA1 product documentation to confirm fitment with your specific limit switch model.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician. Disconnect and lock out all power to the control circuit and associated machinery before servicing or replacing a limit switch operator. Verify mechanical alignment of the roller with the actuating cam or trip mechanism before returning the system to service. Follow applicable NEC guidelines and local codes for industrial control wiring and equipment maintenance.
