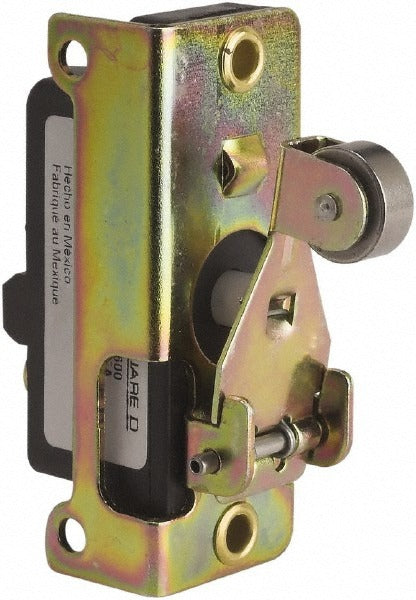

Square D 9007AB21 Limit Switch Spdt Nc Roller Plunger

Product Description

The SQUARE D 9007AB21 is a general purpose limit switch designed for industrial position-sensing applications. It features a single-pole double-throw (SPDT) contact configuration in a normally closed (NC) arrangement, actuated by a roller plunger mounted on the side of the zinc body. The switch is rated for 600 volts AC and carries an IP20 ingress protection rating. It mounts via a side bracket and terminates with screw-type connections. Licensed electricians and industrial maintenance technicians install this switch to detect machine component position, end-of-travel, or object presence in control circuits.

This limit switch suits residential and light commercial applications within NEMA 1 environments — dry, indoor locations free from unusual dust, moisture, or corrosive conditions. It is commonly installed on conveyor systems, door assemblies, gate controls, and general-purpose machine guarding circuits where reliable position feedback is required. The roller plunger actuator makes it well suited for cam-driven or side-approach actuation scenarios where a rotating or sliding mechanical element trips the switch.

Key Features

• SPDT normally closed contact form for fail-safe position sensing
• Roller plunger actuator with side-mount orientation for cam or lateral approach applications
• 600-volt AC rating supports a wide range of industrial control voltages
• Zinc body construction for durability in light industrial environments
• Screw terminal connections for secure, tool-accessible wiring
• RoHS compliant and tested to IEC 60529 standards

Compatibility

Designed as an OEM-style replacement or direct-install general purpose limit switch for NEMA 1 rated industrial control and position-sensing circuits.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control circuit before mounting or wiring the switch. Secure the bracket mount firmly to prevent actuator misalignment during operation. Verify actuator travel and overtravel clearances against the mechanical assembly before restoring power.
