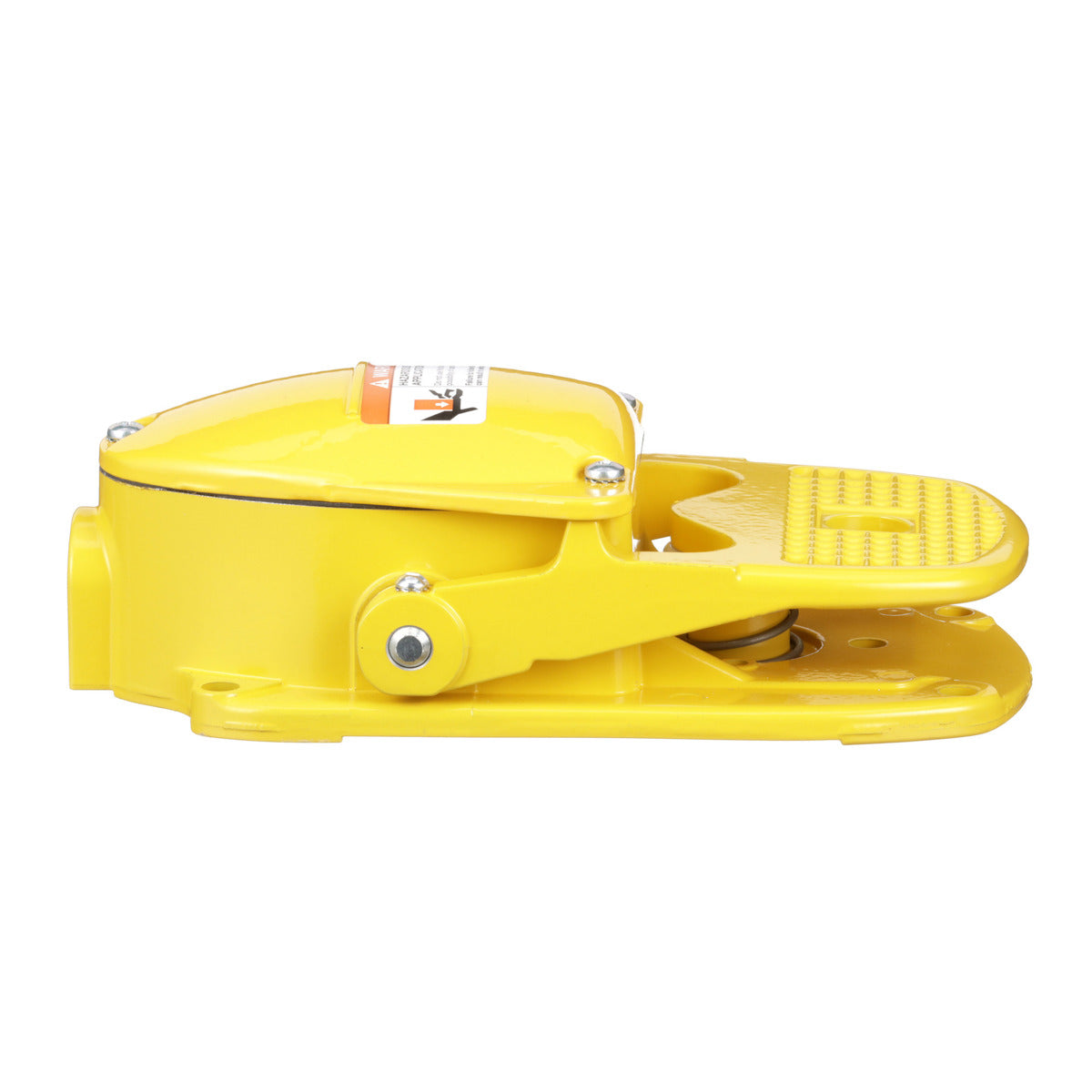

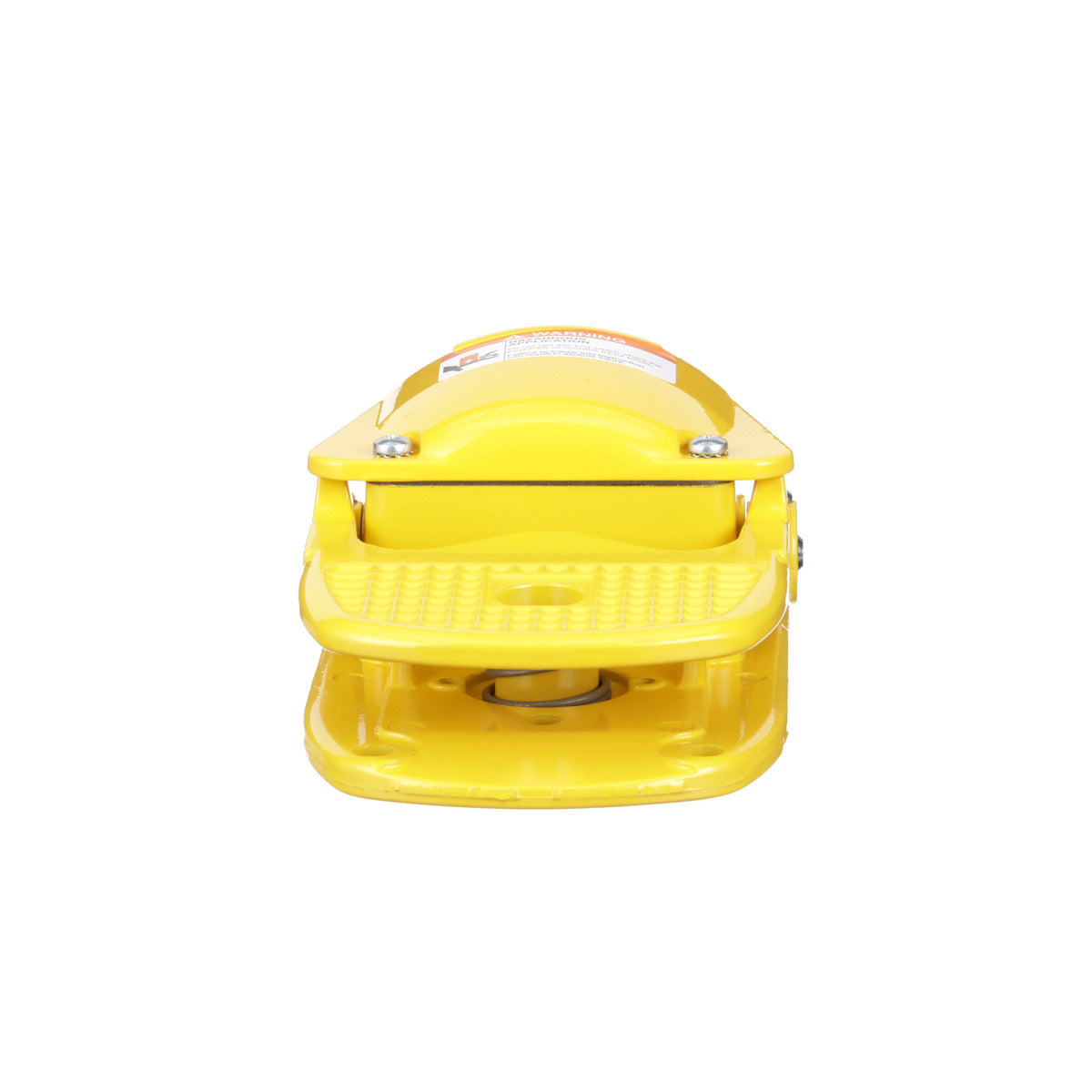

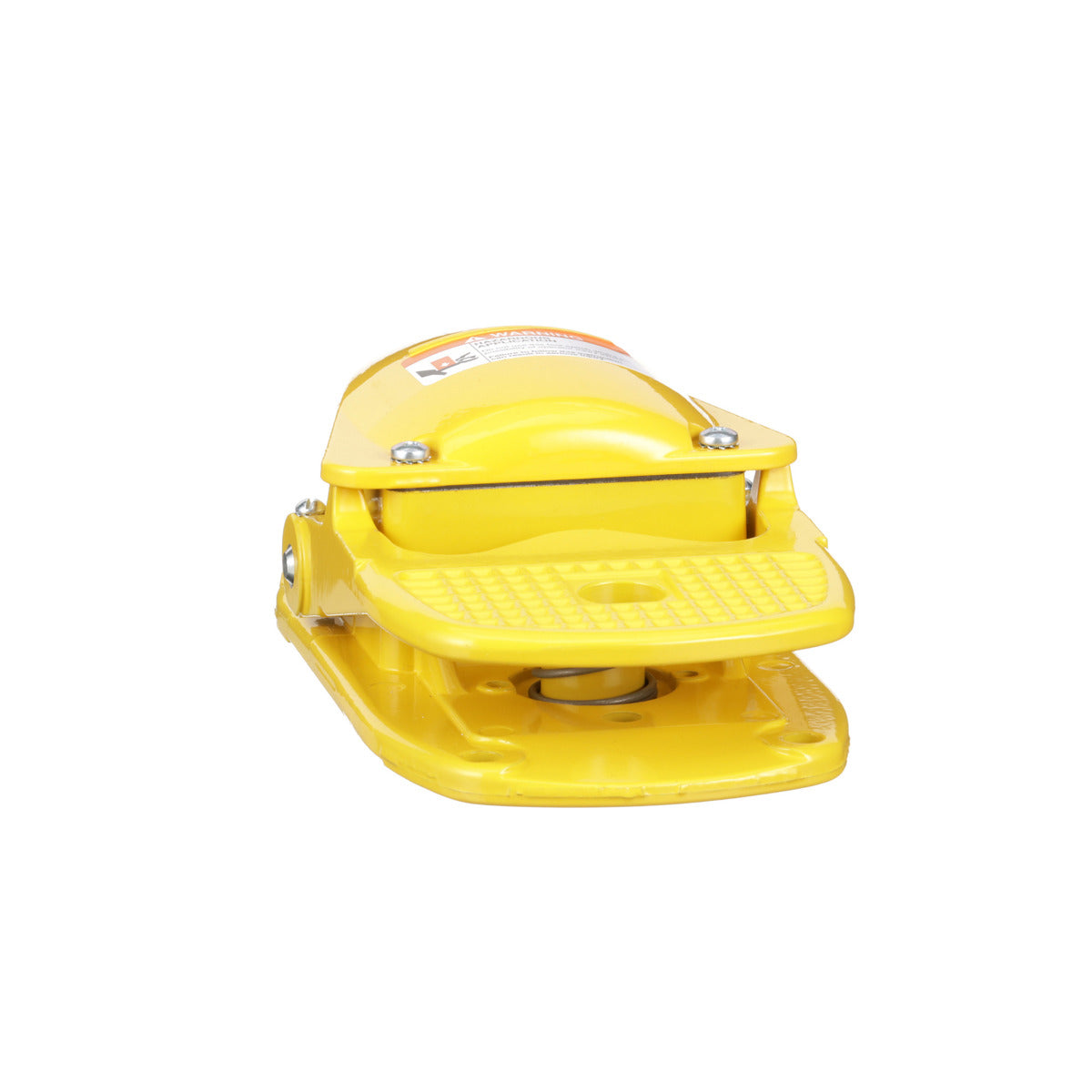

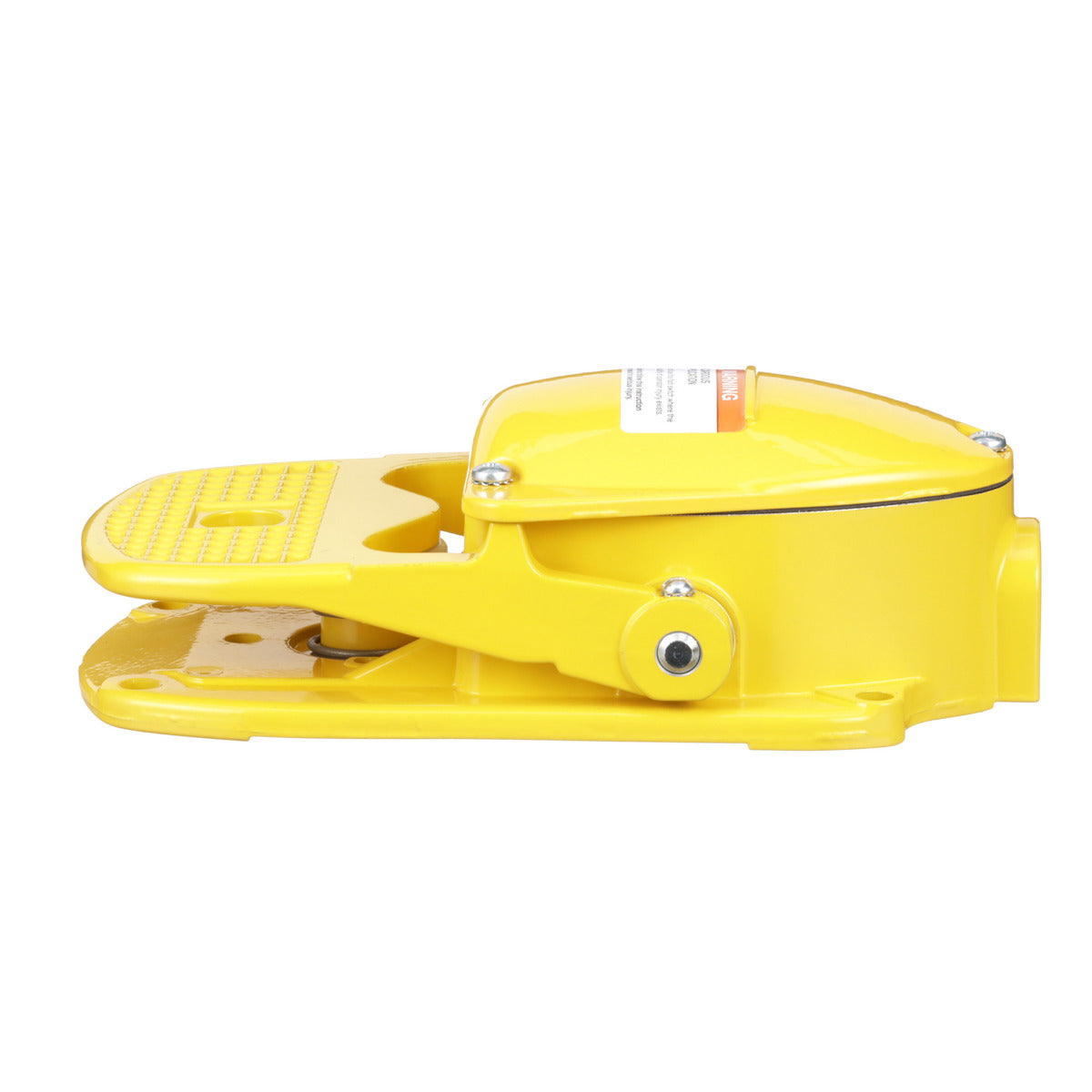

Square D 9002AW1 Foot Switch 5 Amp 600 VAC

Product Description

The Square D 9002AW1 is a foot switch designed for industrial applications. It features a spring return mechanism and is rated for five amperes at six hundred volts AC. This device allows operators to maintain hands-free control in various industrial processes.

• This is an unshielded SPDT (single pole double throw) spring return foot switch.
• The enclosure ratings are NEMA 2, 4, and 13, suitable for many environments.
• It is UL listed and CSA certified for safety compliance.

Product Highlights

This foot switch is ideal for use in control and automation sectors, enhancing safety and efficiency on the job.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9002AW1
• Type: Foot switch
• Actuator: Spring return
• Voltage: 600 Volt
• Enclosure Rating: NEMA 2, 4, 13
• Cable Entry: 0.75 inch NPT conduit entrance
• Environmental Conditions: Water tight, dust tight and oil tight
• Country of Origin: Mexico
