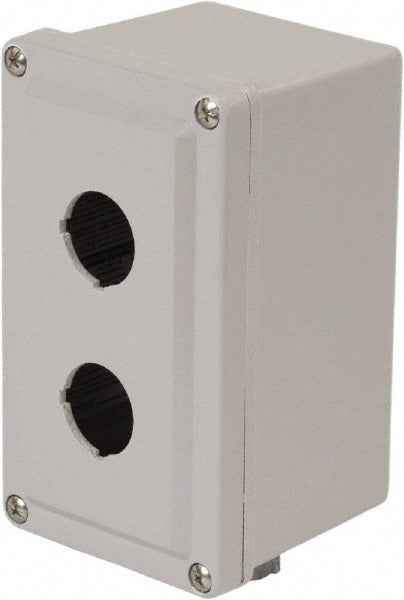

Square D 9001SKY2 Pushbutton Switch Enclosure 2 Hole

Product Description

The SQUARE D 9001SKY2 is a two-hole plastic pushbutton switch enclosure designed to house 30mm pushbutton operators in control panel and machinery applications. Built to meet NEMA 1, 3, 4, 12, and 4X ratings, this enclosure provides protection against dust, dirt, splashing water, and corrosion, making it a versatile choice for both indoor and outdoor industrial environments. The enclosure measures 4.5 inches in length, 3 inches in width, and 3 inches in height, offering a compact footprint for panel mounting. It weighs 1.71 pounds. Electricians and control panel technicians install this unit as part of operator interface assemblies on machine control stations, conveyor lines, and similar industrial systems.

This enclosure is suited for industrial and commercial installations where 30mm pushbutton operators require a durable, ratings-compliant housing. It accepts two 30mm control devices, allowing for common two-operator configurations such as start and stop controls. The NEMA 4X rating makes it appropriate for washdown environments, chemical exposure areas, and outdoor installations. It is commonly installed on production equipment, pump control stations, and other fixed machinery requiring front-panel operator access.

Key Features

• Two 30mm knockout holes sized for standard 30mm pushbutton operators
• NEMA 1, 3, 4, 12, and 4X rated for broad environmental protection including washdown and corrosion resistance
• Plastic construction reduces weight and resists corrosion
• Compact body at 4.5 x 3 x 3 inches fits tight panel spaces
• Suitable for indoor and outdoor industrial applications

Compatibility

Designed as an OEM-style enclosure for 30mm pushbutton operators in industrial control applications. Compatible with standard 30mm control devices that conform to the hole spacing and cutout dimensions of this enclosure.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements for industrial control wiring. De-energize and lockout the associated control circuit before opening or wiring the enclosure. Verify that all operators installed in the 30mm holes are rated for the environment matching the enclosure NEMA rating. Do not modify the enclosure cutouts in a way that would compromise the stated NEMA rating.
