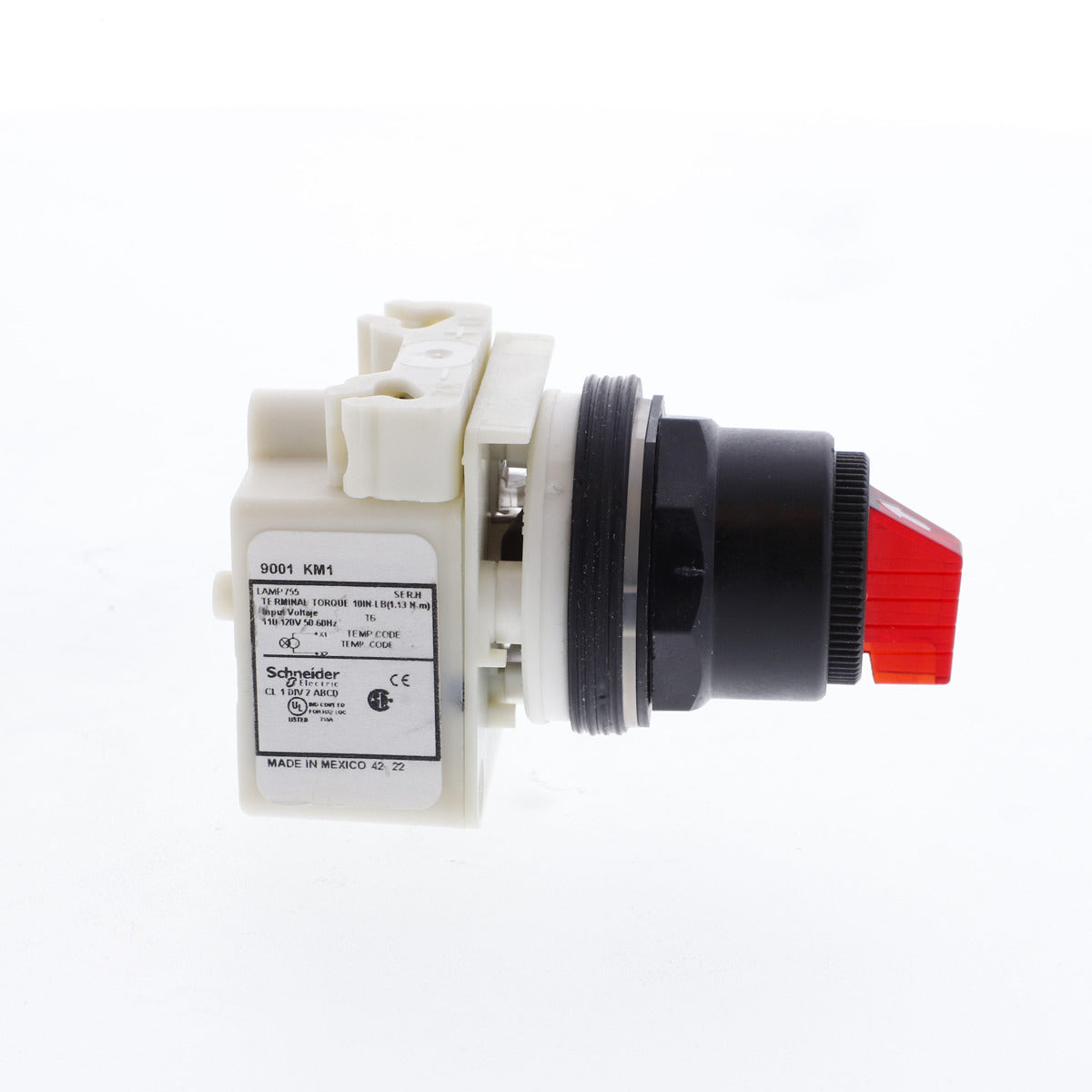

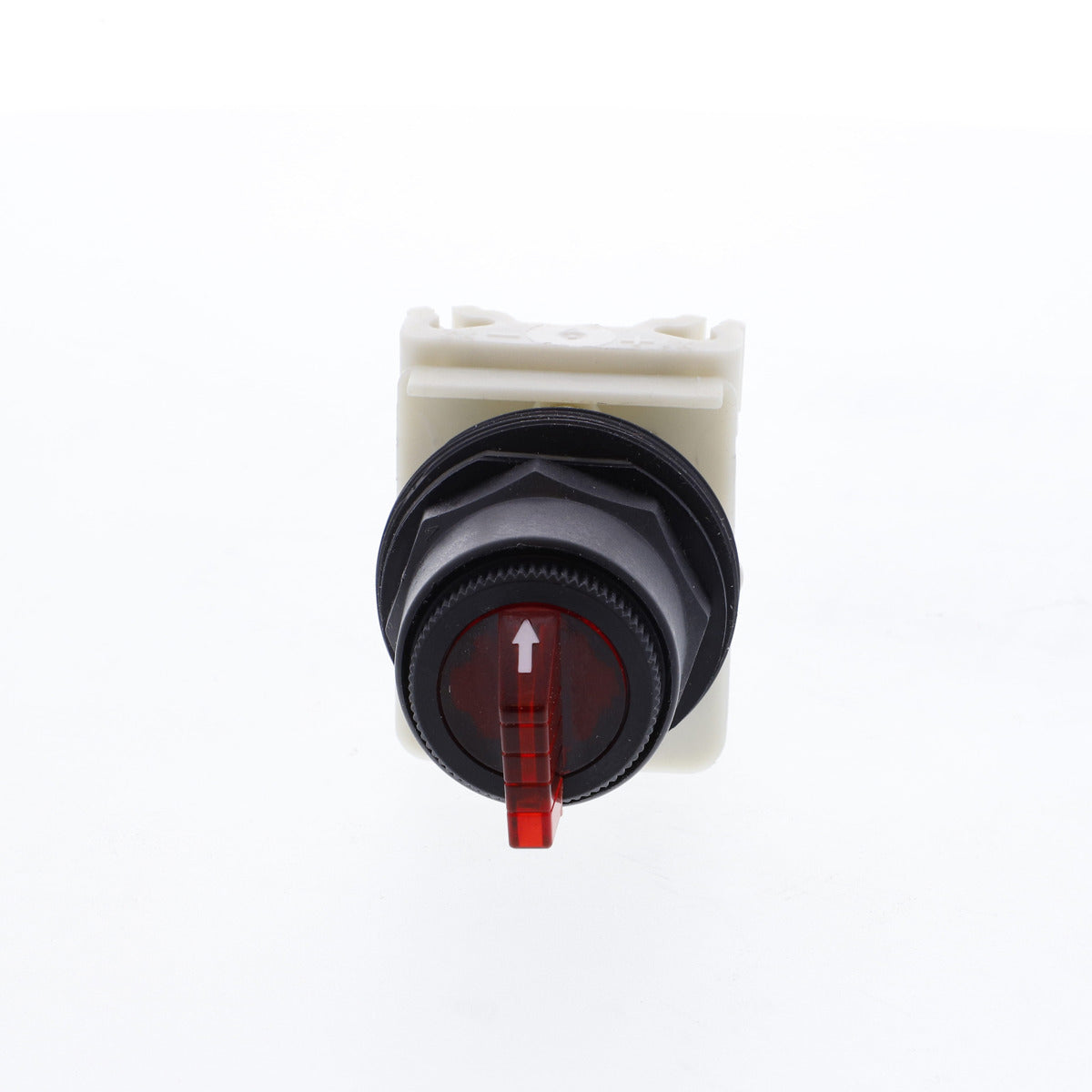

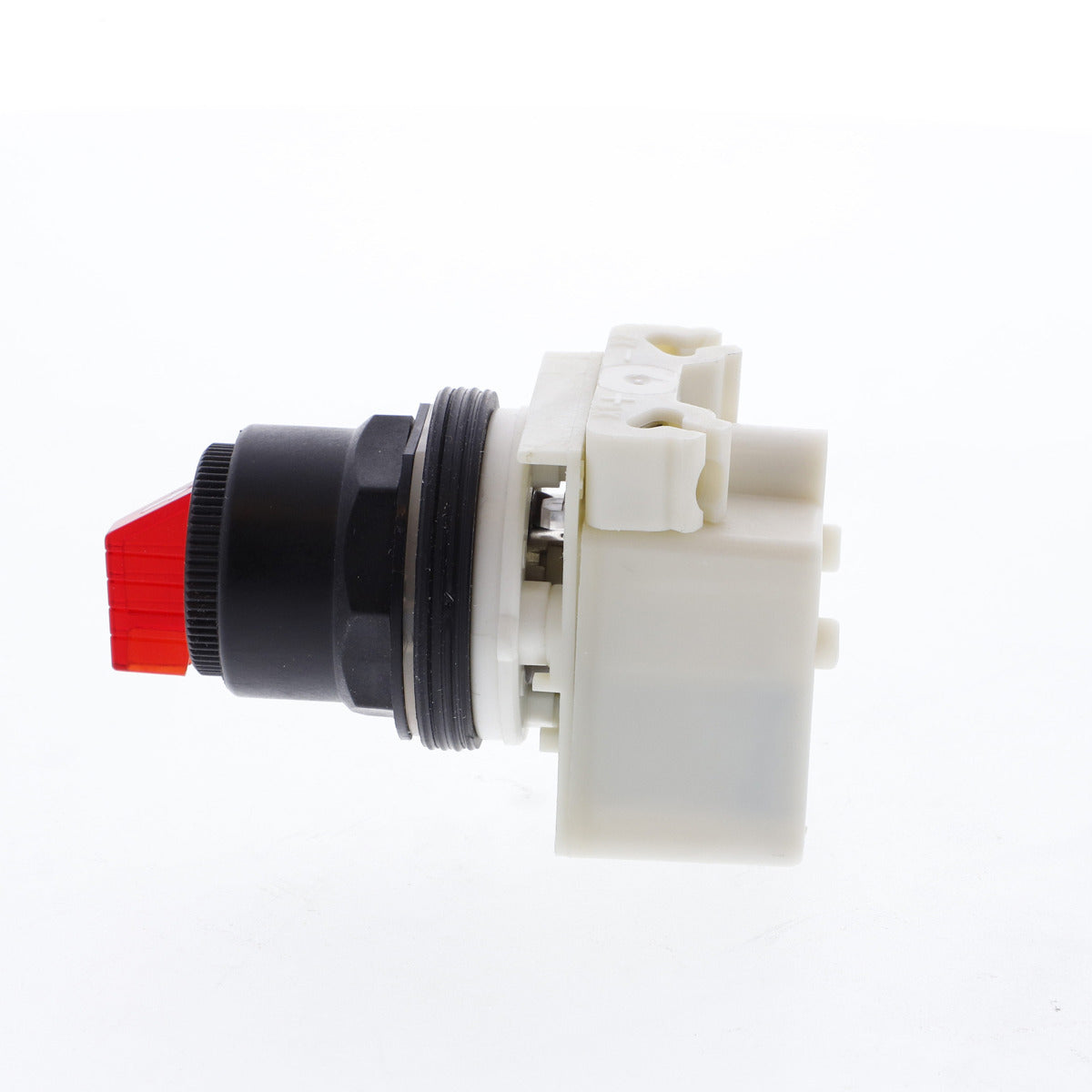

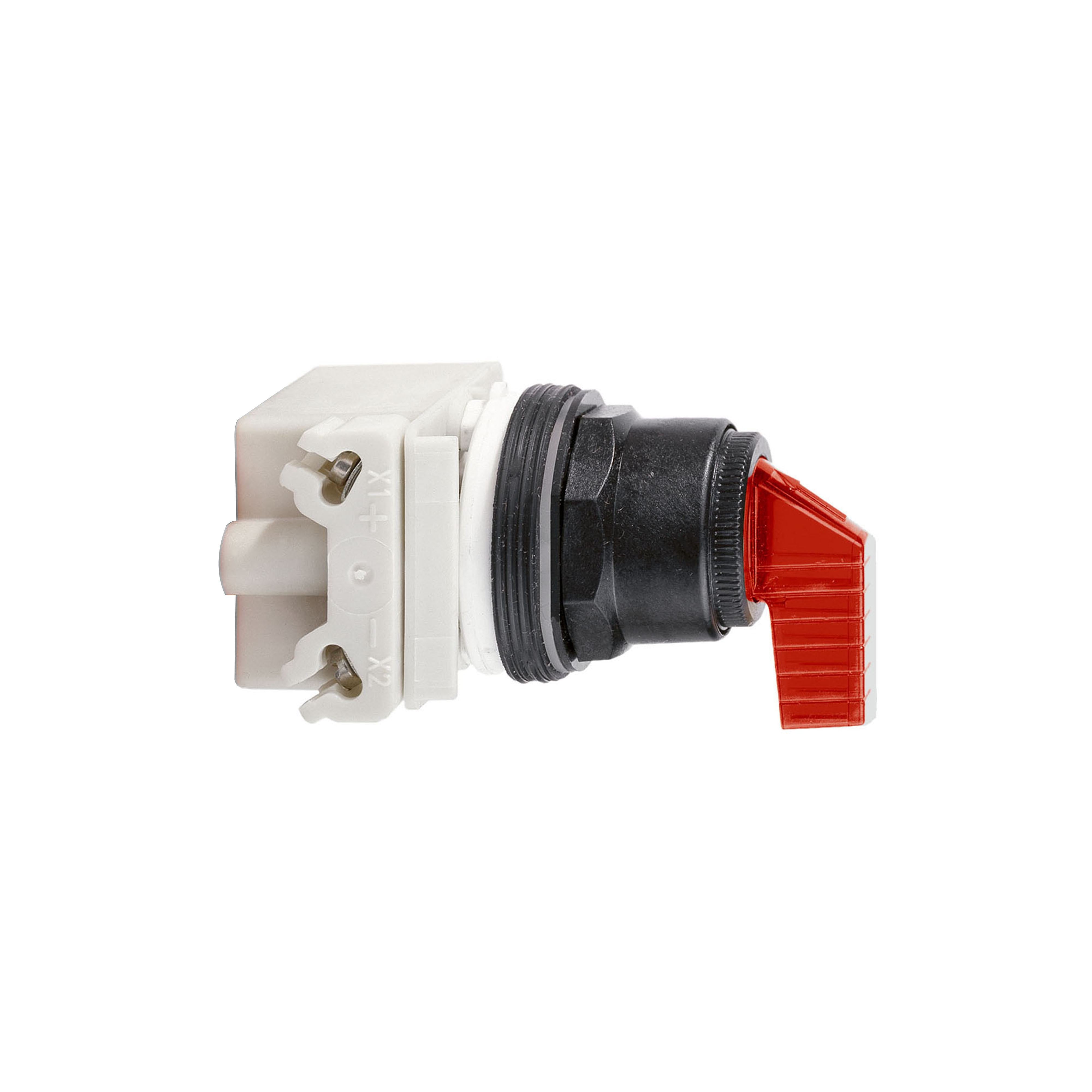

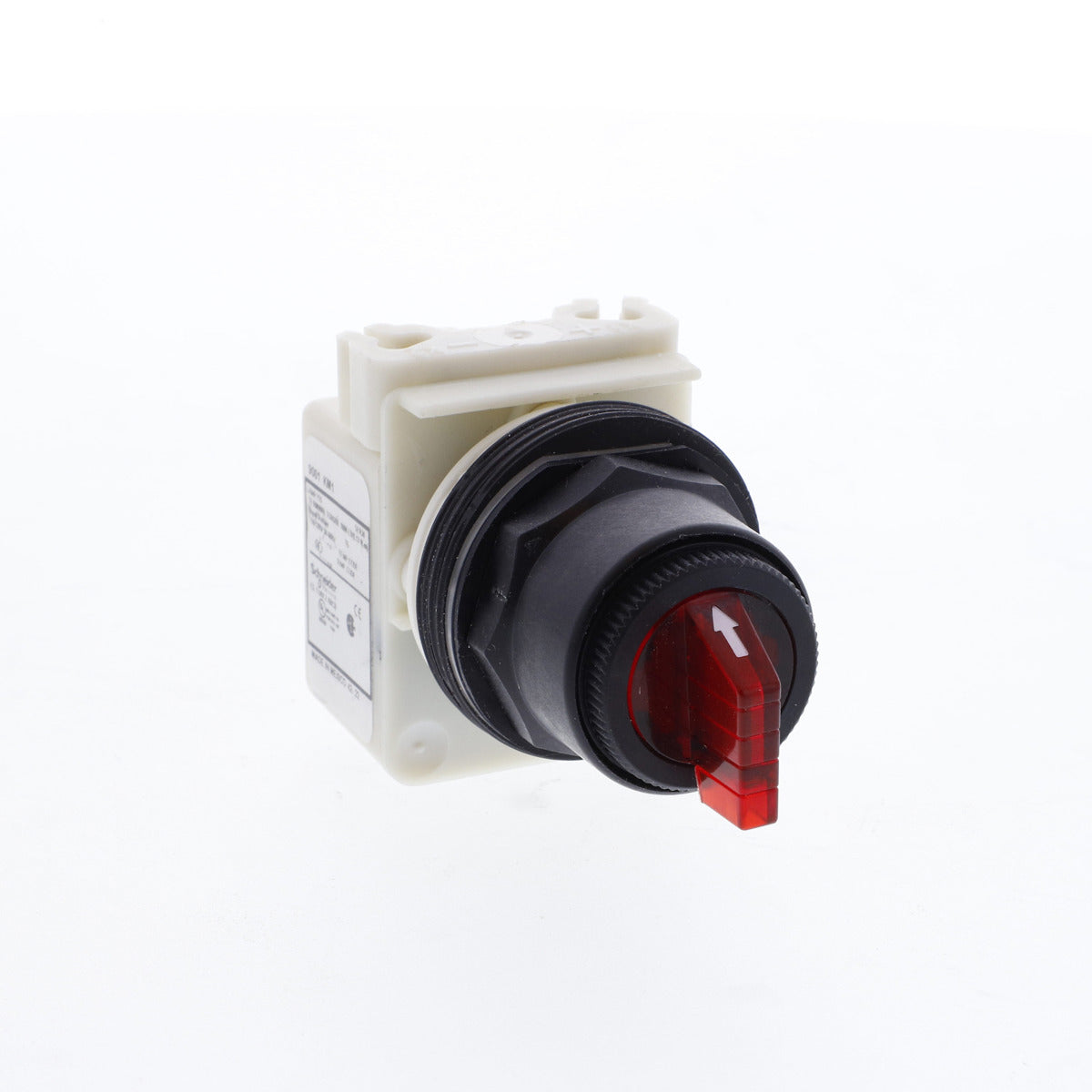

Square D 9001sk43j1r 30 mm 3-position knob illuminated selector switch operator

Product Description

The Square D 9001SK43J1R is a 30mm 3-position illuminated selector switch operator. This Harmony 9001SK selector switch features a plastic, standard knob and is designed for maintained operation. It is suitable for use in indoor and outdoor environments.

• 30mm size
• Maintained operation
• NEMA 1/2/3/3R/4/4X/6/12/13 enclosure rating

Product Highlights

The Square D 9001SK43J1R selector switch is ideal for industrial applications requiring a robust and reliable operator. It offers easy installation and a modular design.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9001SK43J1R
• Country of Origin: Mexico

Technical Specifications

• Size: 1.18 in
• Type: Round, Standard Knob
• Brand: Square D
• Action: MAINTAINED
• Voltage: 600 Volt
• Actuator: 3 positions;Standard knob
• Enclosure: NEMA 1/2/3/3R/4/4X/6/12/13, IP66
• Sub Brand: K
• Product UPC: 78590196009
• 12-Digit UPC: 785901960096
• Bezel Material: Plastic
• Certifications: CE,CSA LR24590 Class 3211 03,UL Listed File E42259 CCN NKCR
• Enclosure Type: Dust and oil resistant weatherproof enclosure indoor/outdoor
• Country of Origin: Mexico
• Contact Configuration: WITHOUT CONTACT BLOCK
• Environmental Conditions: WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
• Catalog Number: 9001SK43J1R
• Manufacturer: Schneider Electric
• UPC: 785901960096
• GTIN: 00785901960096
• Operation Type: Maintained
• Number of Positions: 3
• Throw: Left-Center-Right 70 Deg
• Cam Code: C
• Lamp Input Type: 110 to 120 V at 50/60 Hz Transformer
• Lamp Type: Incandescent
• Lamp Number: 755
• Applicable Standard: EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4
• Operating Temperature: -25 to 70 Deg C
• Series: 9001SK
• Operator Type: Projecting
• Voltage Rating: 600 V AC
• Mounting Type: Panel
• Temperature Rating: -13 to 158 deg F
