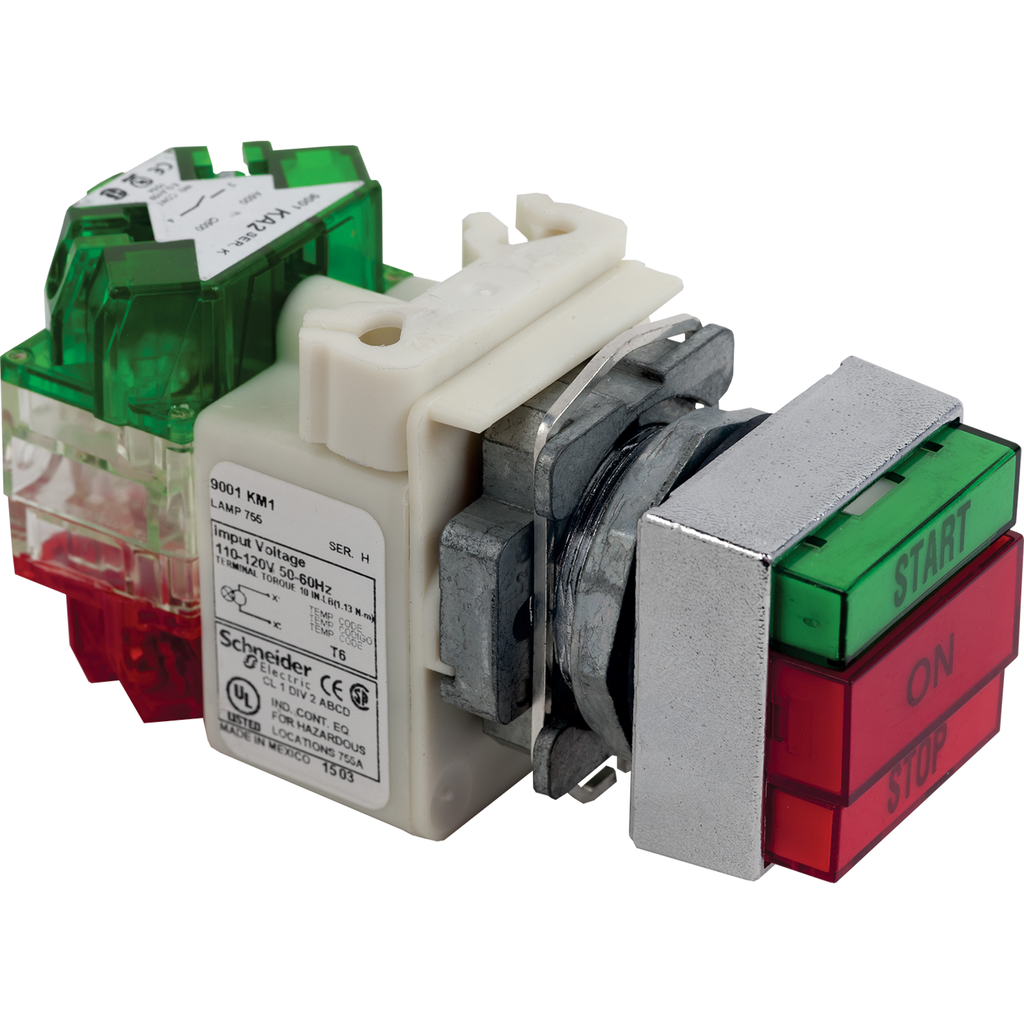

Square D 9001KXRG137 30 mm Green/Red Body Momentary Extended Push Button Operator

Product Description

The Square D 9001KXRG137 is a momentary extended push button operator designed for control applications. This unit features a green push button marked START and a red push button labelled STOP, making it suitable for various operational tasks. With a voltage rating of six hundred volts and a current rating of ten amps, this push button is capable of handling significant electrical loads.

• Push button type: Harmony 9001K
• Suitable for NEMA 4/4X/13 applications
• 1 NO + 1 NC contact configuration

Product Highlights

This product combines functionality with reliability, making it ideal for use in industrial environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Voltage: 600 Volt
• Amperage: 10 Amp
• Size: 30 mm
• Type: Push Button with Pilot Light
• Enclosure Rating: NEMA 4/4X/13 IP65
• Sub Brand: Harmony
• Contact Rating: AC15 - DC13
• Connection Type: Screw Clamp
