Square D 9001KR9GH13 Push Button 600 Volt 30 mm

Product Description

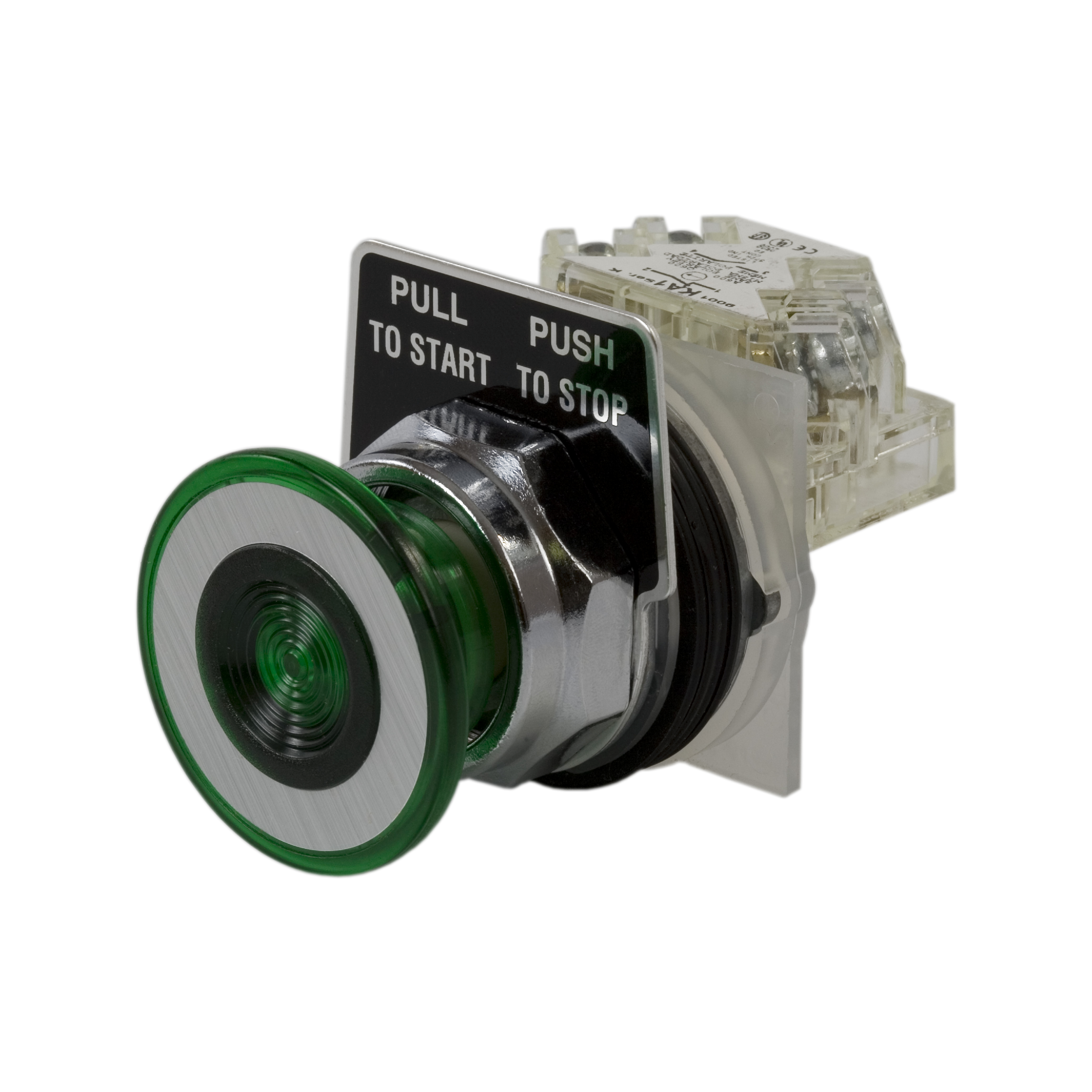

The SQUARE D 9001KR9GH13 is a Harmony 9001K modular push button with a stay-put mechanism. It features a chromium-plated metal bezel and a 40mm mushroom head. This push button is ideal for applications requiring quick actions. The unit is impact, dust, water, and vibration resistant with IP66 protection, and has 1 x NO + 1 x NC contacts.

• Modular design with stay-put mechanism
• Chromium-plated metal bezel and 40mm mushroom head
• Impact, dust, water, and vibration resistant (IP66)

Product Highlights

This heavy-duty push button is suitable for use in harsh environments and offers reliable control in a compact, 30mm size.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9001KR9GH13
• Country of Origin: United States

Technical Specifications

• Size: 30 MM
• Type: MUSHROOM HEAD PUSH-BUTTON
• Brand: Square D
• Voltage: 600 V
• Actuator: GREEN MUSHROOM Ø 41 MM,PUSH-PULL
• Amperage: 10 Amp
• Enclosure: NEMA 1/2/3/3R/4/6/12/13
• Indicator: WITHOUT
• Sub Brand: K
• Light Source: Without
• TC Connection: SCREW CLAMP TERMINALS
• Bezel Material: Metal
• Certifications: CE,CSA LR 25490 Class 3211 03,NEMA,UL Listed File E42259 CCN NKCR
• Contact Rating: AC15 - DC13
• Contact Configuration: 1 C/O
• Environmental Conditions: WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
• Action: STANDARD
• Mounting Type: Panel
• Operation: Maintained (Push-Pull)
• Termination: Screw terminal
• Current Rating: 10 A
• Head Type: Round
• Mounting Hole Size: 30 mm
• Series: Harmony 9001K Series
• Actuation: Maintained
• Contacts: Silver Alloy
• Material: Chromium plated metal
• Number of Positions: 2
• Enclosure Type: NEMA 1/2/3/3R/4/6/12/13/IP66
• Terminal Type: Screw/Clamp
• Contact Mode: Maintained/Push-Pull
• Alternate Catalog Number: 9001KR9GH13
• Connection: Screw clamp terminals
• Standard: CSA LR 25490 CLASS 3211 03-CE-NEMA-UL LISTED FILE E42259 CCN NKCR
• Manufacturer: Schneider Electric
• Country of Origin: US
