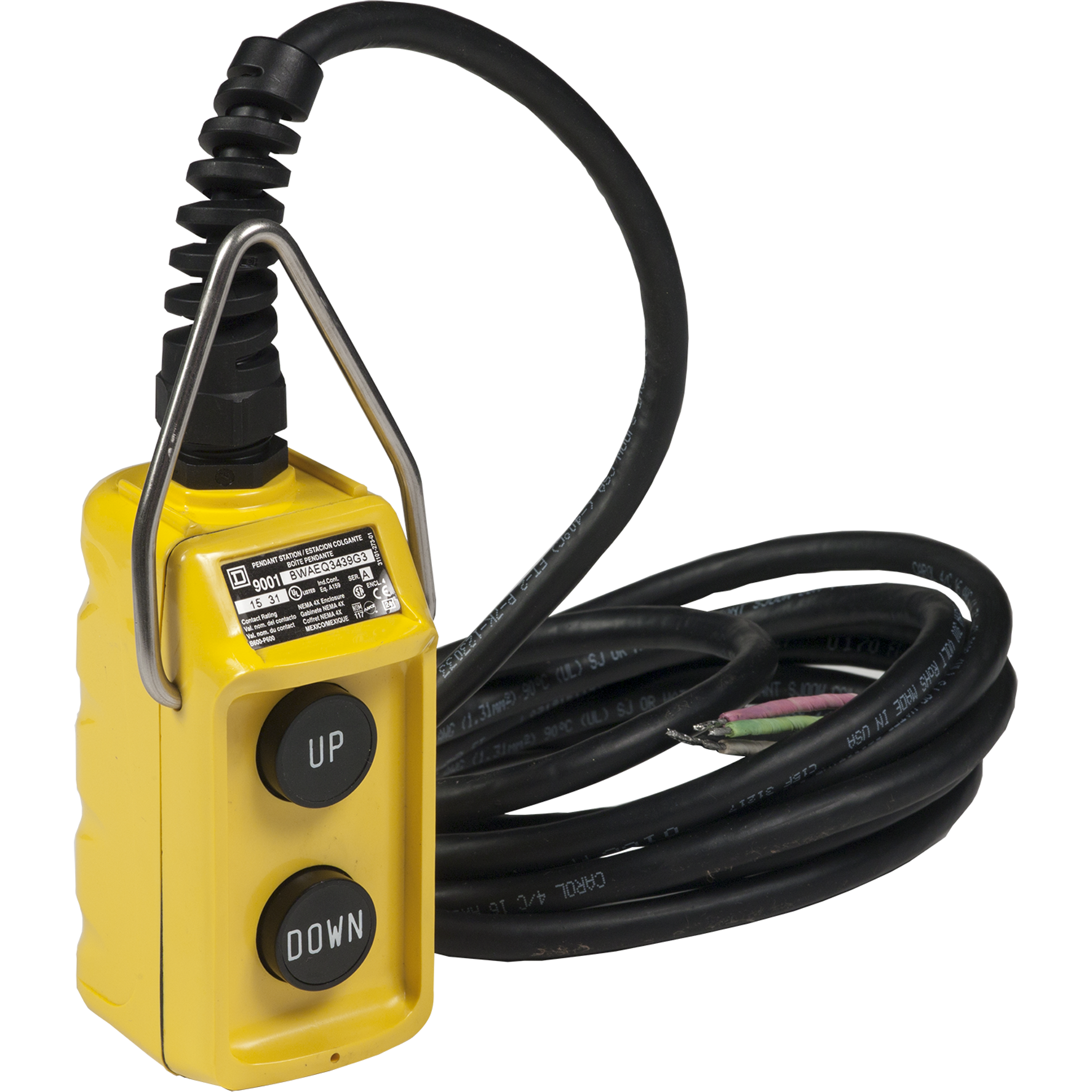

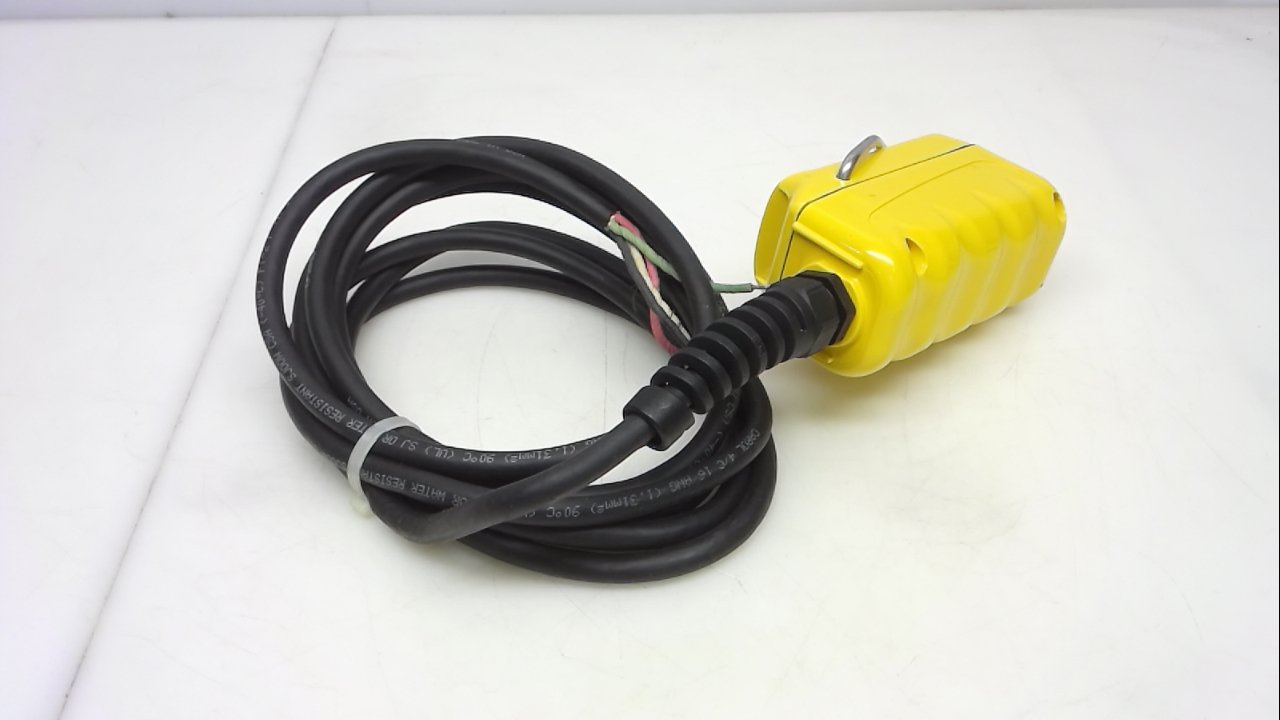

Square D 9001BWAEQ3439G3 Pendant Station 600 VAC 5 Amp

Product Description

The Square D 9001BWAEQ3439G3 pendant station is rated for 600VAC and 5A. This pendant station is designed for momentary and maintained contact. It features a high-impact thermoplastic enclosure with self-extinguishing flammability and is suitable for various applications requiring pendant control.

• Rated for 600VAC and 5A
• Features momentary and maintained contact
• NEMA 1, 3, 3R, 4, 4X, & 13 ratings

Product Highlights

The Square D 9001BWAEQ3439G3 pendant station offers robust control in demanding environments.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9001BWAEQ3439G3
• Country of Origin: Mexico

Technical Specifications

• Brand: Square D
• Manufacturer: Square-D / Schneider
• Catalog Number: 9001BWAEQ3439G3
• Product Name: Square D 9001BWAEQ3439G3 600 VAC 5 Amp Pendant Station
• Product ID: 941535
• Cooper Electric Part Number: 941535
• GTiN: 00785901325284
• Product UPC: 78590132528
• 12-Digit UPC: 785901325284
• UPC: 785901325284
• Model / MPN: 9001BWAEQ3439G3
• Number of Items: 1.0
• Material: Plastic
• Number of Buttons: 2
• Numeric ID: 4079255
• Series: 9001B
• Type: Type BW Special
• UPC Code: 785901325284
• Operation Method: Up/Down
• ECCN: EAR99
• REACh free of SVHC: Yes
• RoHS Compliant: Yes
• Alternate Catalog Number: 9001BWAEQ3439G3
• Amperage Rating: 5 A
• ARRA Compliant: N
• Buy American Compliant: N
• Contact Configuration: 1NO-1NC
• NEMA Rating: NEMA 1/3/3R/4/4X
• Operating Temperature: -13 to 140 °F
• Operator Type: Momentary
• UNSPSC: 39121561
• Voltage Rating: 600 VAC
