Square D 9001BW241 Control Station 5 Amp 600 Volt Type B

Product Description

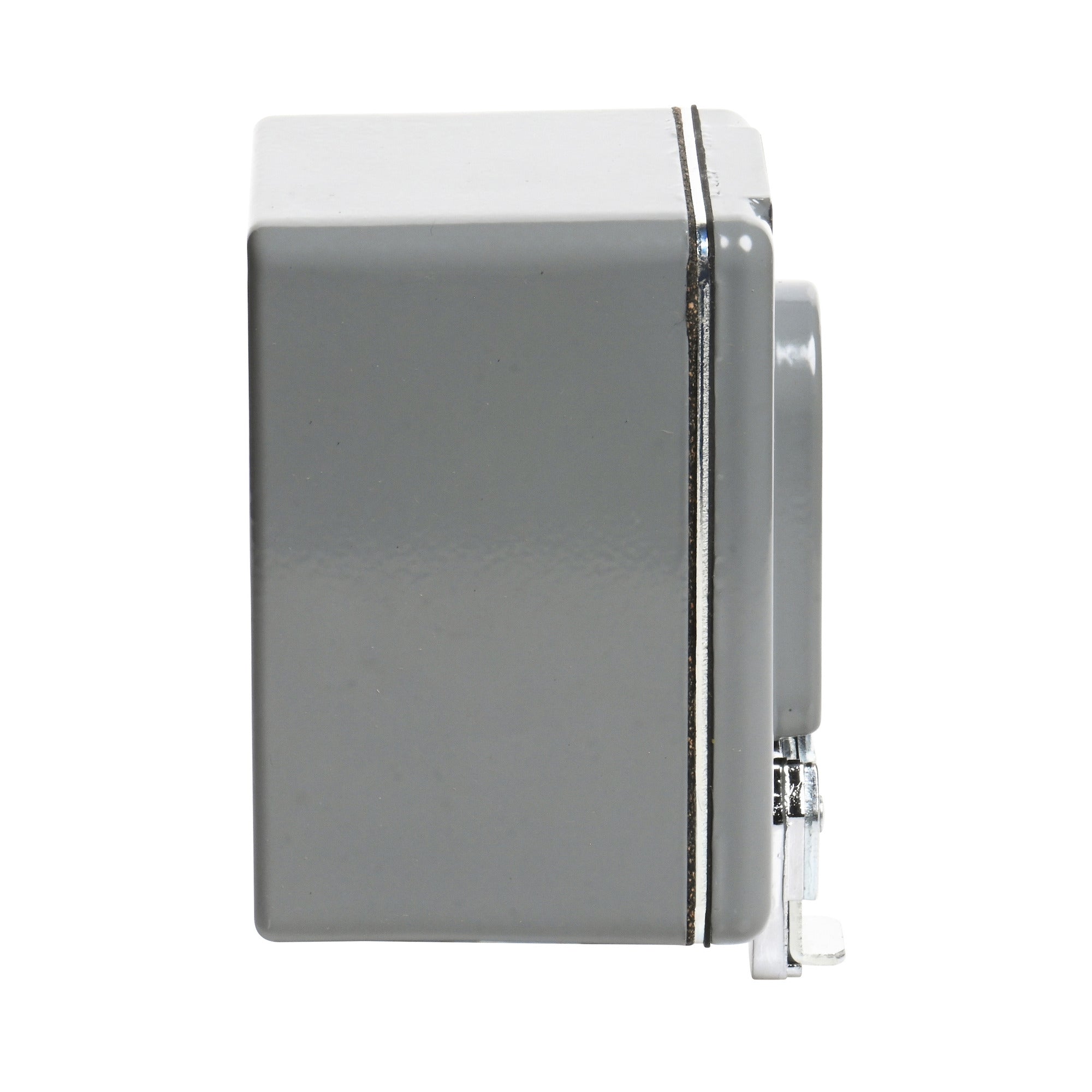

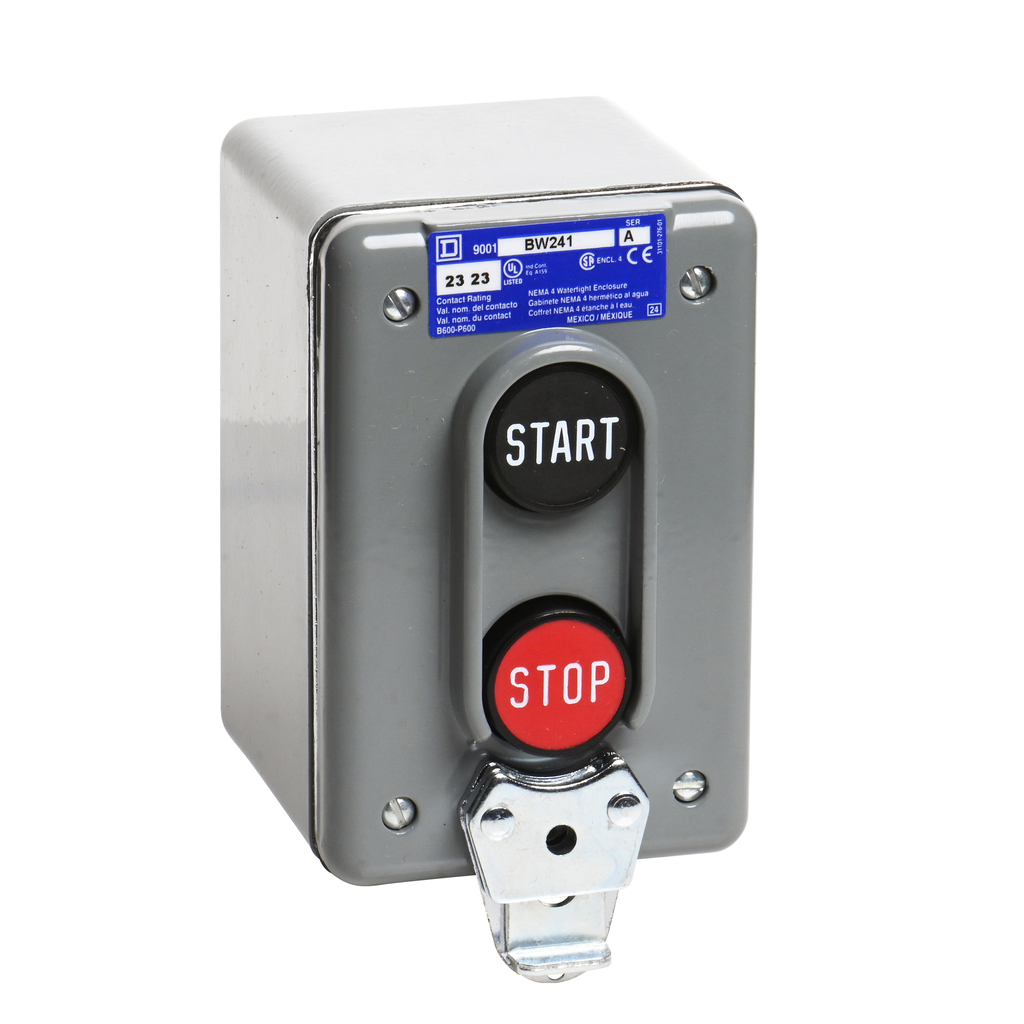

The Square D 9001BW241 control station is designed for standard duty use in control applications. It is complete with enclosure, operators, and contacts. This unit features two round momentary push buttons: a START button with a normally open contact and a STOP button with a normally closed contact. The STOP button includes a lockout feature. This control station is surface mounted and rated for NEMA 4, ensuring it is watertight and dusttight. It is suitable for various types of control circuits.

• NEMA 4 watertight and dusttight design
• UL listed and CSA certified
• Classic screw clamp terminal connections

Product Highlights

Ideal for indoor and outdoor use, this control station is versatile and reliable for controlling motors and other devices in industrial environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9001BW241
• Voltage: 600 Volt
• Amperage: 5 Amp
• Enclosure: NEMA 4
• Control Type: 1 NO + 1 NC
• Country of Origin: Mexico
• Warranty Length: 18 months
• Environmental Conditions: Indoor/outdoor
