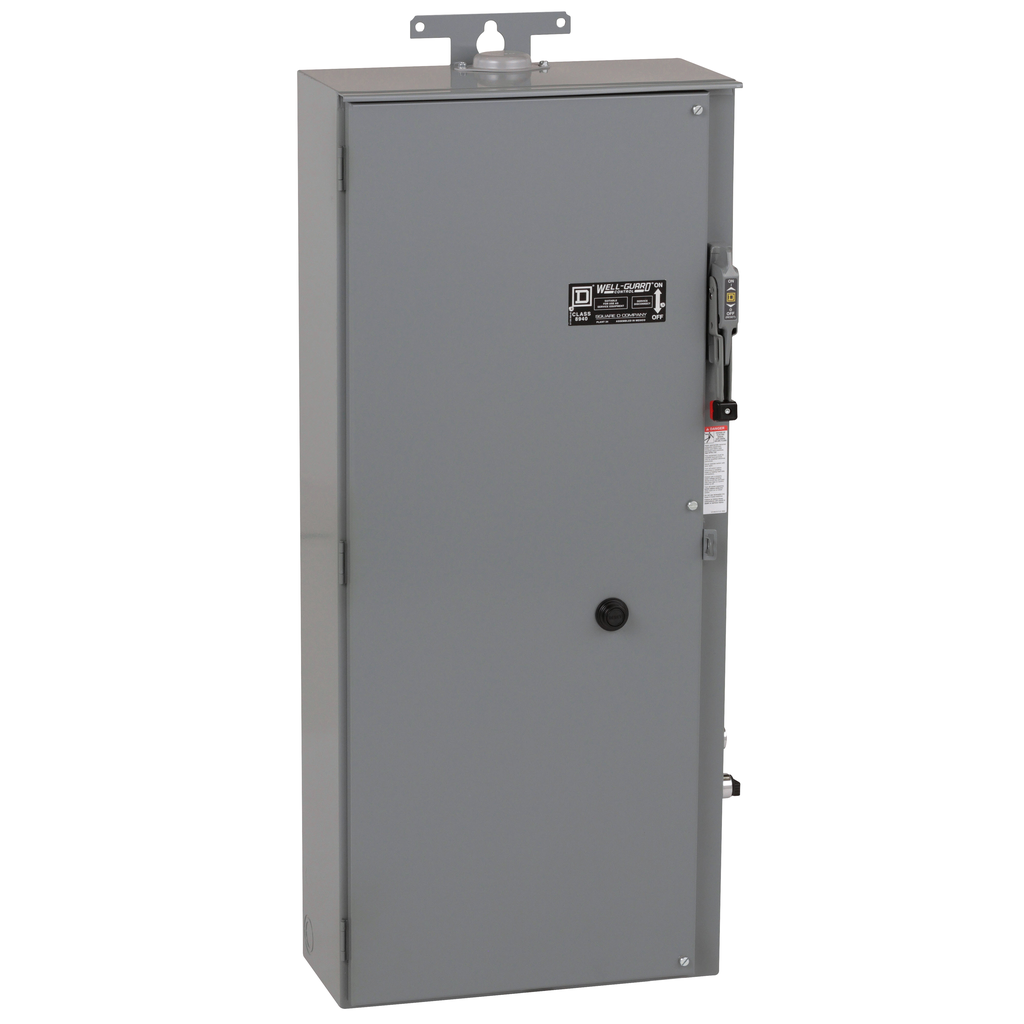

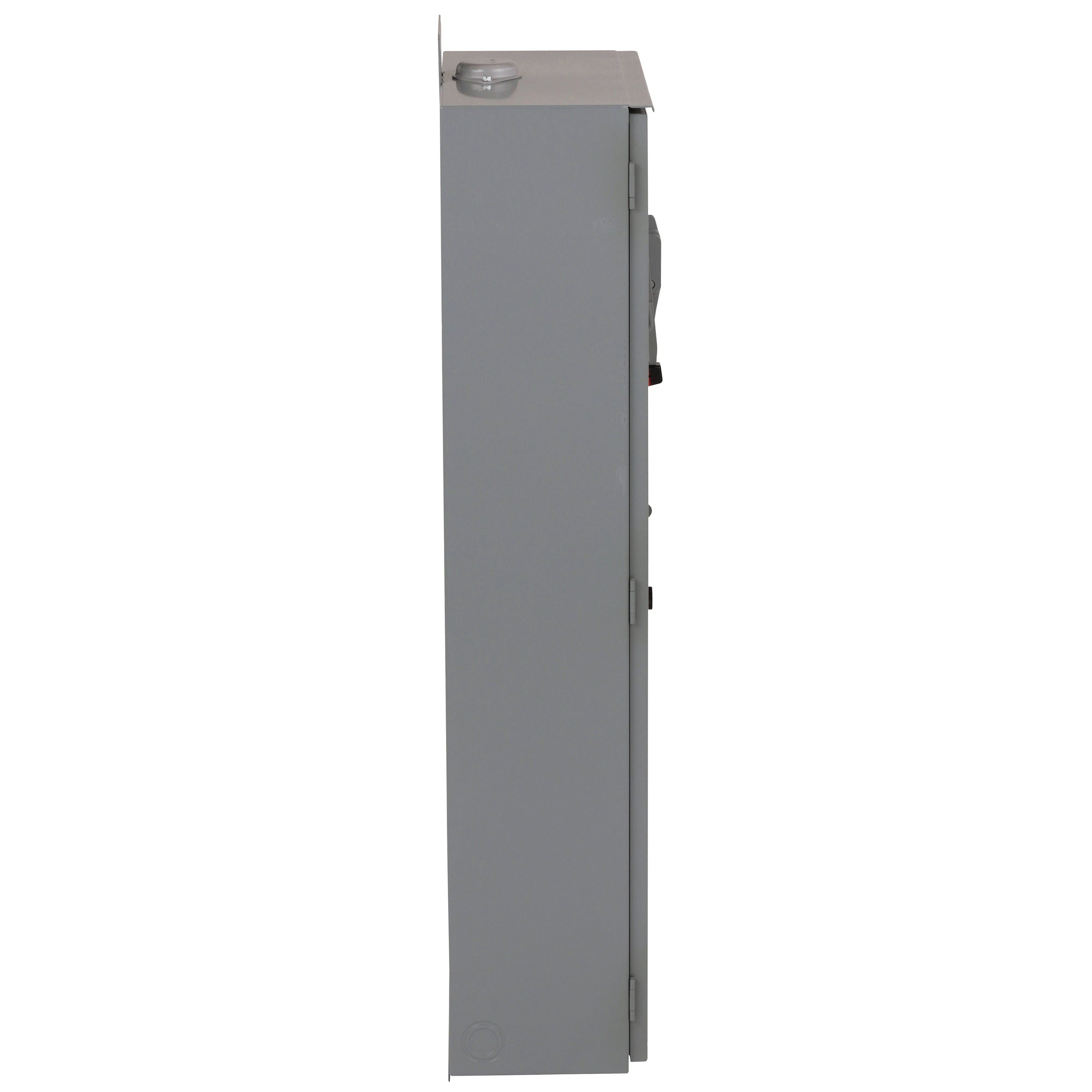

Square D 8940SSE4050 Pump Panel 440/480 VAC 90 Amp 50 HP NEMA 3R

Product Description

Square D 8940SSE4050 is a pump panel designed for pumping applications. This model offers additional space for field installation of auxiliary equipment and uses Type S non-reversing magnetic starters. The panel includes a fusible disconnect switch rated at 100 Amps for Class H or K fuses.

• 90 Amp 3-Pole NEMA Size 3 non-reversing starter with a maximum rating of 50 HP.
• Motor Logic overload relay with a sensing range of 30 to 90 Amps.
• NEMA 3R rainproof enclosure designed to protect the starter.

Product Highlights

This pump panel is equipped with a START momentary push button and a HAND/OFF/AUTO selector switch. It is UL listed and CSA certified for service equipment use.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8940SSE4050
• Voltage: 480 VAC
• Amperage: 90 Amps
• Enclosure: NEMA 3R
• Number of Poles: 3
• Dimensions: 49 inches tall, 19.15 inches wide, 10.37 inches deep
• Country of Origin: Mexico
• Warranty Length: 18 months
