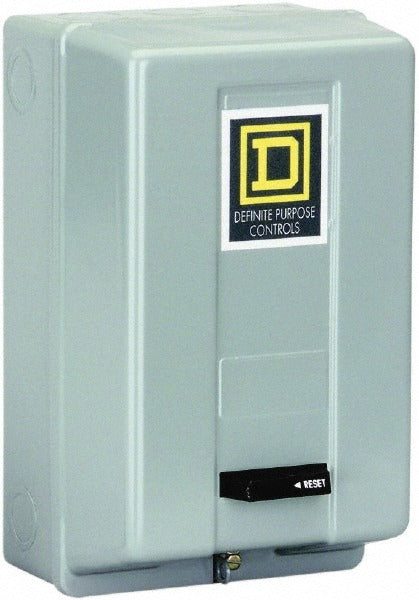

Square D 8911DPSG33V09 Definite Purpose Contactor 3P 30A

Product Description

The SQUARE D 8911DPSG33V09 is a 3-pole definite purpose contactor rated for 30 amps of inductive load. It is designed for use in motor control and load-switching applications across HVAC, refrigeration, and light commercial equipment. The coil operates at 208 to 240 volts AC at 60 Hz and 220 volts AC at 50 Hz, making it suitable for both domestic and international equipment configurations. It ships in an enclosed NEMA 1 enclosure. Licensed electricians and HVAC technicians install this contactor as part of compressor circuits, fan motor circuits, and other definite purpose motor loads requiring reliable switching performance.

This contactor is suited for single-phase and three-phase motor applications. Rated horsepower capacities include 2 HP at 115 volts AC, 5 HP at 230 volts AC, 10 HP at 230 volts AC, 15 HP at 460 volts AC, and 20 HP at 575 volts AC. It is commonly installed in commercial HVAC systems, condensing units, chillers, and refrigeration compressor panels where a robust definite purpose switching device is required.

Key Features

• 3-pole configuration handles three-phase and single-phase motor loads
• 30-amp inductive load rating for demanding motor circuits
• Dual-frequency coil rated at 208-240 volts AC at 60 Hz and 220 volts AC at 50 Hz
• Enclosed NEMA 1 construction provides basic protection for indoor installations
• Multi-voltage horsepower ratings from 2 HP at 115 volts AC up to 20 HP at 575 volts AC

Compatibility

Designed as an OEM-style definite purpose contactor replacement for three-phase HVAC, refrigeration, and light commercial motor control applications requiring a 3-pole, 30-amp, 208-240 volt coil contactor in a NEMA 1 enclosed package.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before removing the existing contactor or making any wiring connections. Verify coil voltage matches the control circuit voltage before energizing. NEMA 1 enclosures are rated for indoor use only and should not be installed in wet or outdoor locations without additional protection.
