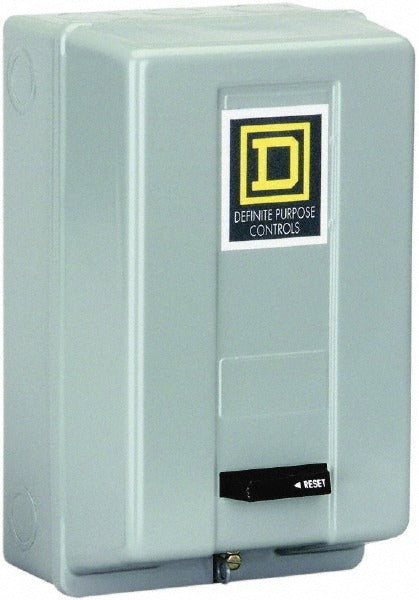

Square D 8911DPSG32V09 Definite Purpose Contactor 2P 30A

Product Description

The SQUARE D 8911DPSG32V09 is a 2-pole definite purpose contactor rated for 30 amps of inductive load. It is designed for single-phase motor and load control applications in HVAC, refrigeration, and light commercial electrical systems. The coil operates at 208 to 240 volts AC at 60 Hz and 220 volts AC at 50 Hz, making it compatible with standard North American and international supply voltages. The unit ships in an enclosed NEMA 1 enclosure, suitable for indoor installations. Licensed electricians and HVAC-R technicians are the primary installers of this contactor in equipment control panels and disconnect enclosures.

This contactor is well-suited for definite purpose applications including compressor control, condenser fan motor switching, and general load switching in residential and light commercial HVAC equipment. Single-phase horsepower ratings are 2 HP at 115 volts AC and 5 HP at 230 volts AC, covering a broad range of typical fractional and integral motor loads found in packaged rooftop units, split systems, and refrigeration equipment. The NEMA 1 enclosed housing makes it appropriate for indoor panel or cabinet mounting where protection from incidental contact is required.

Key Features

• 2-pole configuration for single-phase load switching up to 30 amps inductive
• Coil rated at 208-240 volts AC at 60 Hz and 220 volts AC at 50 Hz
• Single-phase motor ratings: 2 HP at 115 volts AC, 5 HP at 230 volts AC
• NEMA 1 enclosed enclosure for indoor installations
• Meets NEMA standards for definite purpose contactor applications

Compatibility

Designed as an OEM-style replacement definite purpose contactor for single-phase HVAC, refrigeration, and light commercial electrical control applications requiring a 2-pole, 30-amp, 208-240 volt coil contactor in a NEMA 1 enclosed package.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC-R technician in accordance with the NEC and applicable local codes. Disconnect and lock out all power to the equipment before removing the existing contactor or making any wiring connections. Verify coil voltage and pole rating match the application requirements before energizing. Ensure the enclosure mounting orientation and available clearances conform to the manufacturer guidelines and panel requirements.
