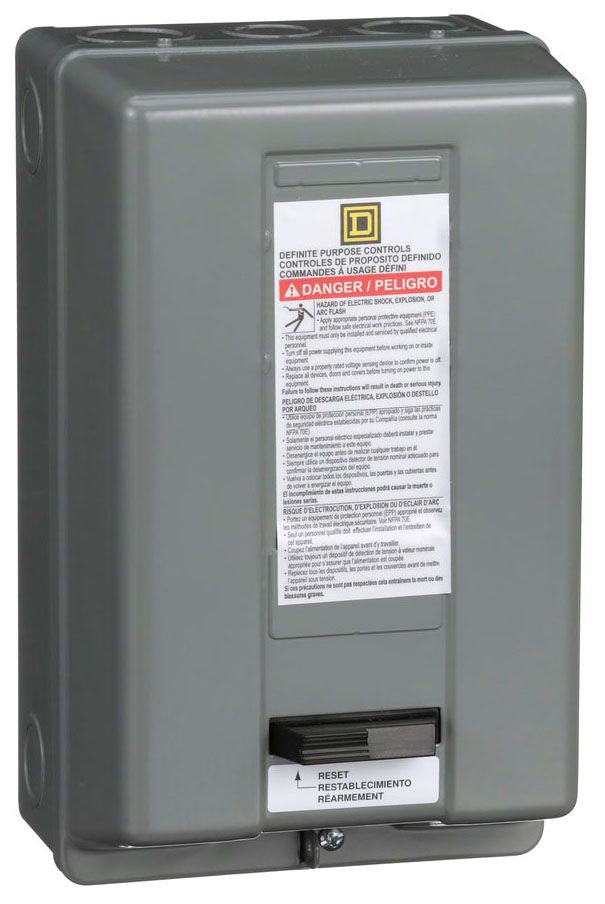

Square D 8911DPSG23V09 Starter Motor Control 1000Vac

Product Description

Square D 8911DPSG23V09 is a reliable starter motor control suitable for various applications. This component supports a power rating of up to 25 Amperes and operates at voltages of two hundred and twenty VAC at fifty Hertz, along with two hundred and eight to two hundred and forty VAC at sixty Hertz.

• Magnetic Starter Type
• NEMA 1 Enclosure
• Separate Control Type

Product Highlights

Effective for controlling motors in air compressors, pumps, and HVAC equipment.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590102468

Technical Specifications

• Coil Voltage: 220 VAC at 50 Hz, 208 to 240 VAC at 60 Hz
• Enclosure Type: NEMA 1
• Phase: 3
• Overloads: Melting Alloy
• Application: Air Compressors, Agricultural Equipment, Pumps
• Full Technical Description: Magnetic Type; NEMA Construction Standard; 25 Ampere Motor FLA; 2 HP at 115 VAC 1-Phase, 5 HP at 230 VAC 1-Phase, 10 HP at 230 VAC 3-Phase, 15/20 HP at 460/575 VAC 3-Phase
