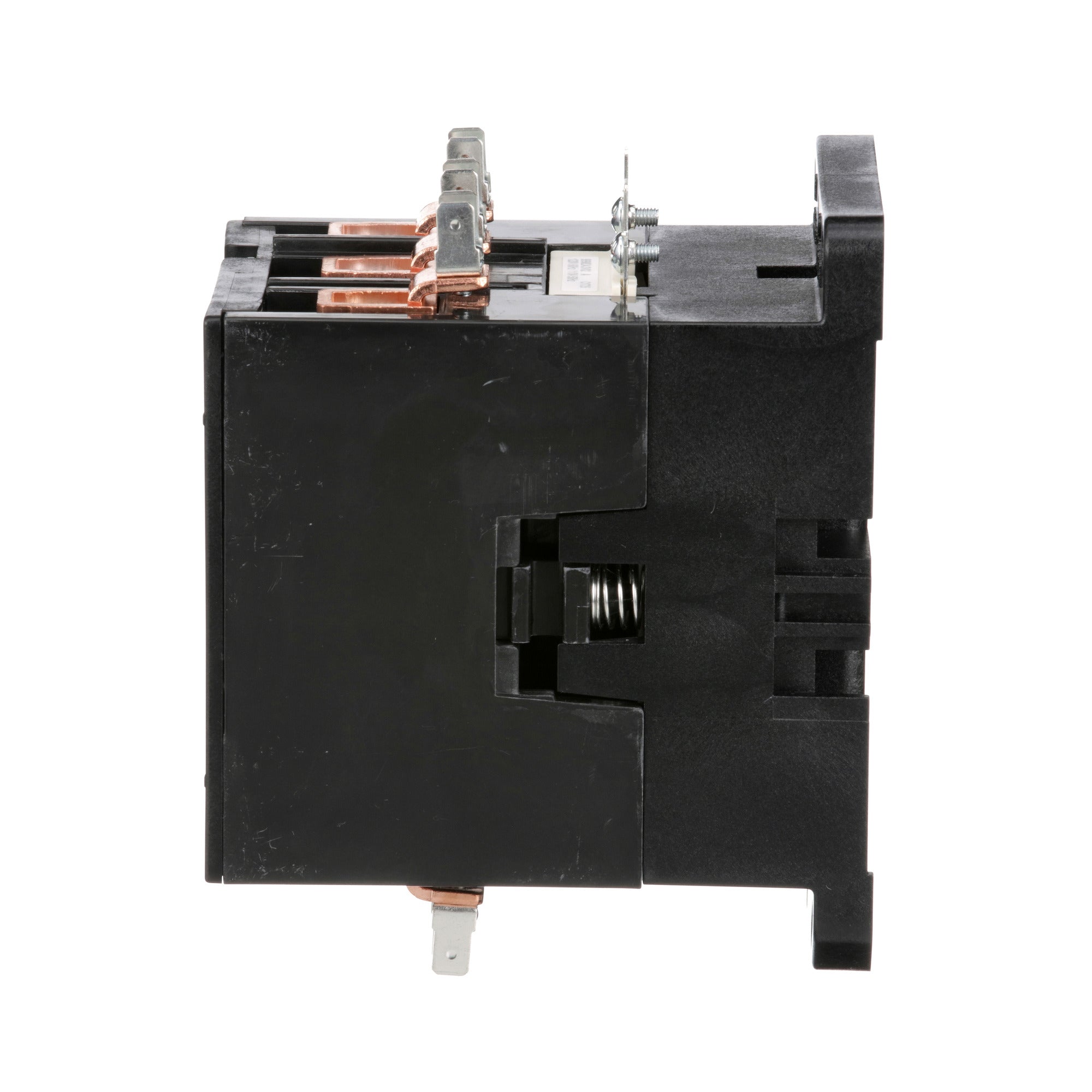

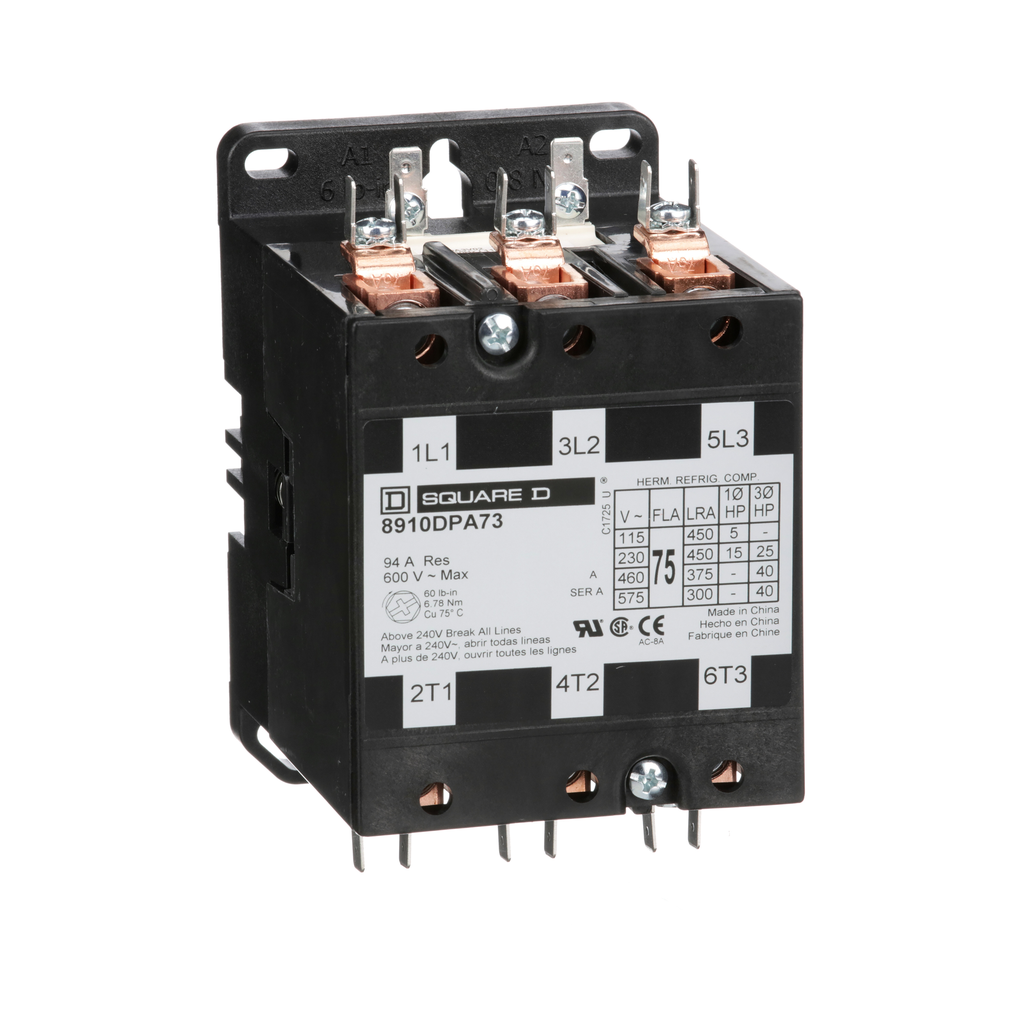

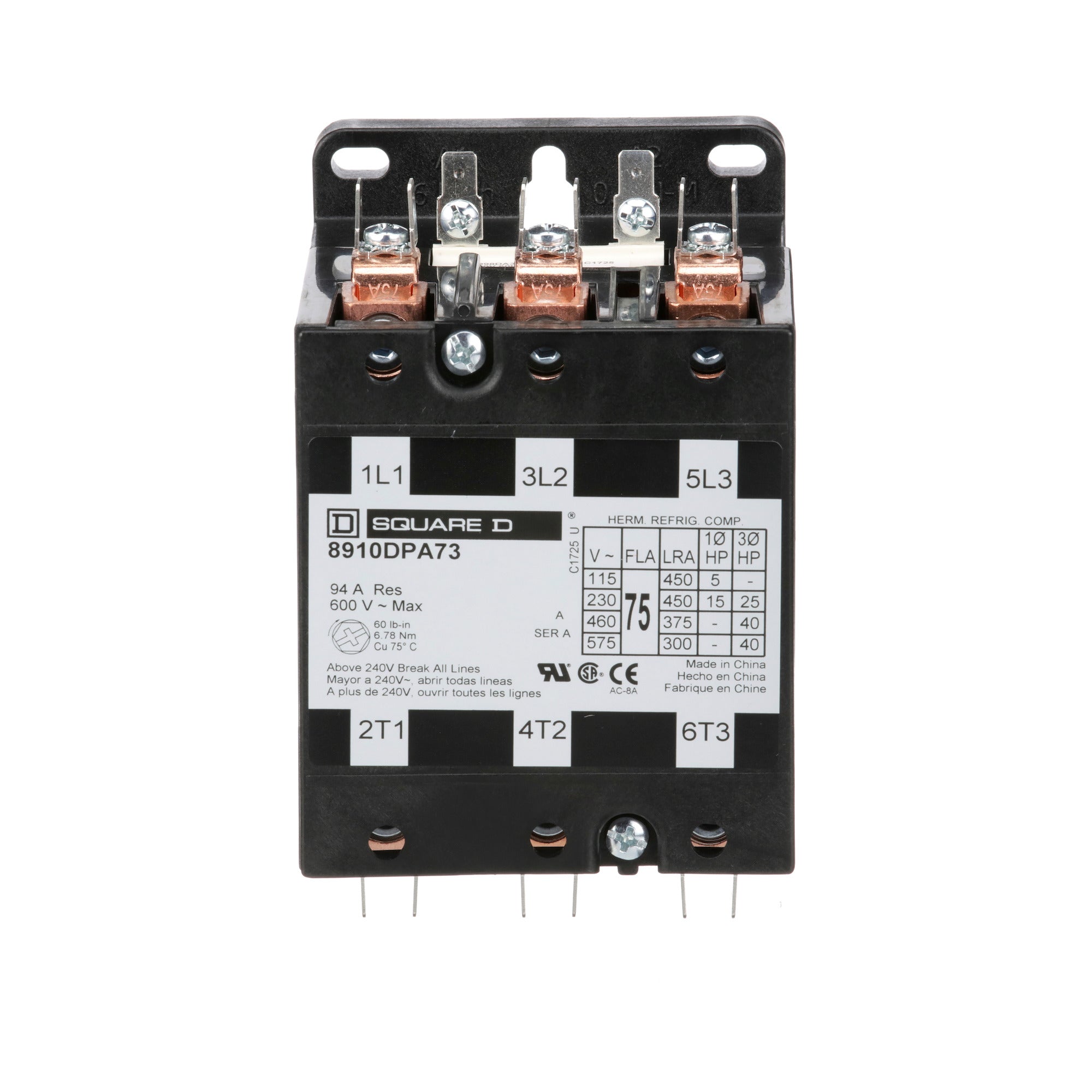

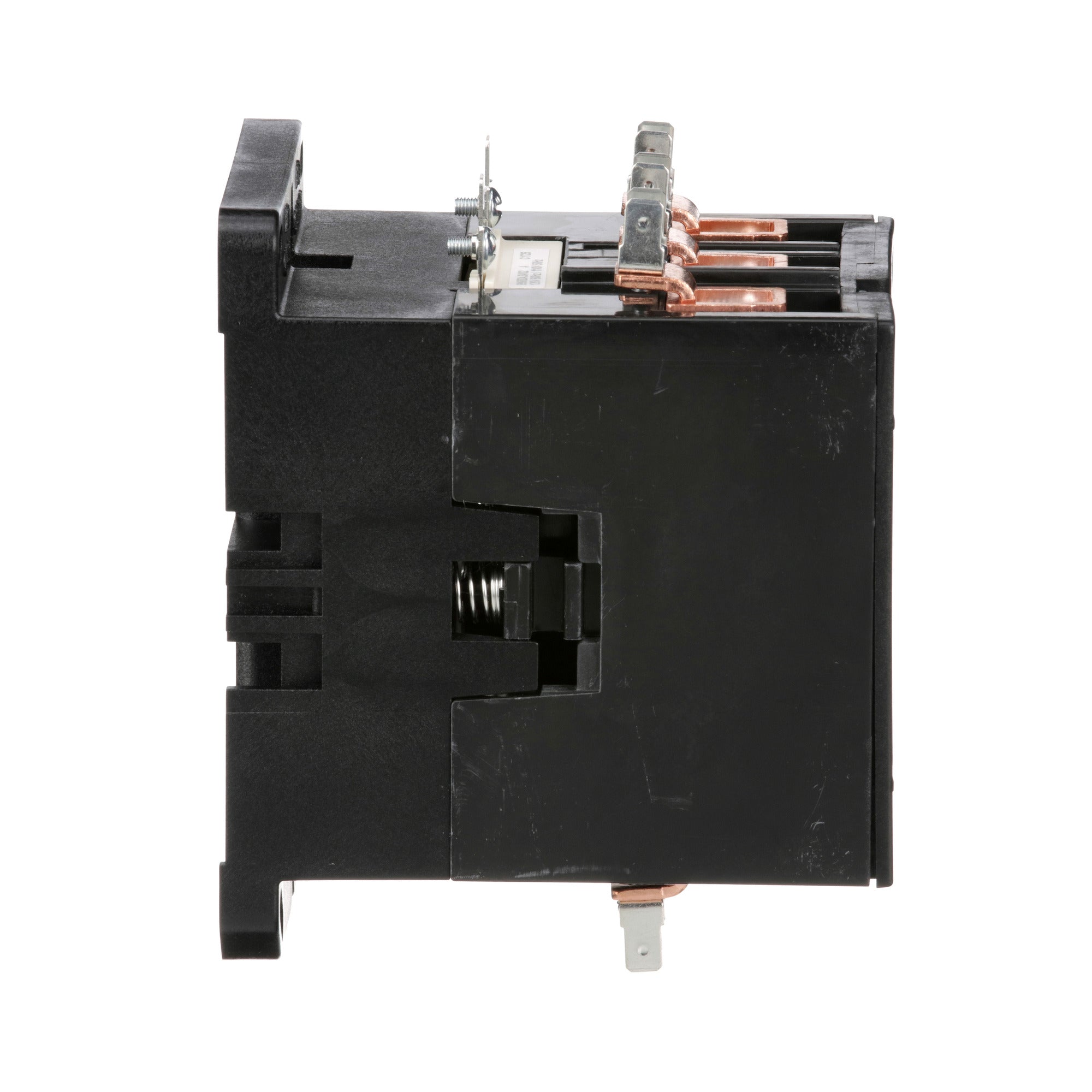

Square D 8910DPA73V02 110/120 VAC 75 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Product Description

The Square D 8910DPA73V02 is a 110/120 VAC definite purpose contactor, designed for heating, air conditioning, and refrigeration. This unit supports current ratings up to 120 amperes and 50 HP at 600 VAC. It features a three-pole configuration, rated at 75 amperes for full-load, and has a resistive rating of 94 amperes. It can handle up to 5 HP at 115 VAC single phase, 15 HP at 230 VAC single phase, and 25 HP at 230 VAC three phase. Furthermore, it supports up to 40 HP at 460 VAC three phase and 40 HP at 575 VAC three phase. The non-replaceable coil is fitted for multiple coil voltages, specifically 110/120 VAC at 50/60 Hz.

• High current capacity for HVAC applications
• Three-pole design with versatile use cases
• Meets UL and CSA standards for safety and reliability

Product Highlights

Square D's 8910DPA73V02 provides robust control for motors and compressors in various systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 8910DPA73V02
• Voltage: 600 Volt
• Amperage: 75 Amp
• Number of Poles: 3 Pole
• Coil Voltage: 120 VAC 60 Hz - 110 VAC 50 Hz
• Country of Origin: Mexico
• Size: 5.20 inches x 3.39 inches x 4.76 inches
• Certification: UL recognized, CSA certified
