Product Description

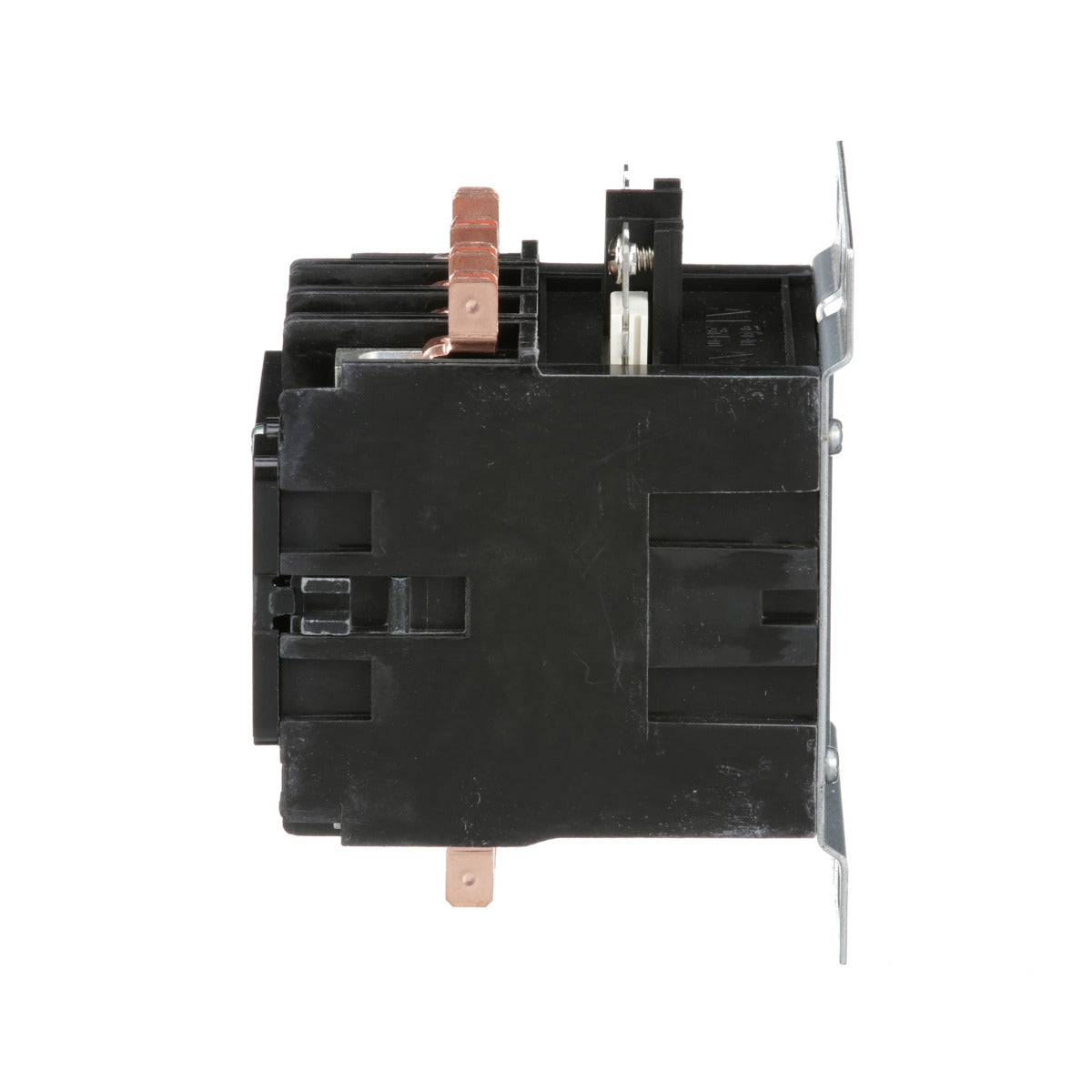

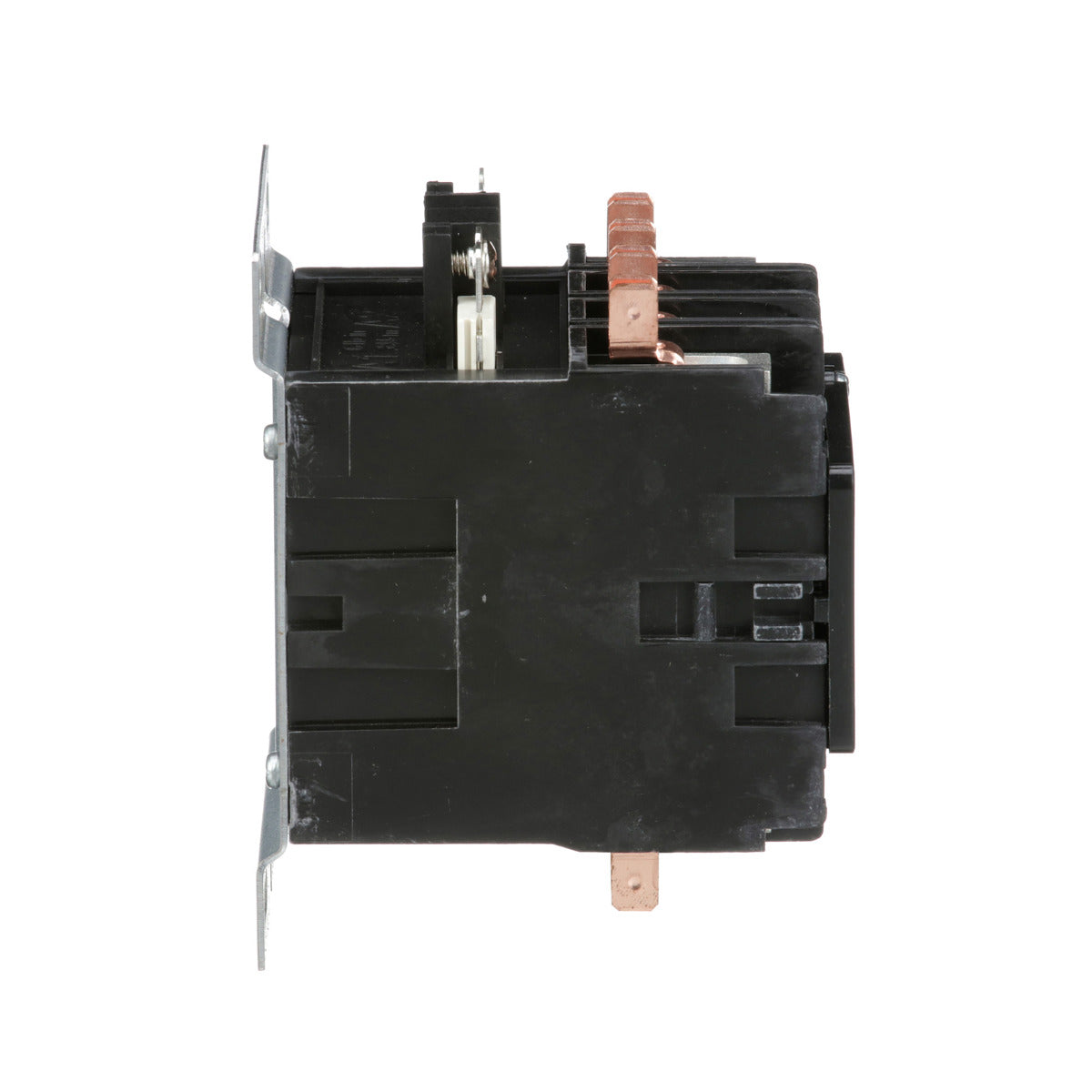

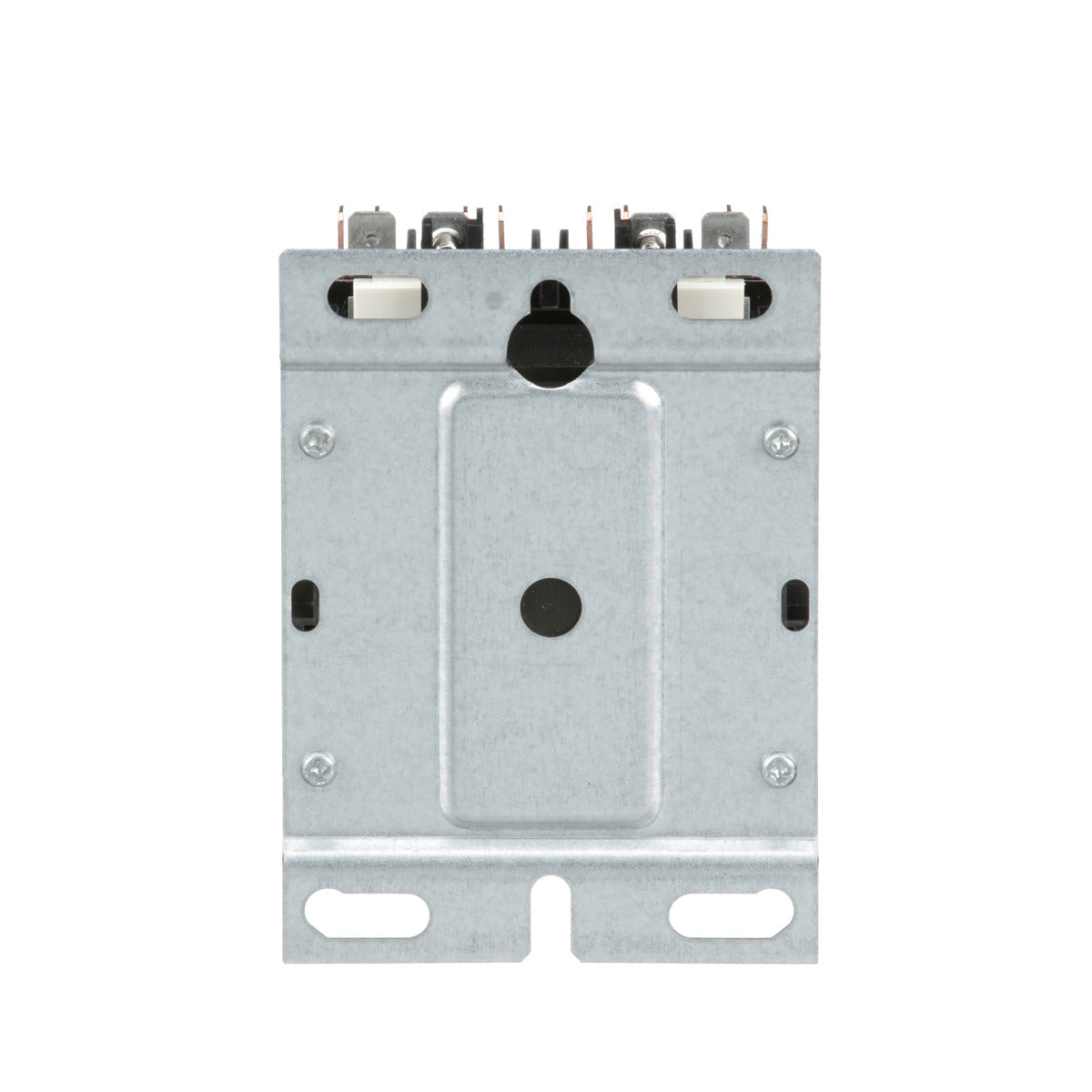

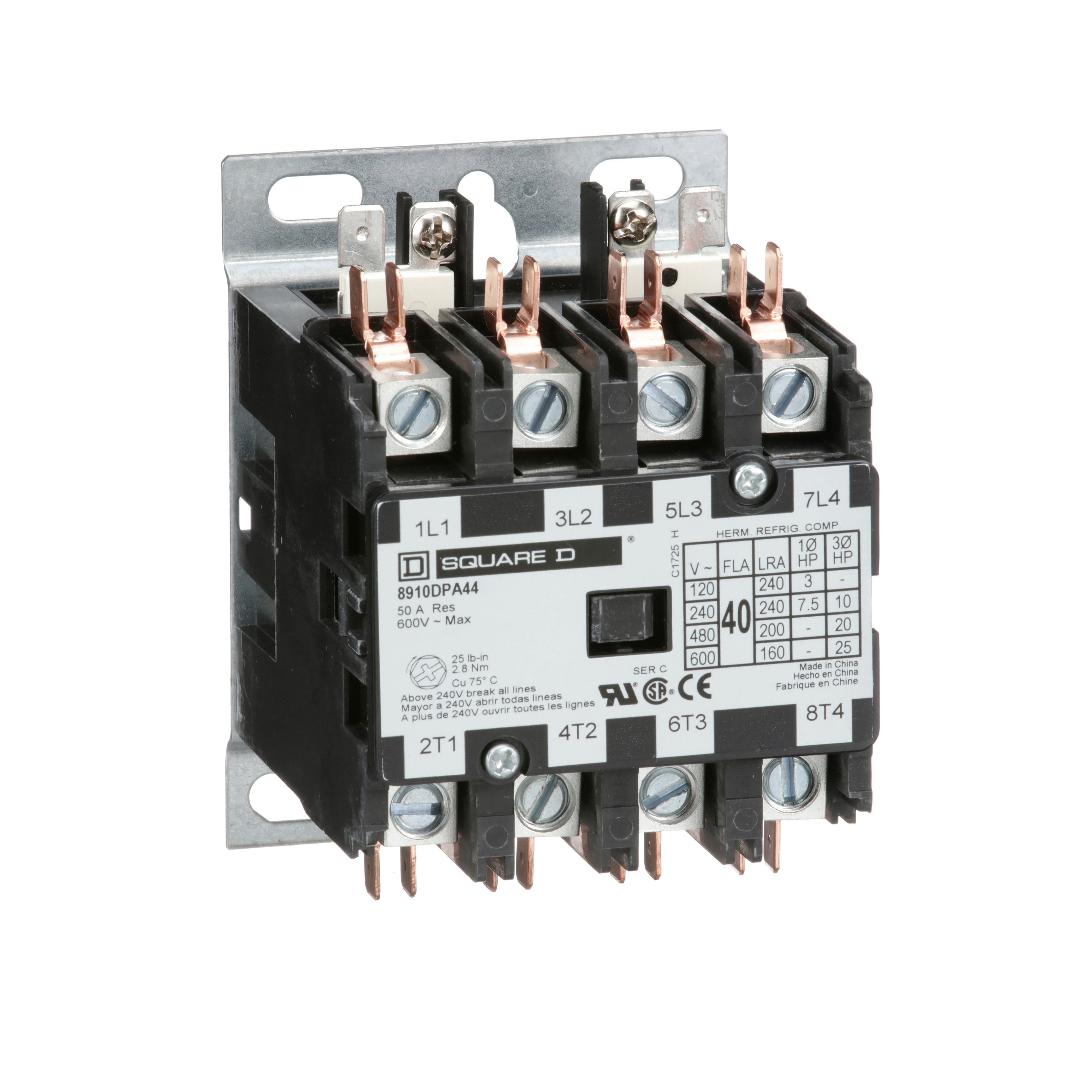

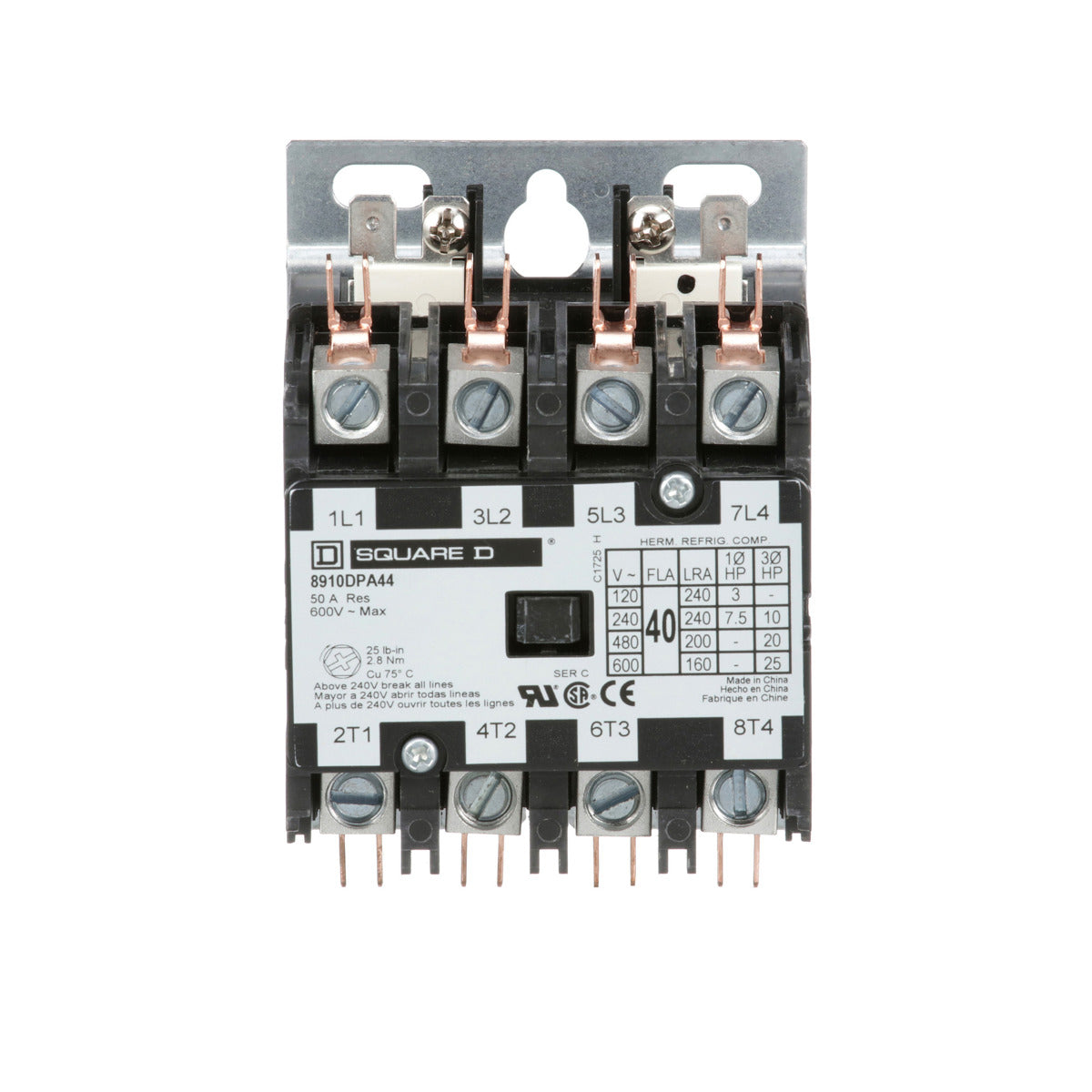

The Square D 8910DPA44V04 definite purpose magnetic contactors are designed for heating, air conditioning, and refrigeration applications. This four pole contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It has a 277 VAC 50/60 Hz coil and straight through wiring. These contactors are UL component recognized and CSA certified.
- Designed for heating, air conditioning and refrigeration applications
- Current ratings up to 120 amperes resistive and 50 HP at 600 VAC
- Full load rating of 40 ampere and a resistive rating of 50 amperes
Product Highlights
Ideal for heating, air conditioning, refrigeration, data processing and food service equipment.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8910DPA44V04
-
Country of Origin: China
Technical Specifications
-
Size: 4P
-
Type: 3-Phase Type DPA
-
Brand: Square D
-
Voltage: 600 Volt
-
Amperage: 40 Amp
-
Sub Brand: DPA
-
Product UPC: 78590134271
-
12-Digit UPC: 785901342717
-
Applications: IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
-
Coil Voltage: 277 V AC at 60 Hz
-
TC Connection: Box lugs;Quick connect terminals
-
Certifications: CSA,UL Recognized
-
Contact Rating: 40 A
-
Number of Poles: 4 Pole
-
Number of Phases: 3 Phase
-
Line Rated Current: 40 A
-
Contact Configuration: 4 NO
-
Manufacturer: Schneider Electric
-
UPC: 785901342717
-
Power Rating/Voltage: 3 HP at 115 VAC 1 Phase, 7-1/2 HP at 230 VAC 1 Phase, 10 HP at 230 VAC 3 Phase, 20/25 HP at 460/575 VAC 3 Phase
-
Resistive Ampere: 50 Ampere
-
Auxiliary Contact: 4NO
-
Enclosure: Open
-
Construction: Standard NEMA
-
Approval: UL, CSA, CE
-
Application: HVAC, Food and Beverage, Data Center
-
Locked Rotor Rating: 240 Ampere at 230 VAC, 200 Ampere at 460 VAC, 160 Ampere at 575 VAC
-
Part Number #: 8910DPA44V04
-
SKU #: 2393386
-
Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC
-
Operating Cycles: 500 cpm
-
Operating Temperature: 32 to 149 deg F
-
Series: 8910
-
Wattage: 2.2 kW at 115 V/5.5 kW at 230 V/7.5 kW at 230 V/15 kW at 460/575 V
-
Connection type: Binding Head Screw
-
UNSPSC: 39121529
-
Maximum Load Current: 40 A
-
Contact: 600 VAC
-
Pole: 4
-
Frequency: 50/60 Hz
-
Terminal: Quick-Connect Terminal
-
Mount: Panel Mount
-
ECCN: EAR99
-
3-Phase HP Rating (Max.): 25 HP
-
Rated Current: 40A
-
Rated Voltage: 575V ac
-
Phase: Three-Phase
