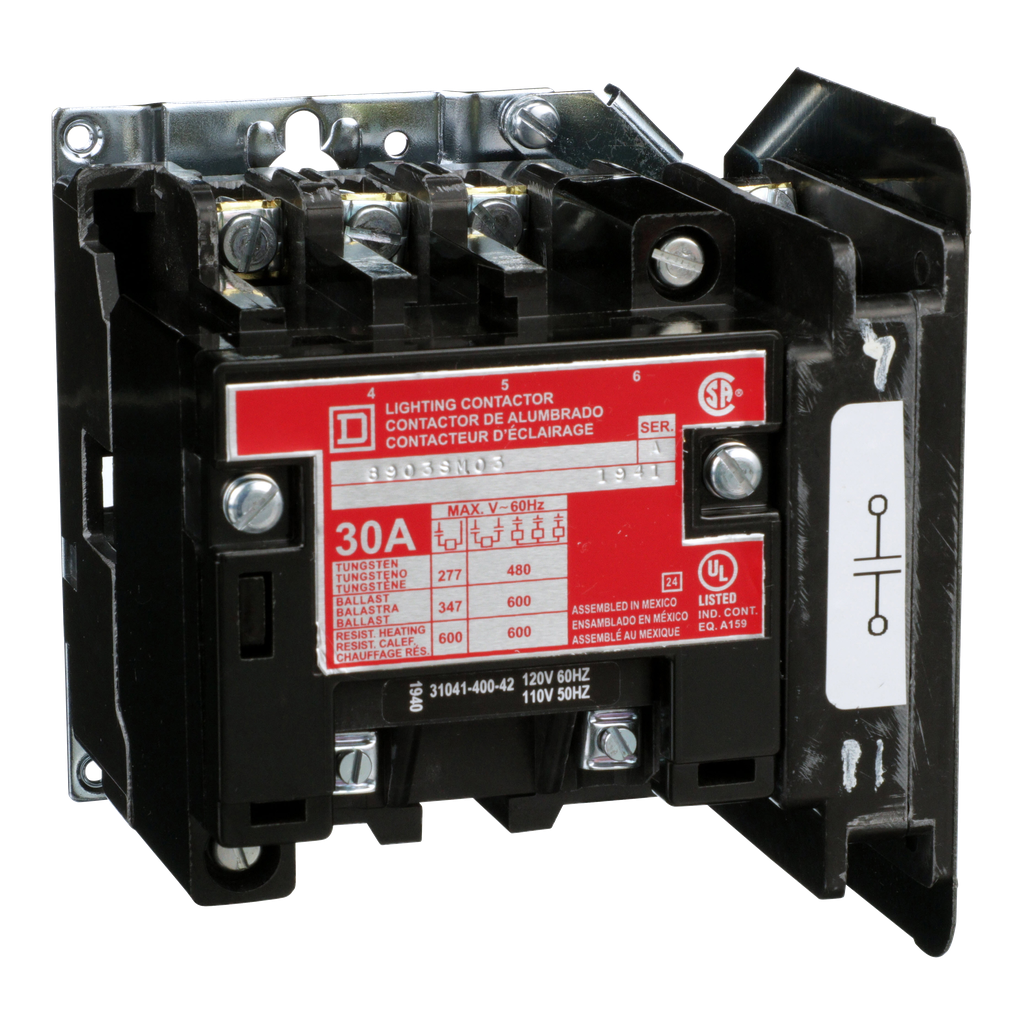

Square D 8903SMO3V02 110/120 VAC 30 Amp 4-Pole Open Type Electrically Held Lighting Contactor

Product Description

The Square D 8903SMO3V02 is an electrically held lighting contactor designed for lighting control applications. This contactor is rated for a maximum of thirty amperes and operates with a 110 to 120 volt alternating current. It features a four-pole configuration with four normally open contacts, making it suitable for a variety of lighting control tasks.

The device comes with a 110/120 VAC 50/60 Hz interchangeable operating coil, and other coil options are available for common voltages up to six hundred VAC. Its open design allows for easy access to components for maintenance. The contactor is compact, measuring three point five inches tall, four point twenty-five inches wide, and four point twenty-two inches deep, and is compliant with UL and CSA standards.

• Four-pole design with four normally open contacts
• Interchangeable operating coil rated for 110/120 VAC
• Compact dimensions for easy installation

Product Highlights

This product is ideal for trade professionals needing reliable lighting control solutions.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903SMO3V02
• Current Rating: 30 Amp
• Number of Poles: 4 Pole
• Coil Voltage: 120 VAC @ 60 Hz / 110 VAC @ 50 Hz
• Dimensions: 3.50 inches tall, 4.25 inches wide, 4.22 inches deep
• Country of Origin: Mexico
• Warranty Length: 18 months
• Certifications: UL Listed, CSA Certified
