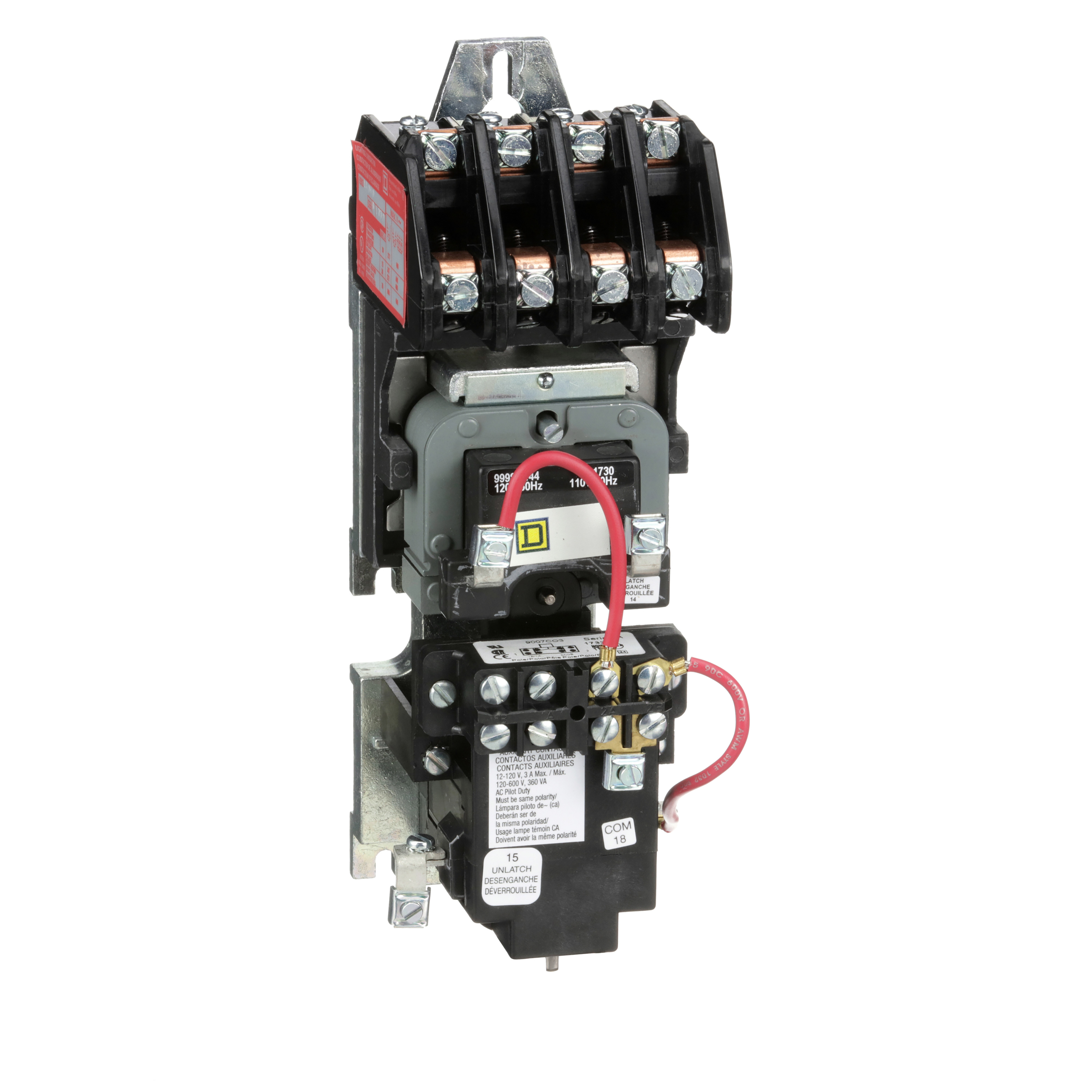

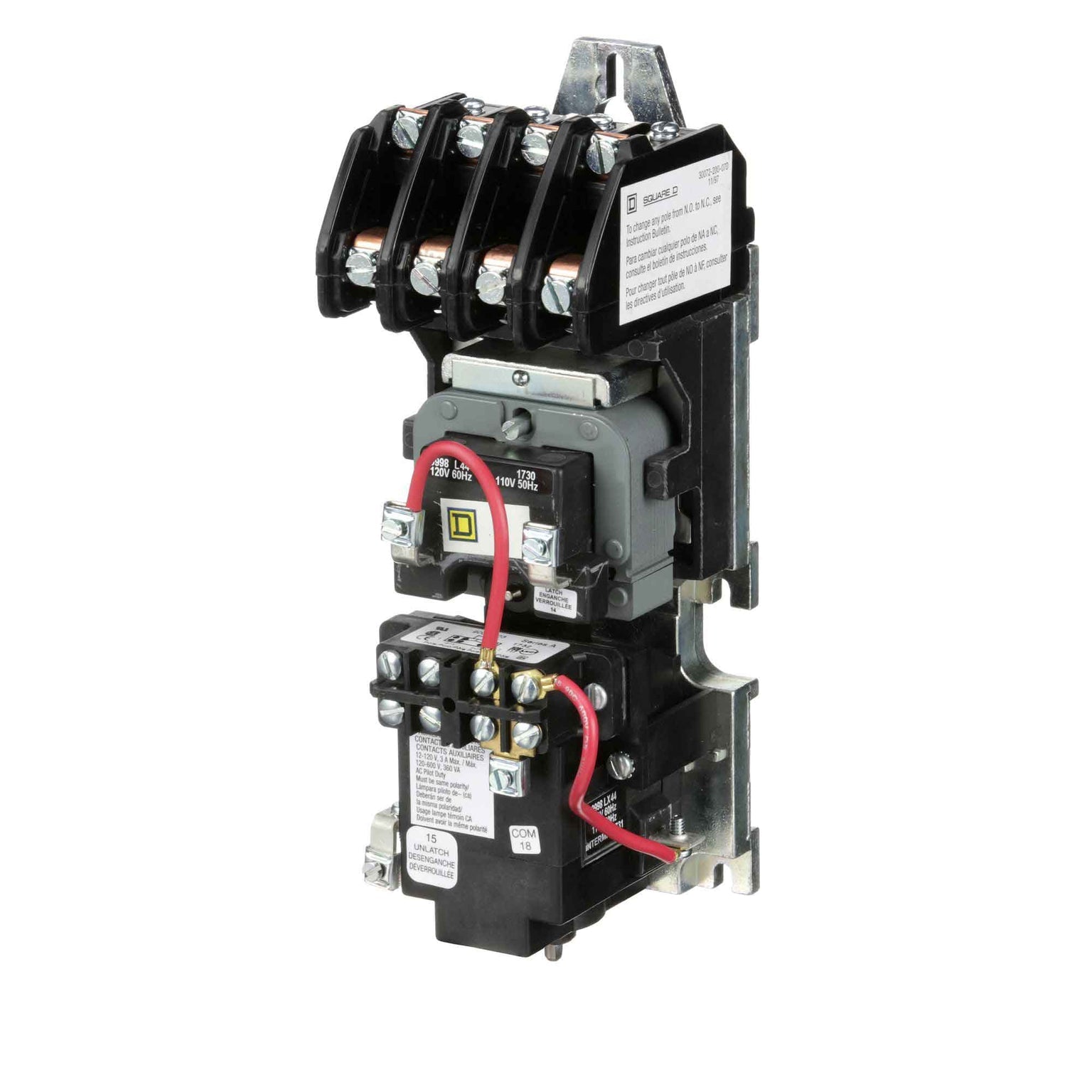

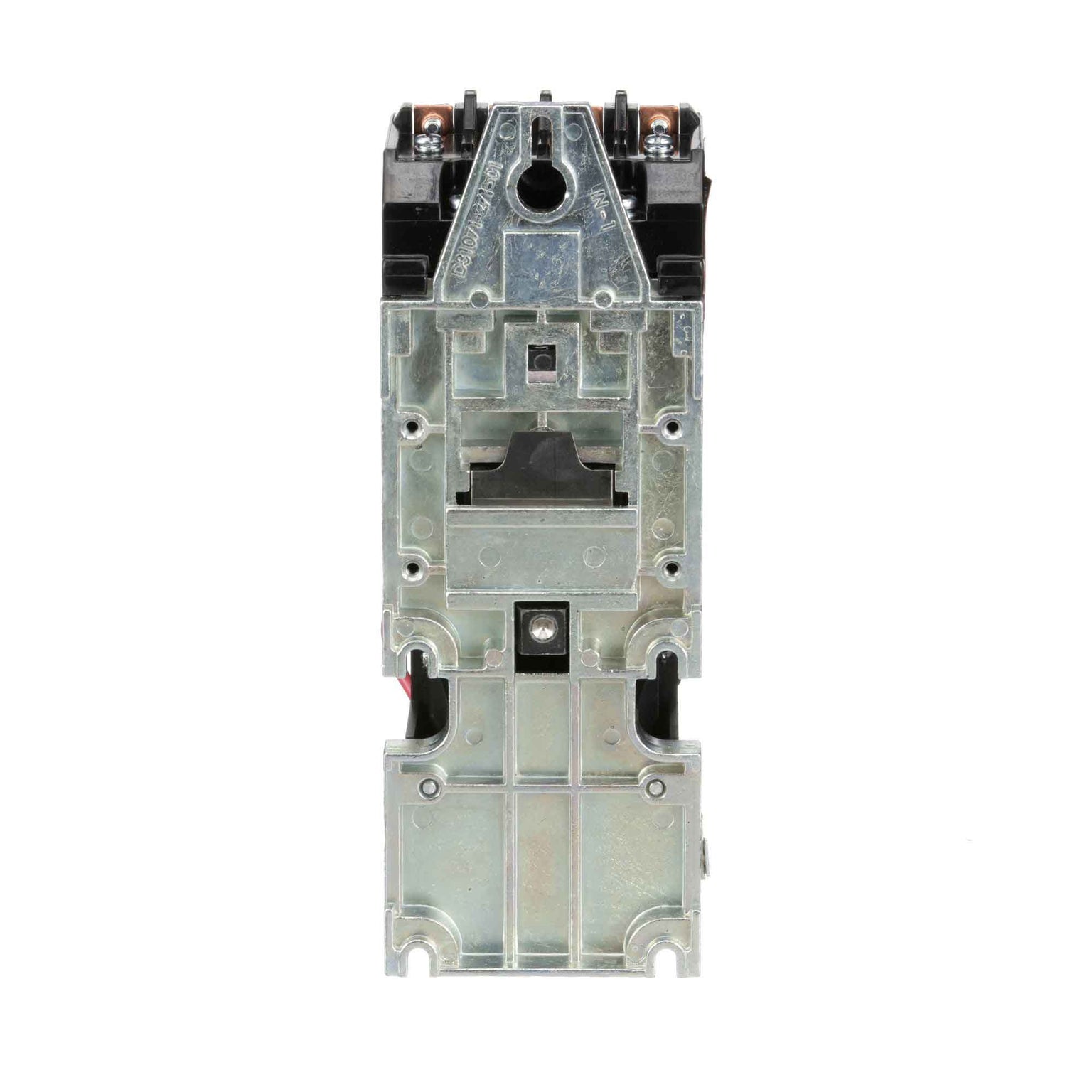

Square D 8903LXO40V02 Lighting Contactor 110/120 VAC 30 Amp 4-Pole 4NO Open Type

Product Description

The SQUARE D 8903LXO40V02 is a mechanically held multipole lighting contactor for lighting control applications. It switches up to 30A fluorescent and 20A tungsten lighting loads. This 4-pole device has 4 NO contacts and comes with two 110/120 VAC 50/60 Hz rated operating coils for latching and unlatching. The open-type contactor is UL Listed and CSA Certified.

• For 30A Fluorescent or 20A tungsten lighting loads
• Replaceable coil and contacts
• UL and CSA approvals

Product Highlights

Mechanically held lighting contactor with field-convertible contacts and replaceable components, suitable for lighting control in various applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8903LXO40V02
• Country of Origin: Mexico

Technical Specifications

• Type: Mechanically Held Lighting Contactor
• Brand: Square D
• Current: 20 Amp
• Sub Brand: 8903LX
• Applications: MECHANICALLY HELD
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• Certifications: CSA,UL Listed
• Contact Rating: 20-20 A TUNGSTEN-30-30 A FLUORESCENT
• Control Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
• Number of Poles: 4
• Line Rated Current: 20-20 A
• Contact Configuration: 4 NO
• Voltage Rating: 600 VAC
• Resistive Ampere: 30 Ampere (Fluorescent Lighting), 20 Ampere (Tungsten Lighting)
• Auxiliary Contact: 4NO
• Enclosure: Open
• Contact Type: Double Break Silver Cadmium Oxide
• Electrical Connection Type: Screw Clamp Terminal
• Amperage: 30
• Voltage: 600VAC
• Poles: 4
• Phase: 3
• Mounting Type: Surface
• Terminal Connection: Screw Clamp
• Standards: RoHS, REACh
• Action: Non-Reversing
• Coil Volts: 110/120VAC at 50/60Hz
• Mpn: 8903LXO40V02
• Rated Current: 30A
• Rated Voltage: 600V ac
• Frequency: 50/60 Hz
• Maximum Load Current: 30 A
• Connection: Screw Clamp
• Operating Cycles: 1000 cpm
• Operating: 0 to 40 deg C
• Maximum Amperage: 30A
• Full Load Amps: 30 A
• Control Circuit: Separate control circuit
• NEMA Enclosure Rating: No Enclosure
• Electrical Connections: Screw-clamp terminals
• Series: 8903 Series Type
• Main Pole Contact Form: 4NO
• Lighting Contactor Style: Mechanically Held Lighting Contactor
• Input Control for Mechanical Latching: 2-Wire
• Nominal Coil Voltage @ 60Hz: 120V AC
• Full Load Current - Inductive: 30 A
• Full Load Current - Resistive: 30 A
• Lighting Compatability: Flourescent Lighting; Incandescent Lighting; LED Lighting
• Fluorescent Lighting Current Rating: 30 A
• Incandescent Lighting Current Rating: 20 A
• LED Lighting Current Rating: 16 A
• Wire Termination Type: Screw Clamp
• Maximum Voltage Rating: 600V AC
• Frame Size: L
• Poles Description: 4P 4 NO
• Inrush Power In Va: 25-25 VA 60 Hz;150-150 VA 50 Hz;140-140 VA 50/60 Hz
• Additional Included Device: None
• Wattage: 6.9/7.9/13.1/15.9/19.9 kW
