Square D 8536SAG12V02S Type-S Non-Reversing Motor Starter 9A 3Pole 3Phase Melting Alloy 120VAC Coil NEMA-1

Product Description

The Square D 8536SAG12V02S is a Type-S non-reversing motor starter designed for starting and stopping AC squirrel cage motors. This motor starter supports full voltage with a current rating of nine amperes. The NEMA Size 00 starter is suitable for three-phase applications with ratings of 1.5 HP at two hundred twenty and two hundred thirty volts AC, and two HP at four hundred sixty and five hundred seventy-five volts AC.

This starter includes a melting alloy overload relay that utilizes Type B thermal units for sensing overcurrent conditions. It can achieve a maximum Short Circuit Current Rating (SCCR) of five kiloamperes when properly protected by a circuit breaker or fuse. The operating coil for this unit is rated for 110 to 120 volts at fifty or sixty hertz and is wired for separate control.

• Rated for six hundred volts maximum and up to eight hundred ten amperes.
• Provides overload protection and short-circuit protection.

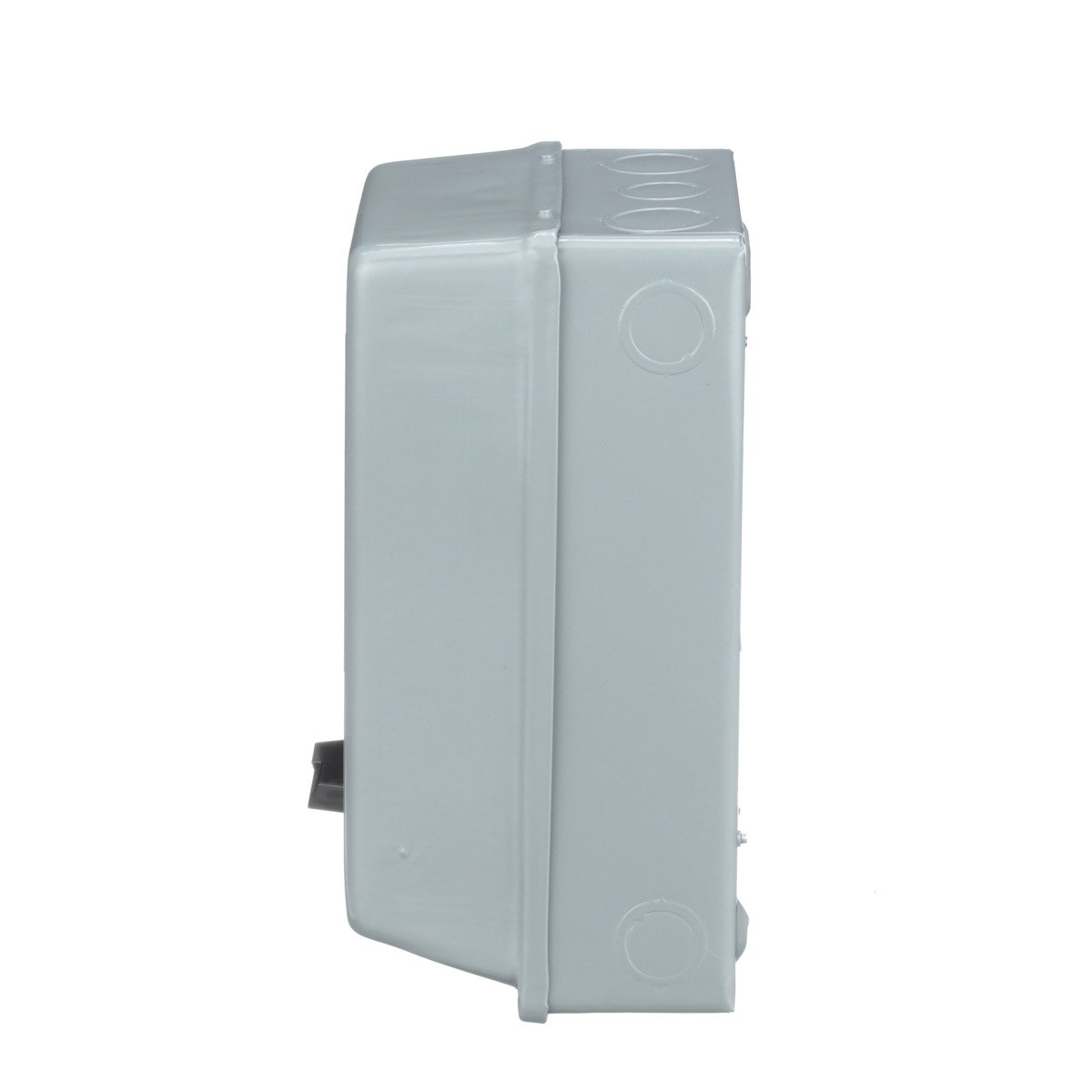

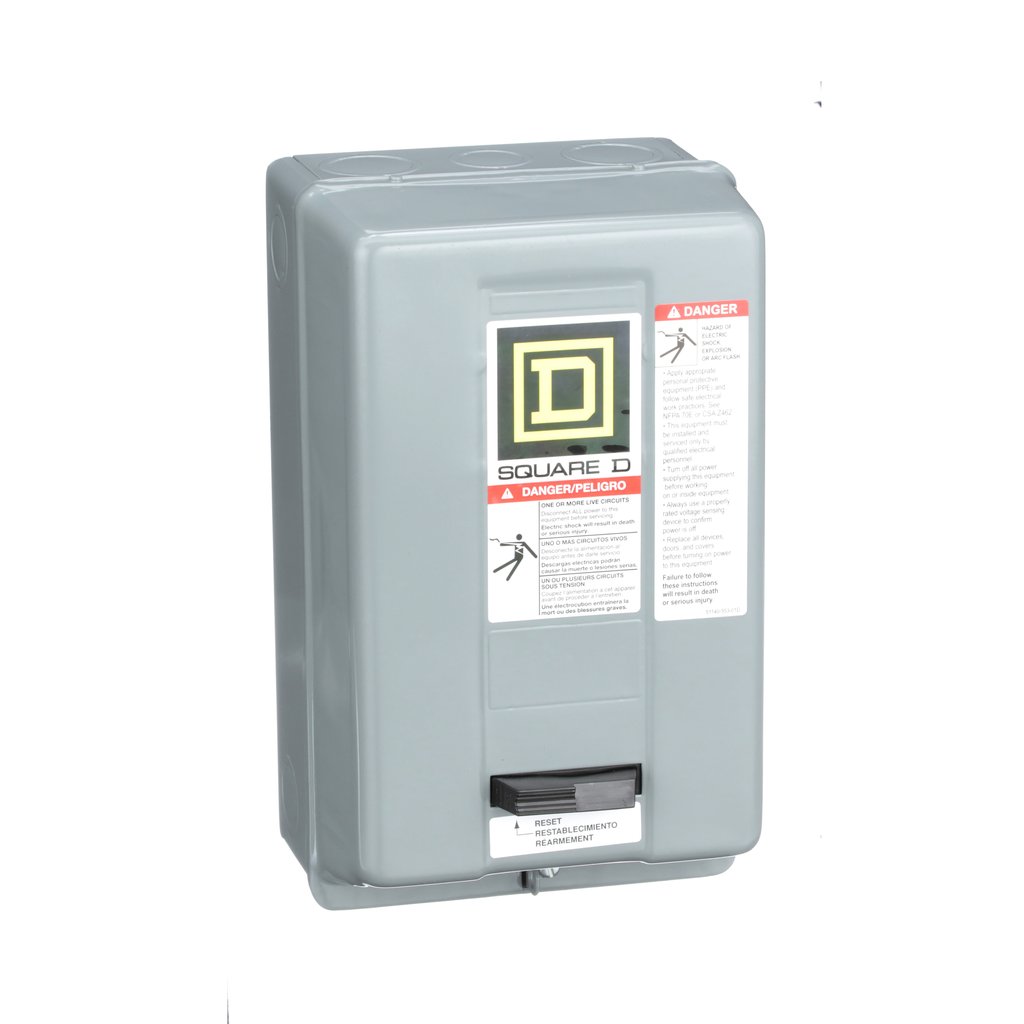

• Comes in a NEMA 1 enclosure made from painted sheet steel, dimensions are 10 inches in height, 6 inches in width, and 5.56 inches in depth.

Product Highlights

The Square D motor starter serves as a reliable means for controlling motor operations in industrial settings.

Product Information

Standard Information

• Catalog Number: 8536SAG12V02S
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Motor starter, no control units
• Voltage: 600 Volts
• Amperage: 9 Amps
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Thermal Overload Type: Melting alloy thermal relay
• Enclosure: NEMA 1 painted sheet steel
• Warranty Length: 18 months
