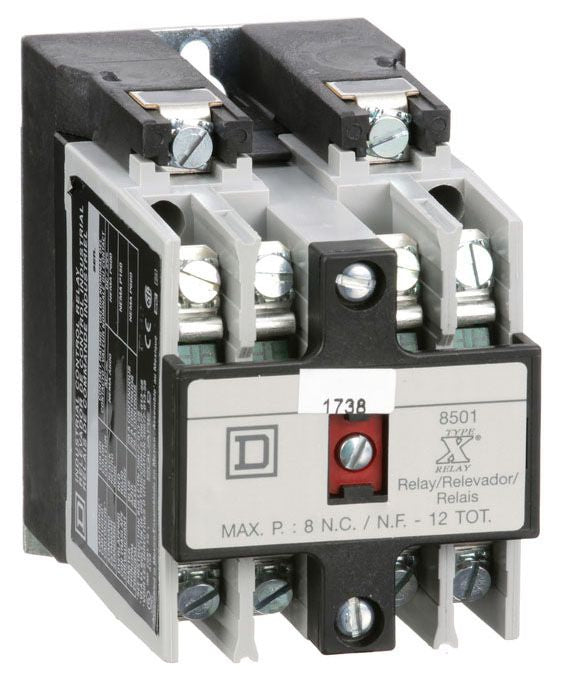

Square D 8501XO30V02 Relay 600Vac 10Amp Nema +Options

Product Description

The Square D 8501XO30V02 is a relay designed to operate at six hundred volts alternating current at ten amperes. This component is compatible with Nema options and is engineered for panel mounting.

• AC operated type with three normally open contacts.
• UL, CSA, and CE approved for safety and reliability.
• Self-lifting pressure wire terminal for easy installation.

Product Highlights

This relay features convertible plug-in contact type for flexible configurations. It is suitable for industrial and commercial applications where reliable performance is essential.

Product Information

Standard Information

• Manufacturer: Square D
• Brand: Square D Co.

Technical Specifications

• UPC: 78590100122
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• Contact Type: Convertible, Plug-In
• Terminal Type: Screw, Self Lifting Pressure Wire
• Mounting: Panel
• Approval: UL, CSA, CE
• Operating Temperature: -40 to 160 Deg F
• Overall Dimensions: 3.95 inches W x 2.23 inches D x 3.5 inches H
• Contact Configuration: 3NO
• Contact Current Rating: 10 Ampere at 600 VAC, 5 Ampere at 250 VDC
• Contact Voltage Rating: 600 VAC, 250 VDC
• Catalog Number: 8501XO30V02
