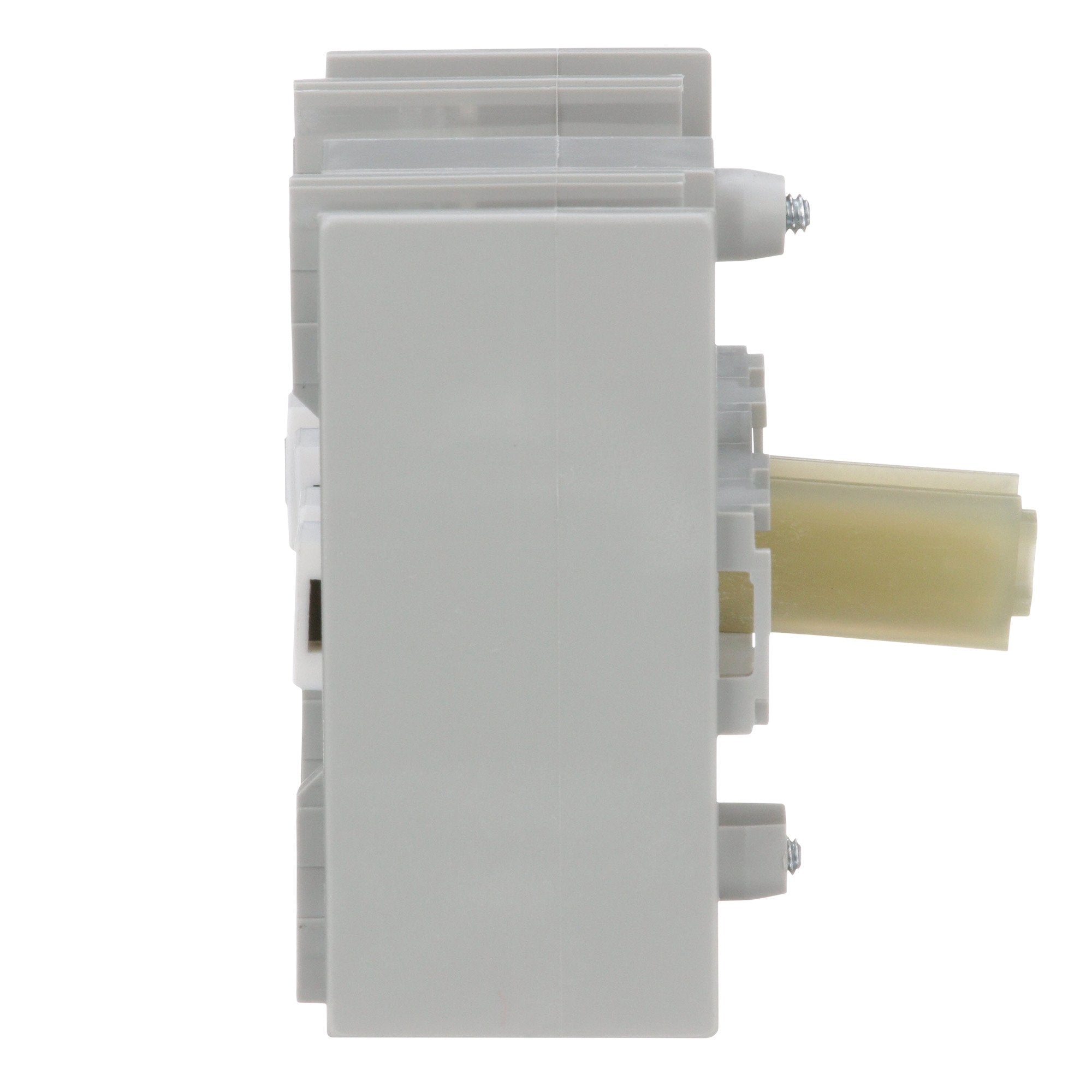

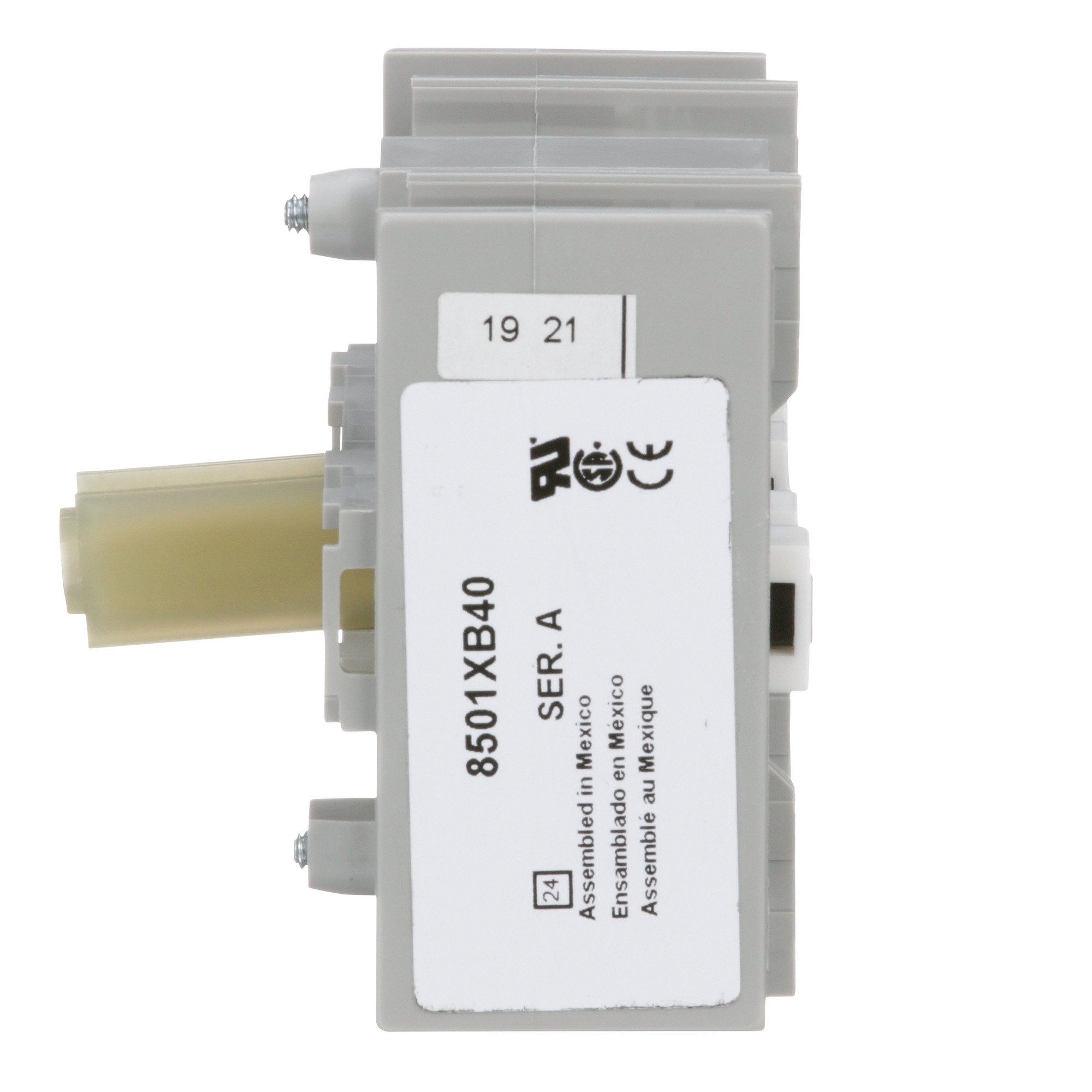

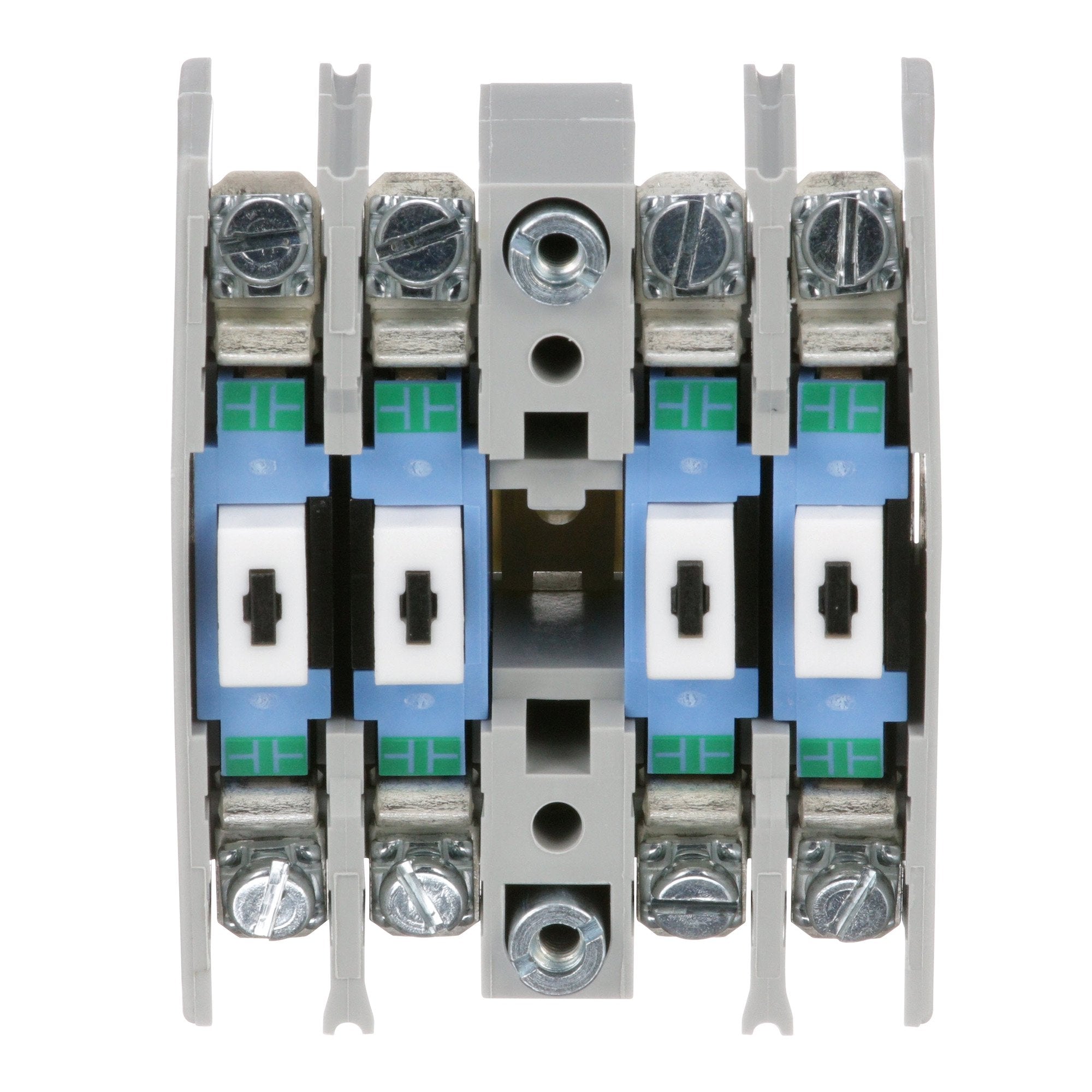

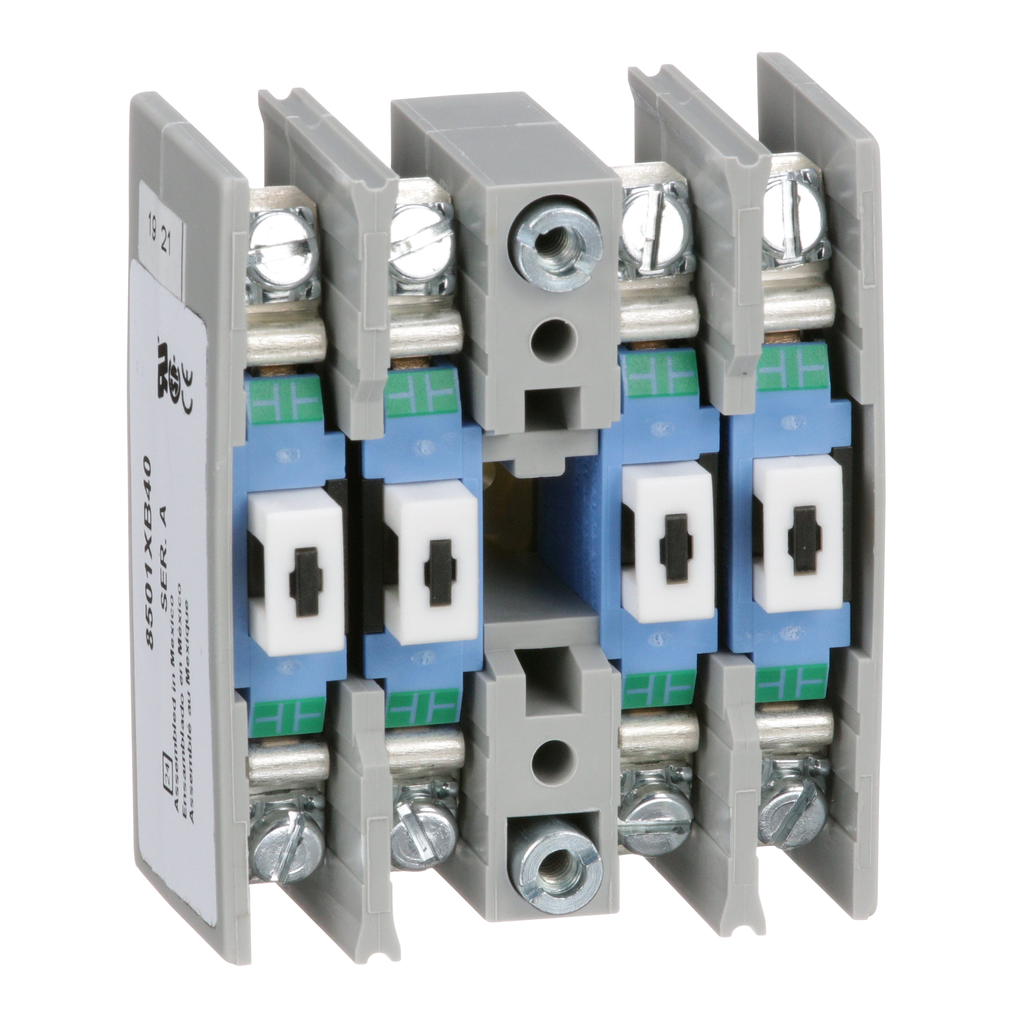

Square D 8501XB40 600 VAC 10 Amp 4-Pole 4NO Relay Adder Deck

Product Description

Square D 8501XB40 is a relay adder deck designed to enhance the functionality of the 8501X NEMA machine tool relay. This adder deck allows for the addition of four contacts to a standard relay unit. The straightforward design ensures that wiring remains simple, following the same straight-through pattern as the basic relay. This makes it easier to connect and maintain.

• Adds four contacts to a standard relay.
• Simple installation with plug-in contact cartridges.
• UL listed and CSA certified for safety and reliability.

Product Highlights

This product is ideal for applications that require extended control capabilities while maintaining a compact form factor.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 8501XB40
• Amperage: 10 Amp
• Voltage Rating: 600 VAC
• Contact Configuration: 4 NO (Normally Open)
• Wire Connection: Screw clamp terminals
• Certification: CE, CSA LR60905, UL Recognized
• Warranty Length: 18 months
• Country of Origin: Mexico
