Square D 8501RSD43P14V53 Plug in Relay

Product Description

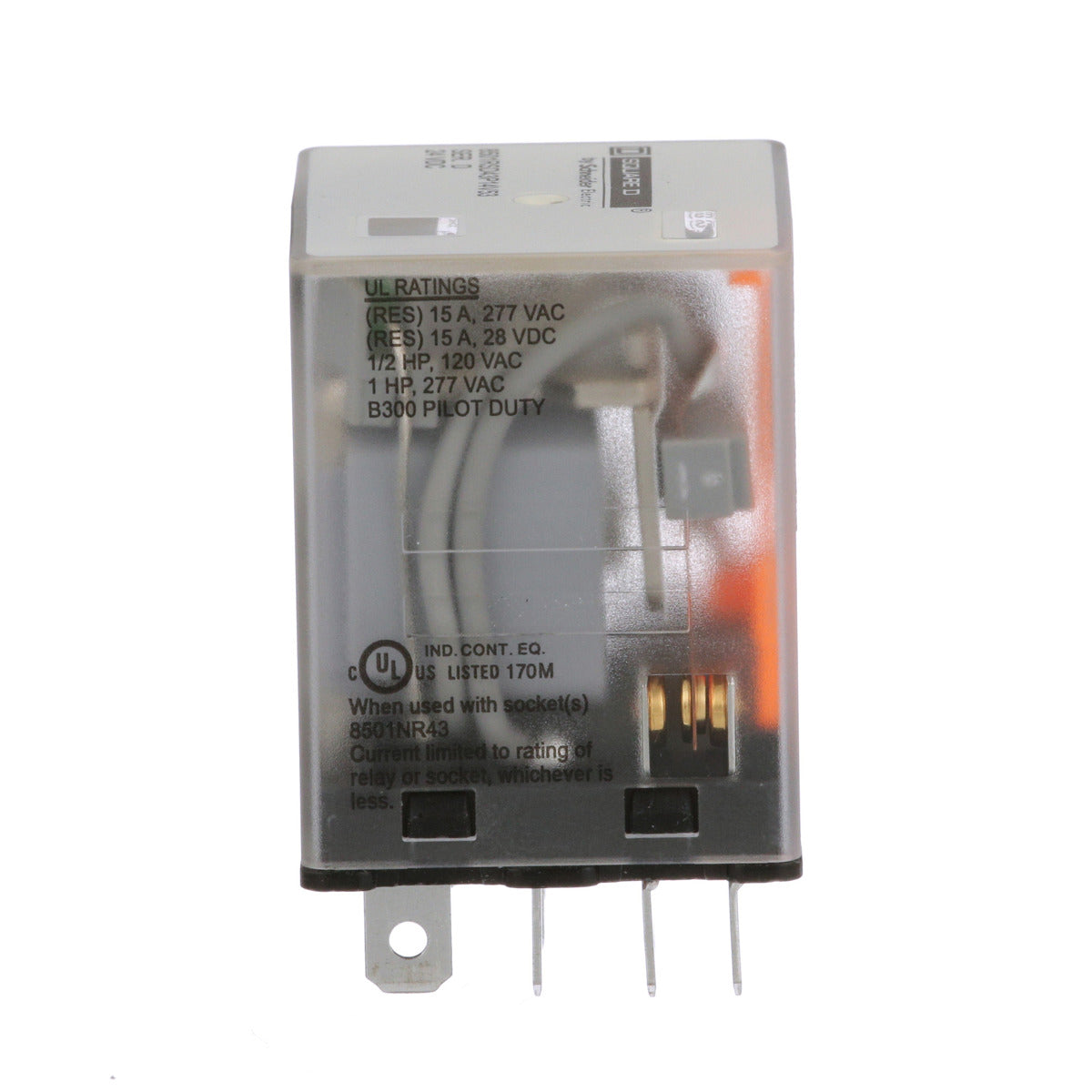

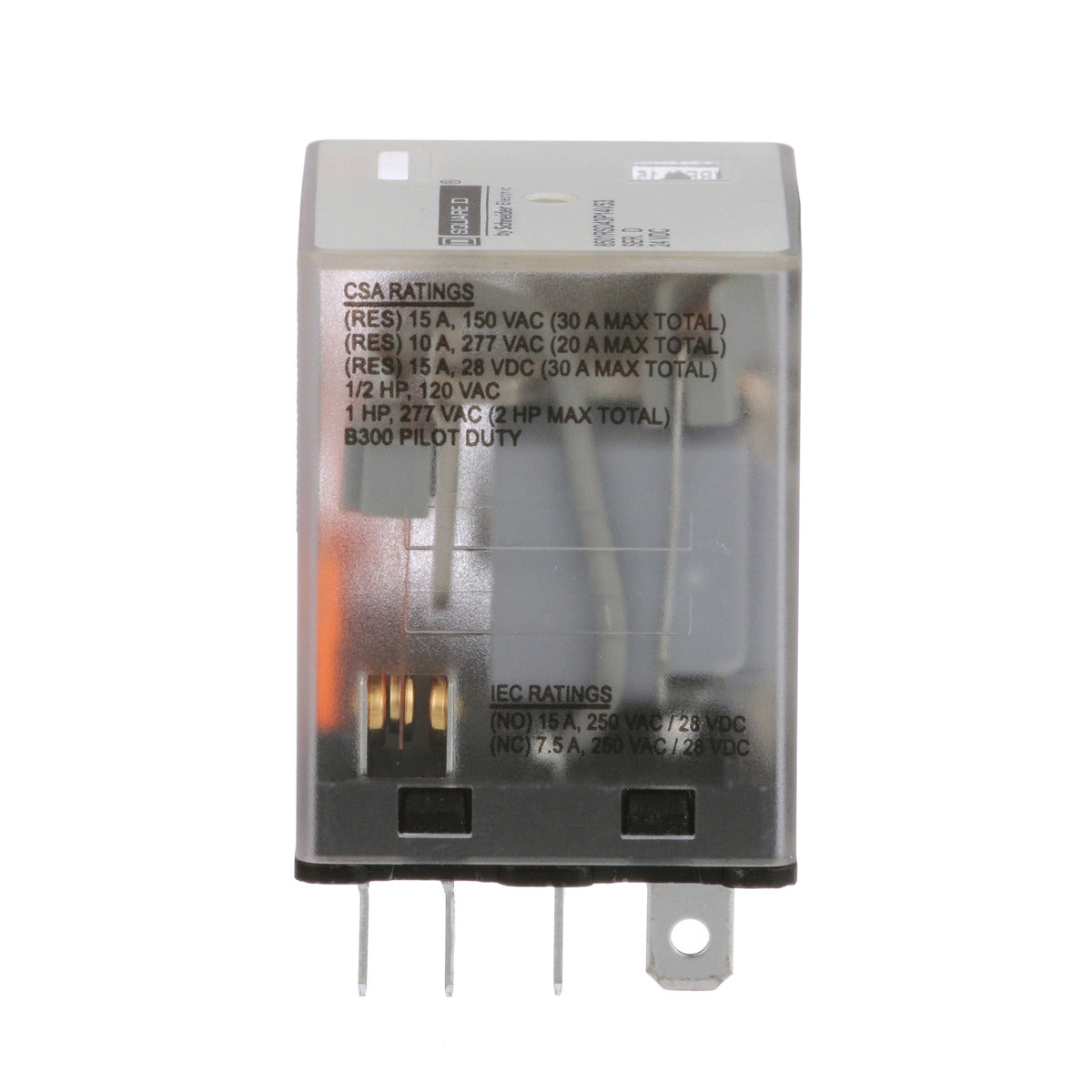

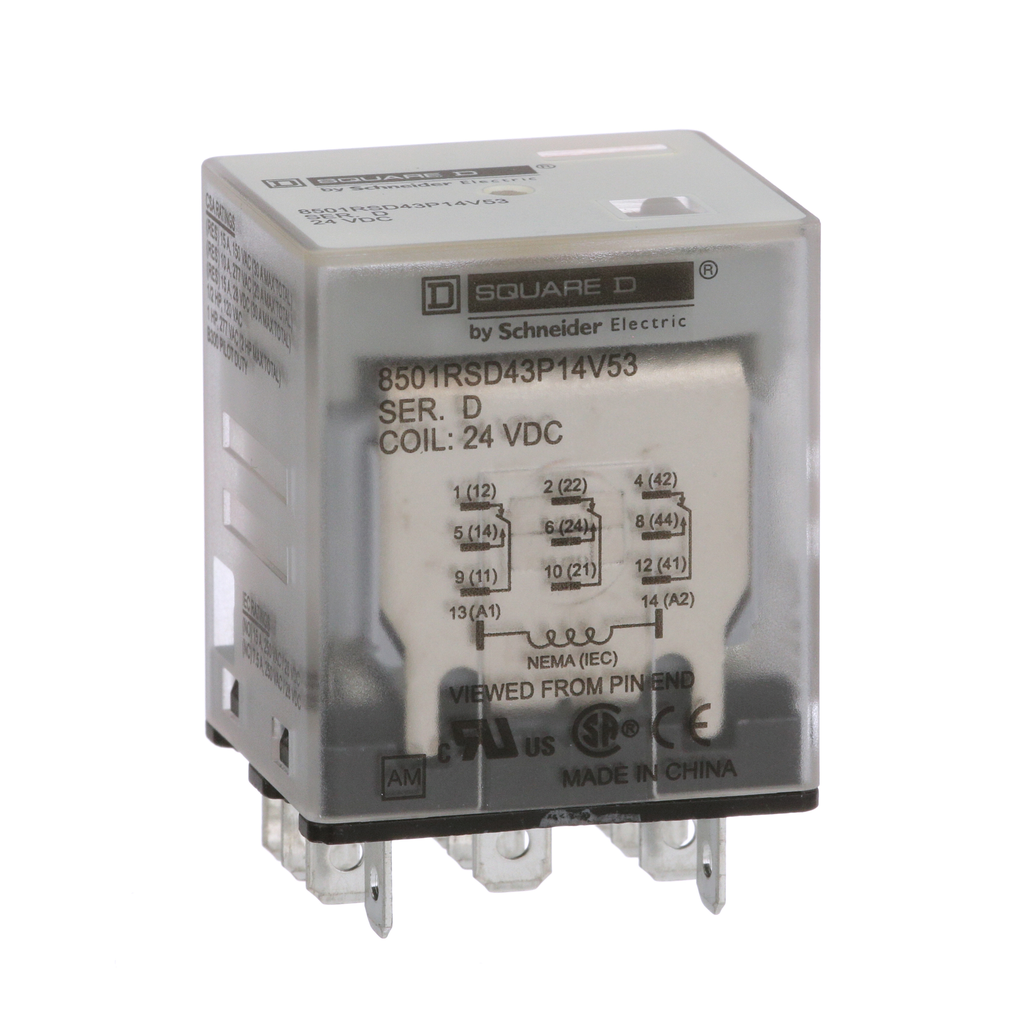

The Square D 8501RSD43P14V53 is a miniature plug-in relay designed for control circuit logic applications. This relay connects easily to relay sockets, facilitating quick replacements. It is compatible with the 8501NR43 and 8501NR43B relay sockets. The relay features a 3PDT contact arrangement, offering three normally open and three normally closed contacts. The contacts carry a resistive rating of fifteen amperes at 277 VAC and 28VDC, ten amperes at 277 VAC, and are rated for one-half horsepower at 120 VAC and one horsepower at 277 VAC. It also includes a B300 inductive rating. Additionally, this relay is equipped with a nonreplaceable twenty-four VDC coil and a green LED indicator. The 8501RS series is compliant with UL standards when used with Square D relay sockets, recognized by UL and certified by CSA.

• Three normally open and three normally closed contacts
• Compatible with 8501NR43 and 8501NR43B relay sockets
• Resistive rating up to fifteen amperes

Product Highlights

This relay is suitable for various control circuit applications and has a compact design for easy installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501RSD43P14V53
• Contact Configuration: 3PDT
• Coil Voltage: 24 VDC
• Operating Temperature: -40 to 131 degrees F
• Country of Origin: China
• Warranty Length: 18 months
• Certifications: CE, CSA, UL Listed, UL Recognized
