Square D 8501RSD42P14V53 24 VDC 10 Amp DPDT Miniature Plug-In Relay

Product Description

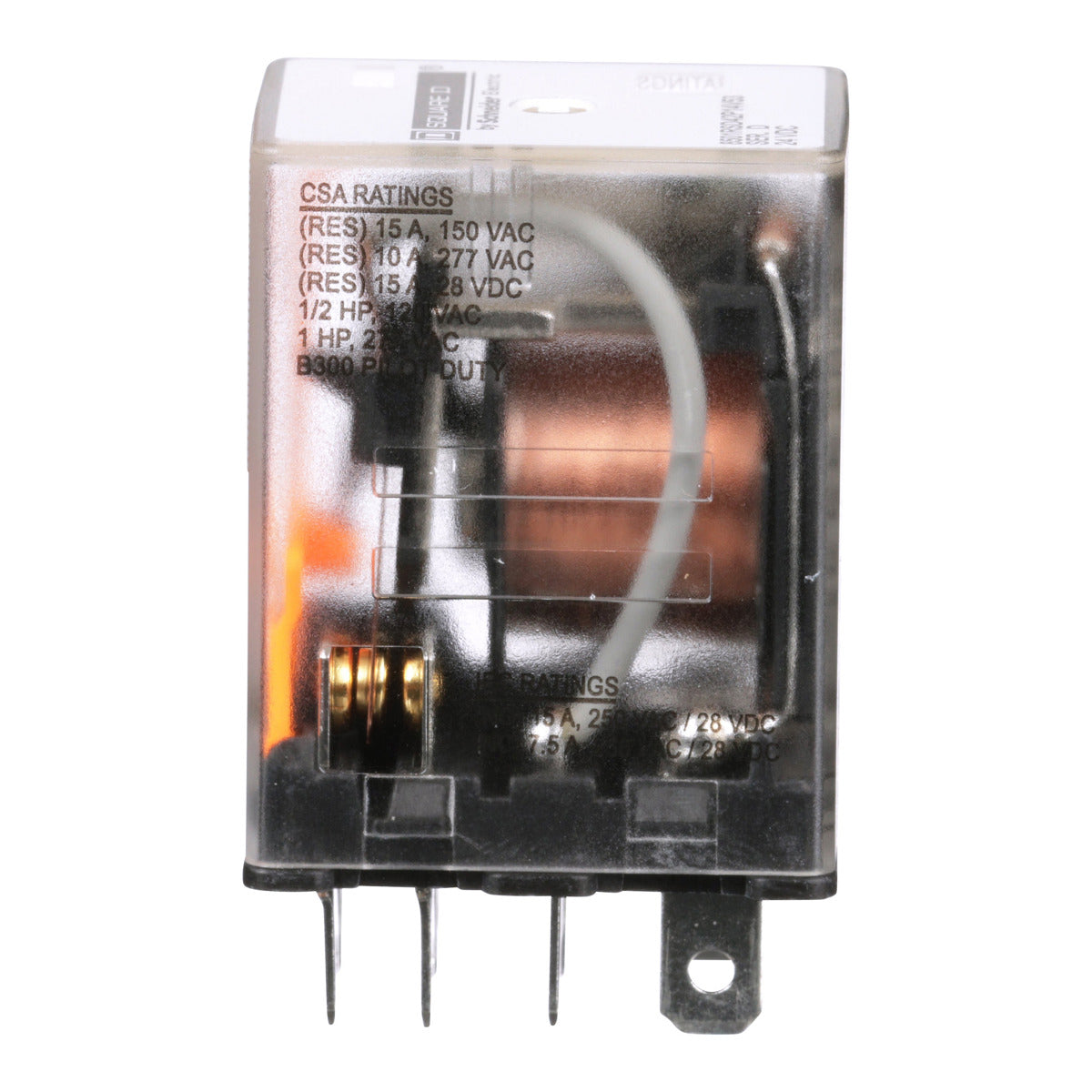

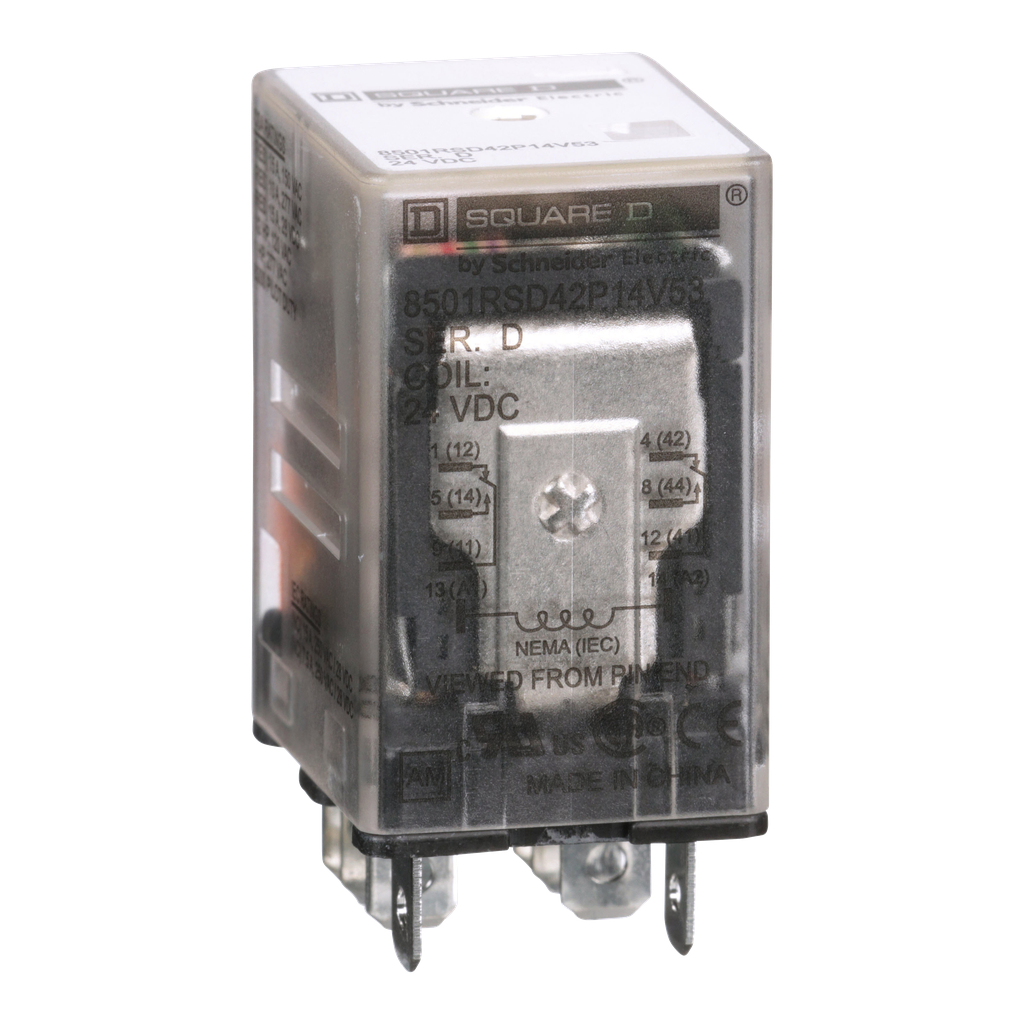

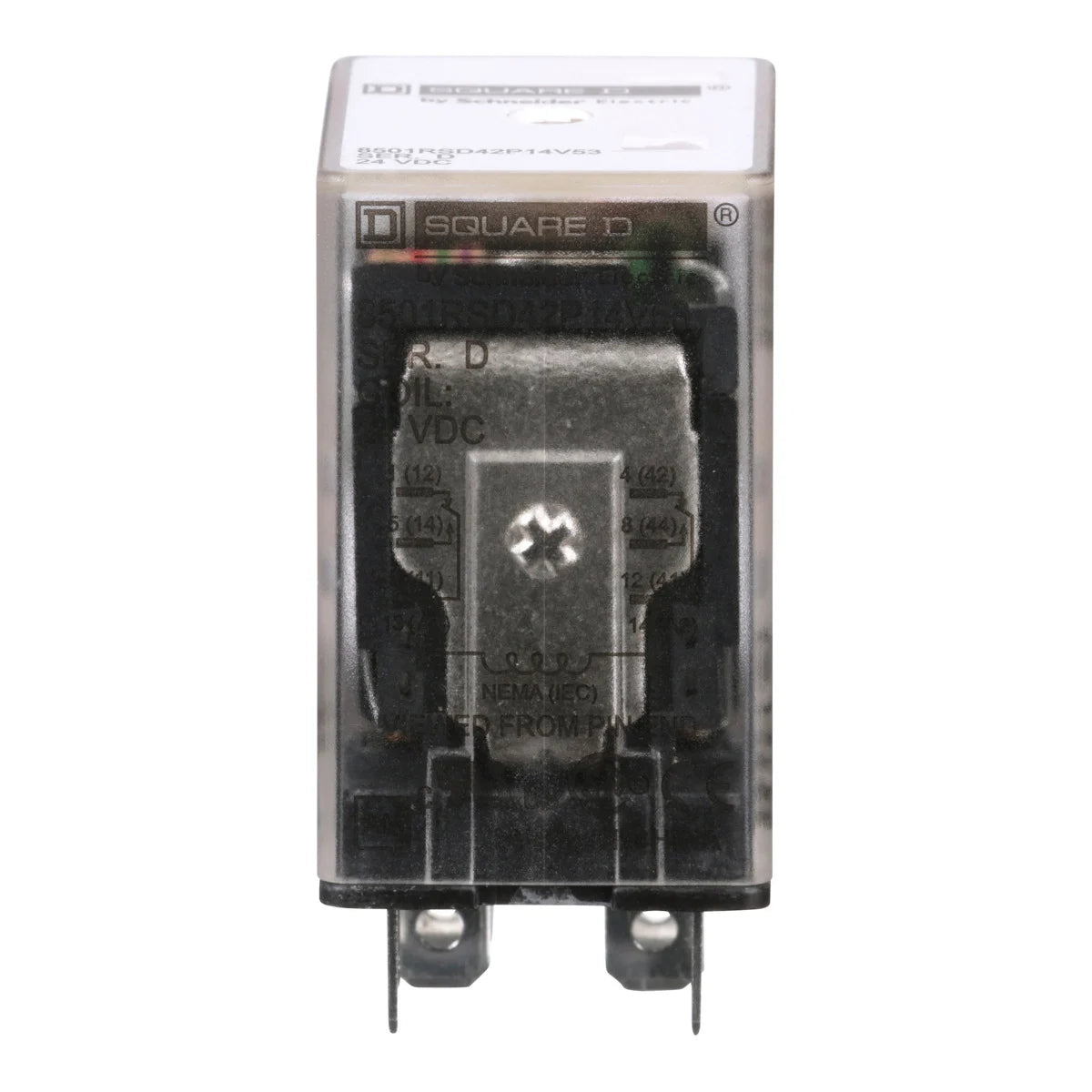

Square D 8501RSD42P14V53 is a miniature plug-in relay designed for control circuit applications. It fits easily into relay sockets like model 8501NR42 or 8501NR42B. This relay features DPDT contact arrangement with two normally open and two normally closed contacts. The relay supports a resistive rating of 15 amperes at 277 VAC and 120 VAC, and 28 VDC. It is capable of handling a 1/2 HP load at 120 VAC and 1 HP at 277 VAC, along with a B300 inductive rating. The relay operates on a nonreplaceable coil at 24 VDC and includes a green LED indicator. This relay is UL listed when used with Square D socket types and is also CSA certified.

• DPDT contact arrangement for versatile applications.
• Easy plug-in design for quick replacement.
• UL listed and CSA certified for safety.

Product Highlights

The Square D 8501RSD42P14V53 is a reliable solution for control logic circuit tasks.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501RSD42P14V53
• Coil Voltage: 24 VDC
• Amperage Rating: 10 at 30 VDC
• Contact Configuration: DPDT
• Operating Temperature: -40 to 131 Degrees F
• Width: 0.83 inches
• Height: 1.07 inches
• Depth: 1.64 inches
