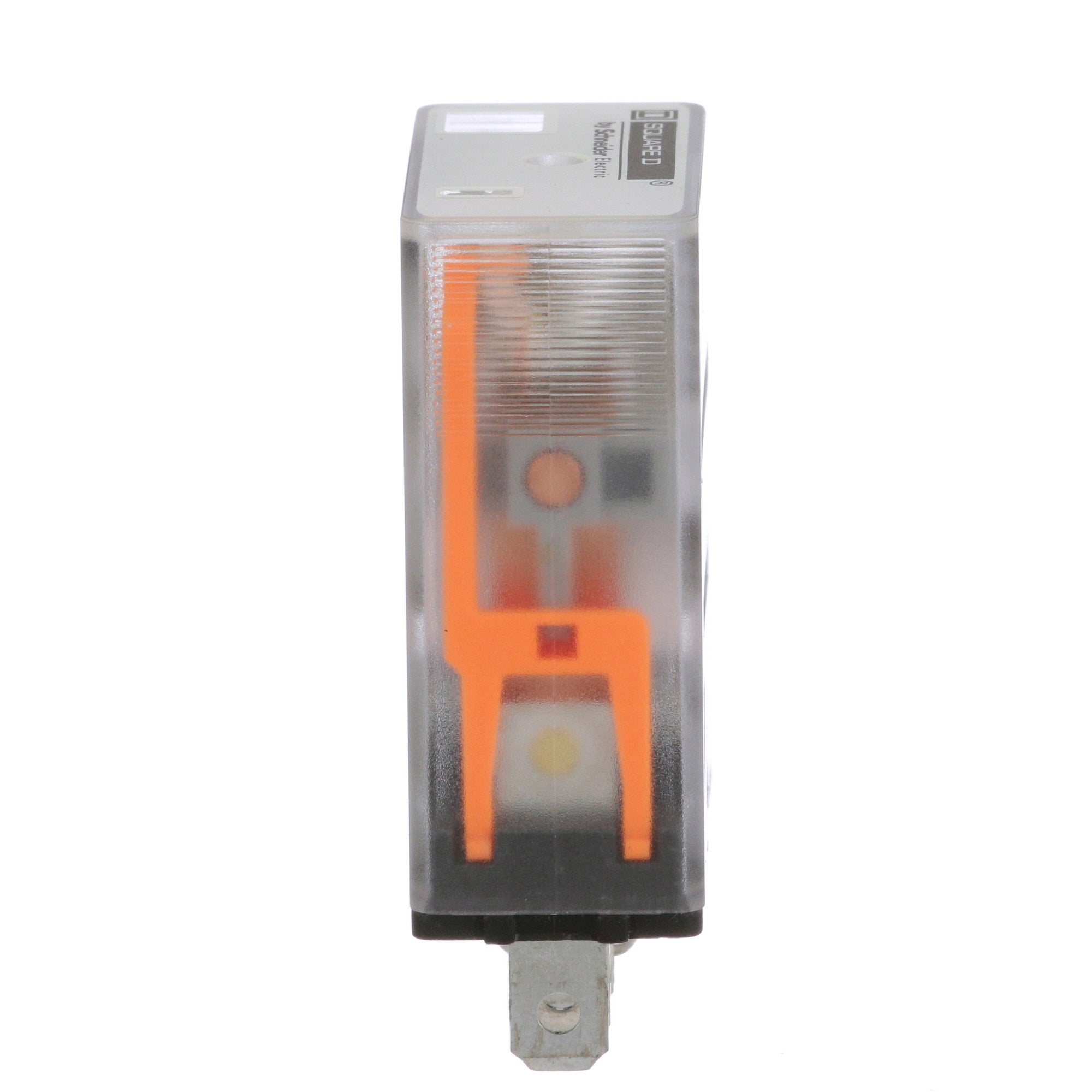

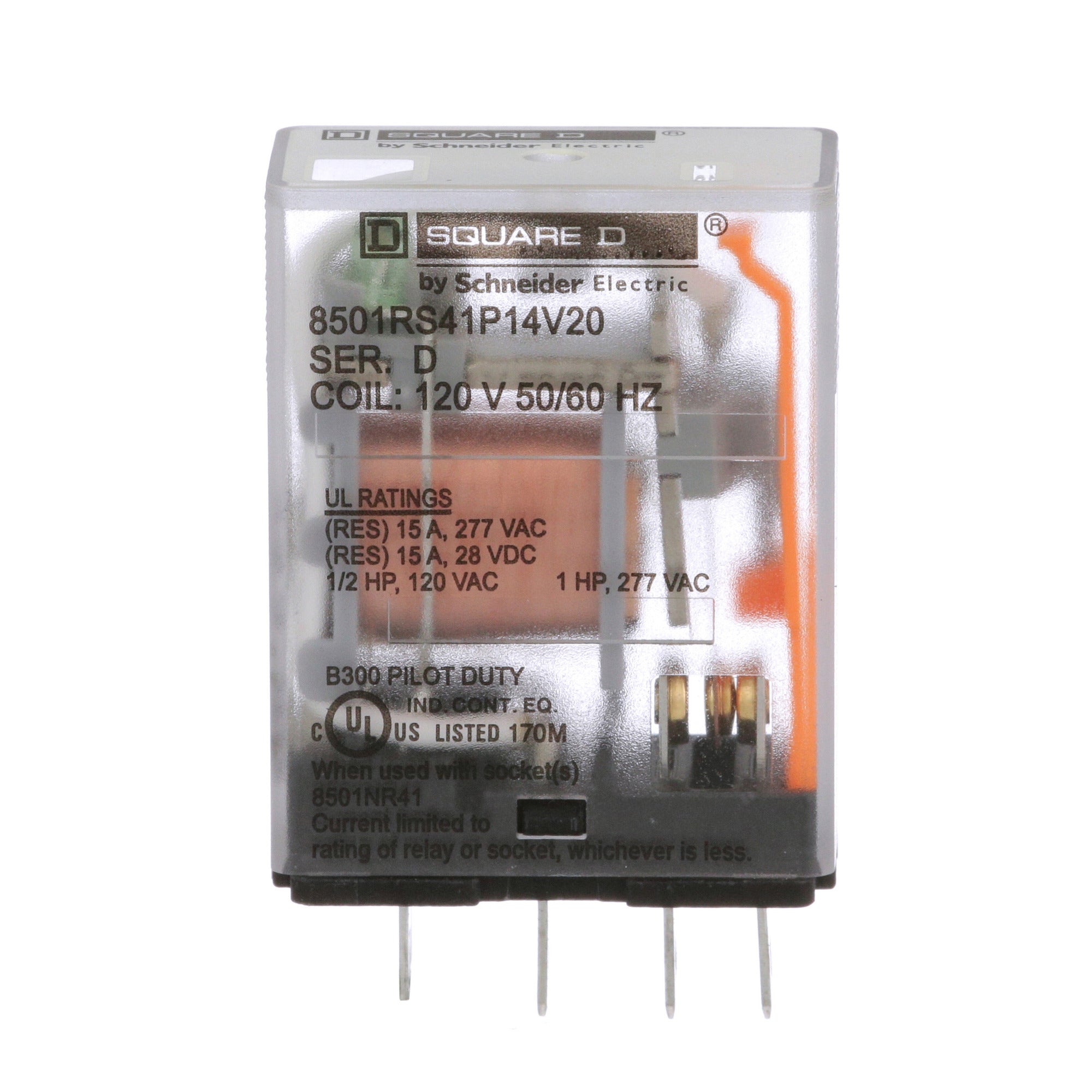

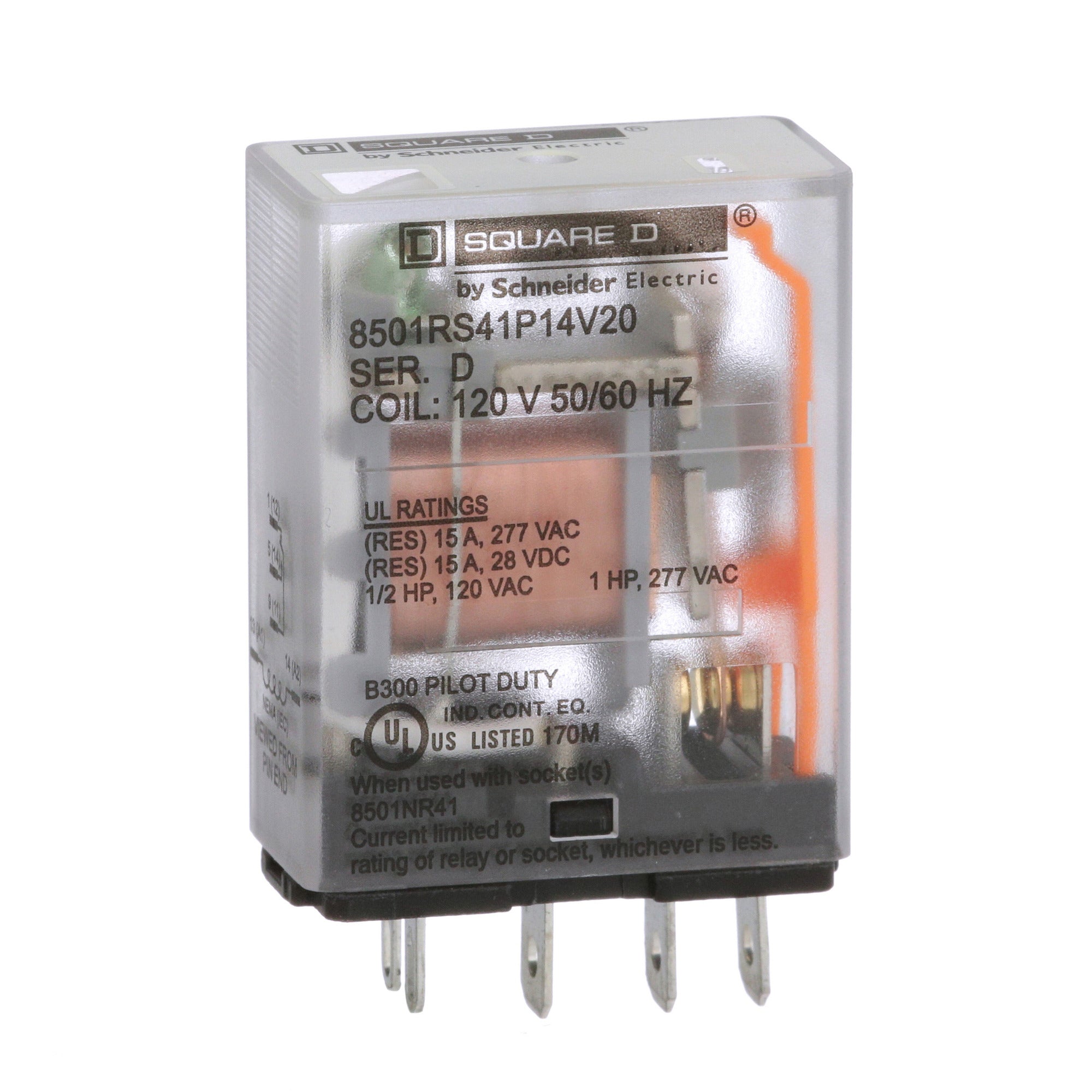

Square D 8501RS41P14V20 Plug in Relay 120 VAC (1 Pack) Replacement 8501NR41

Product Description

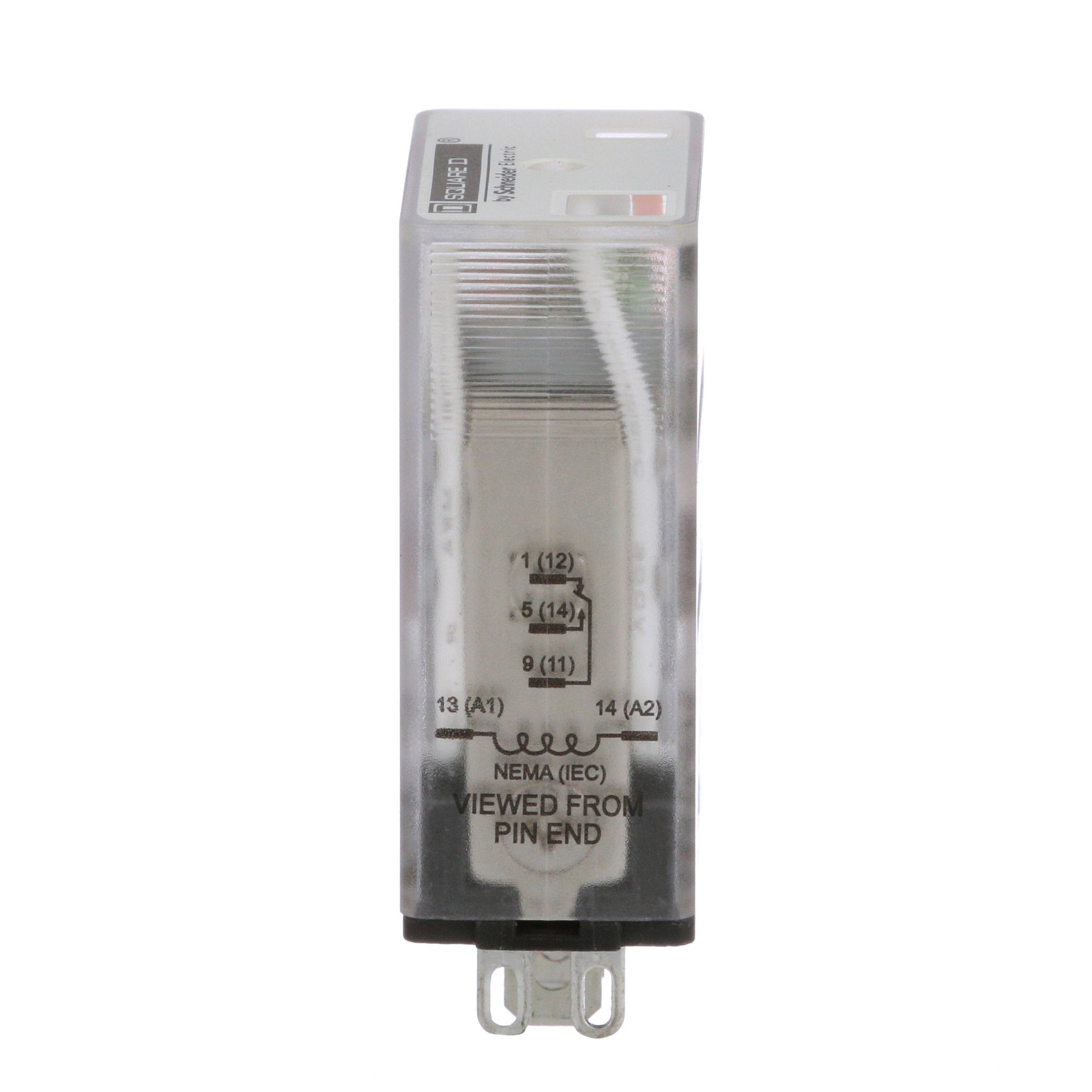

The Square D 8501RS41P14V20 is a miniature plug-in relay designed for control circuit logic applications. This relay can easily be plugged into a compatible relay socket, simplifying replacement and maintenance. It connects with the 8501NR41 or 8501NR41B relay sockets and features SPDT contact arrangements, including one normally open and one normally closed contact.

• 15 Amp resistive rating at 277 VAC and 120 VAC
• 120 VAC coil voltage
• UL listed and CSA certified

Product Highlights

This relay supports various applications and is ideal for those needing reliable control solutions in their projects.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501RS41P14V20
• Operating Temperature: -40 to 131 Degrees F
• Amperage Rating: 15 Amps at 120 VAC
• Dimensions: 41.8 mm depth, 14 mm width, 27.3 mm height
• Contact Material: Silver Alloy, Gold Flashed
• Country of Origin: China
• Warranty Length: 18 months
• Certification: CE, CSA, UL Listed
