Square D 8501NR82 Relay Socket 15 Amp DIN Rail Direct Panel Mount

Product Description

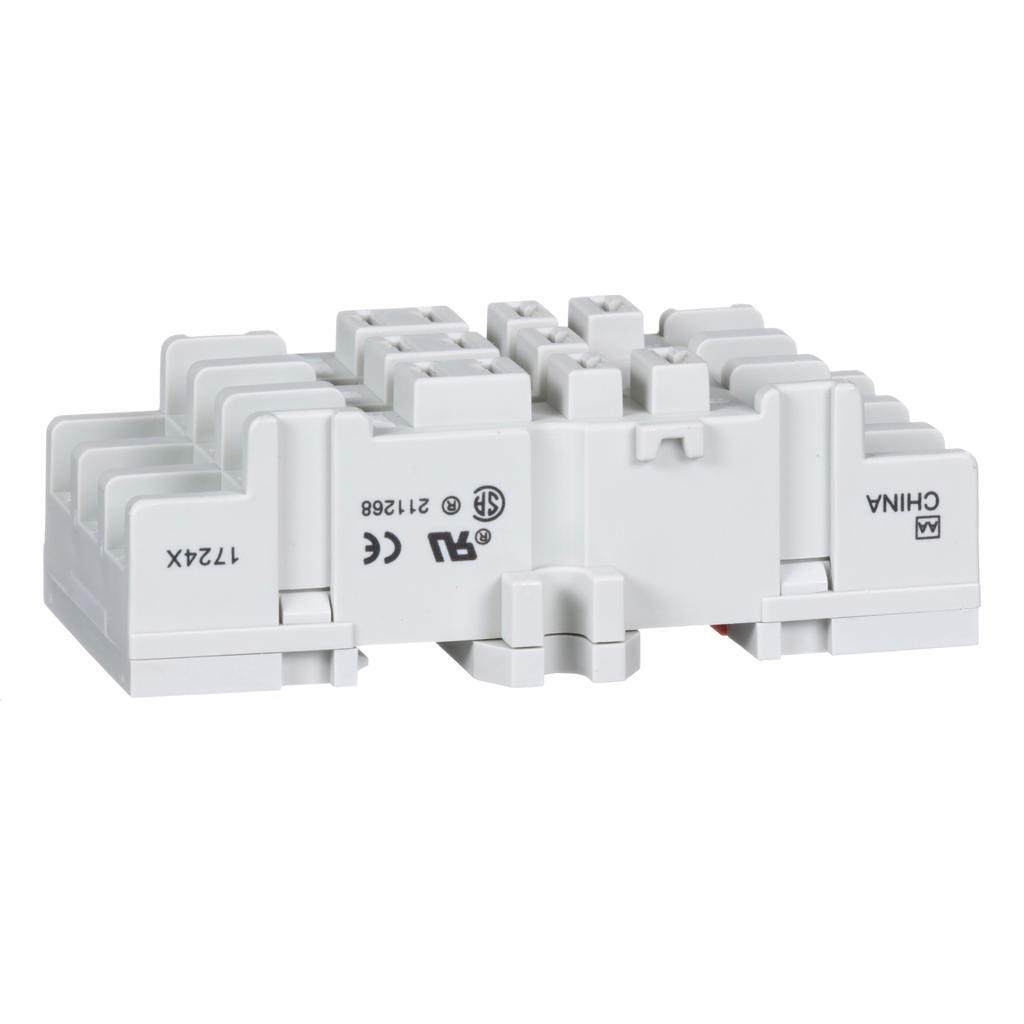

The Square D 8501NR82 is a relay socket designed for 8501K plug-in relays. This component can be mounted on a thirty-five millimeter DIN rail or directly on a panel. It accommodates the 8501KUR and 8501KUDR relays which feature eleven spade pins. The socket includes pressure wire clamps to ensure secure connections, and its stacked terminal design helps save space in electrical panels.

• UL component recognized
• CSA certified
• Compatible with various 8501K series relays

Product Highlights

This relay socket is ideal for use in control and automation applications, providing reliable connectivity and ease of installation.

Product Information

Standard Information

• Catalog Number: 8501NR82
• Brand: Square D

Technical Specifications

• Type: Relay Socket
• Amperage: 15 Amp
• Voltage: 300 VAC
• Number of Pins: 11
• Height: 80 mm
• Width: 43 mm
• Depth: 26 mm
• Mounting Type: DIN Rail, Panel
• Country of Origin: China
• Warranty Length: 18 months
