Square D 8501NR41B Double Tier Relay Socket 15 Amp 300 VAC Replacement MPN

Product Description

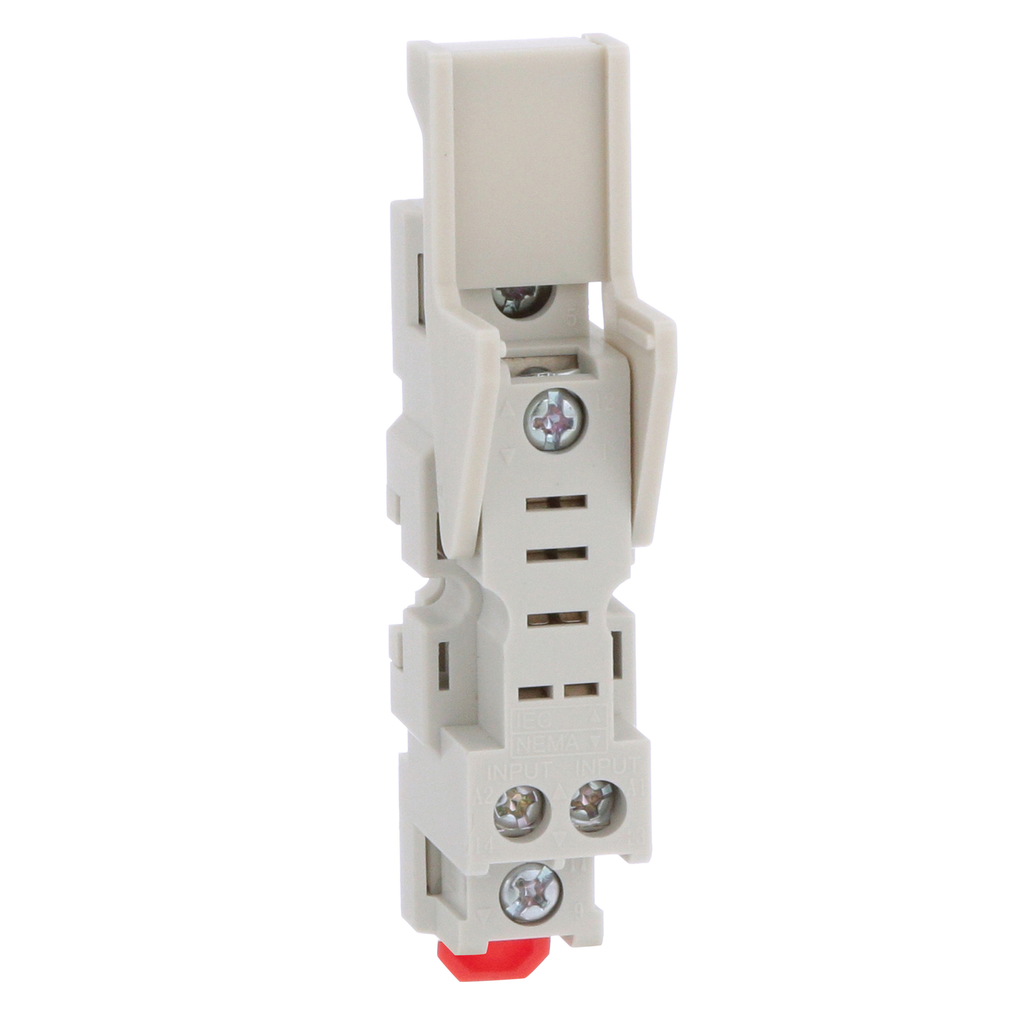

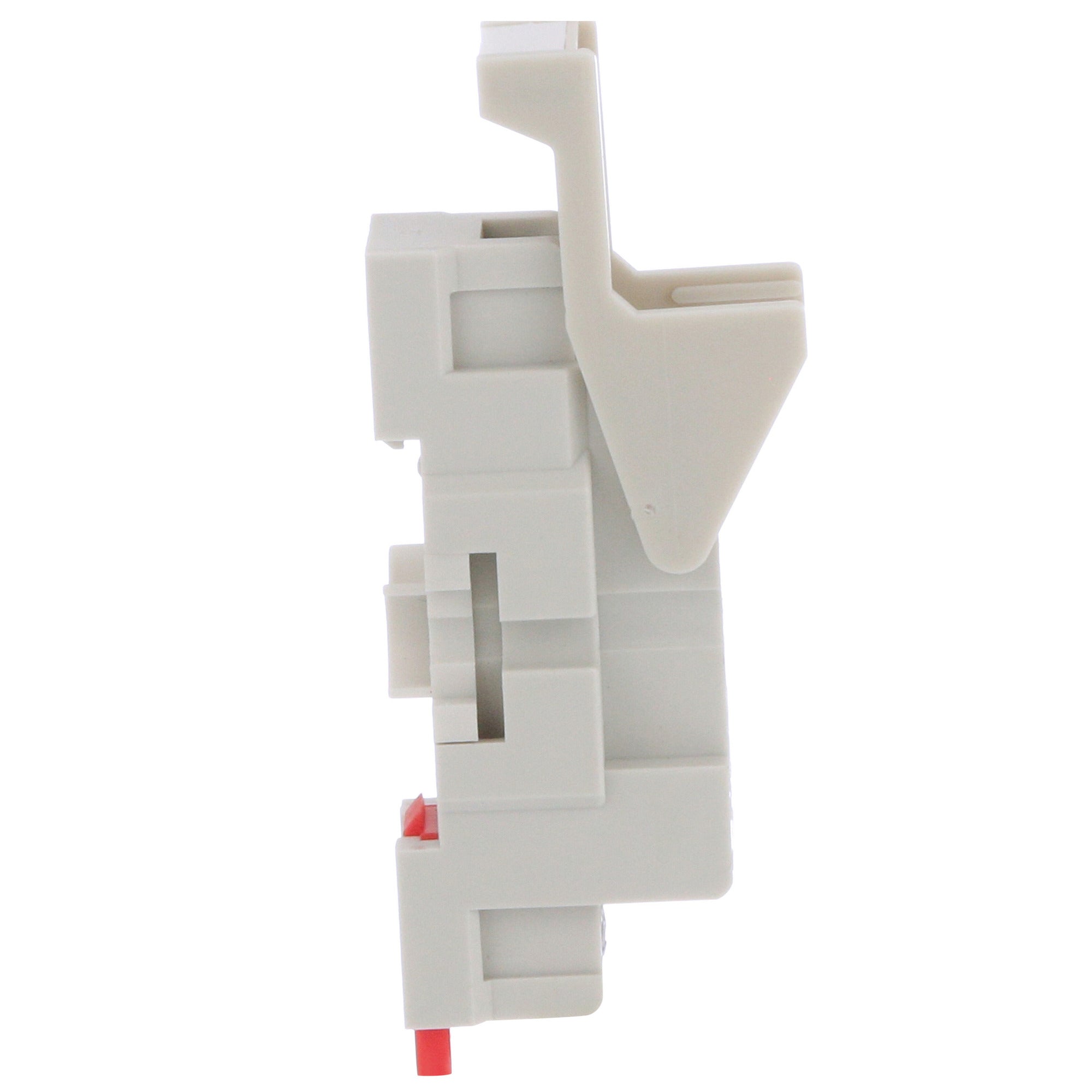

The Square D 8501NR41B is a 15 Amp relay socket designed for use with plug-in relays. This socket can be mounted on a DIN rail or directly onto a panel. It accommodates 8501RS41 or 8501RSD41 relays with five blade pins. The terminals feature pressure wire clamps for secure connections. This relay socket also incorporates stacked terminals to maximize space efficiency.

• Designed for 15 Amp relay applications
• Suitable for DIN rail or panel mounting
• UL recognized and CSA certified

Product Highlights

Ideal for control and automation tasks, the 8501NR41B helps in the proper wiring of relays. The compact design aids in space savings while ensuring reliability in electrical connections.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501NR41B
• Depth: 28.95 mm
• Width: 20.06 mm
• Height: 73.02 mm
• Line Rated Current: 15 A
• Number of Pins: 5
• Mounting Type: DIN Rail, Panel
• Certifications: CE, CSA, UL Recognized
• Warranty Length: 18 months
• Country of Origin: Taiwan
