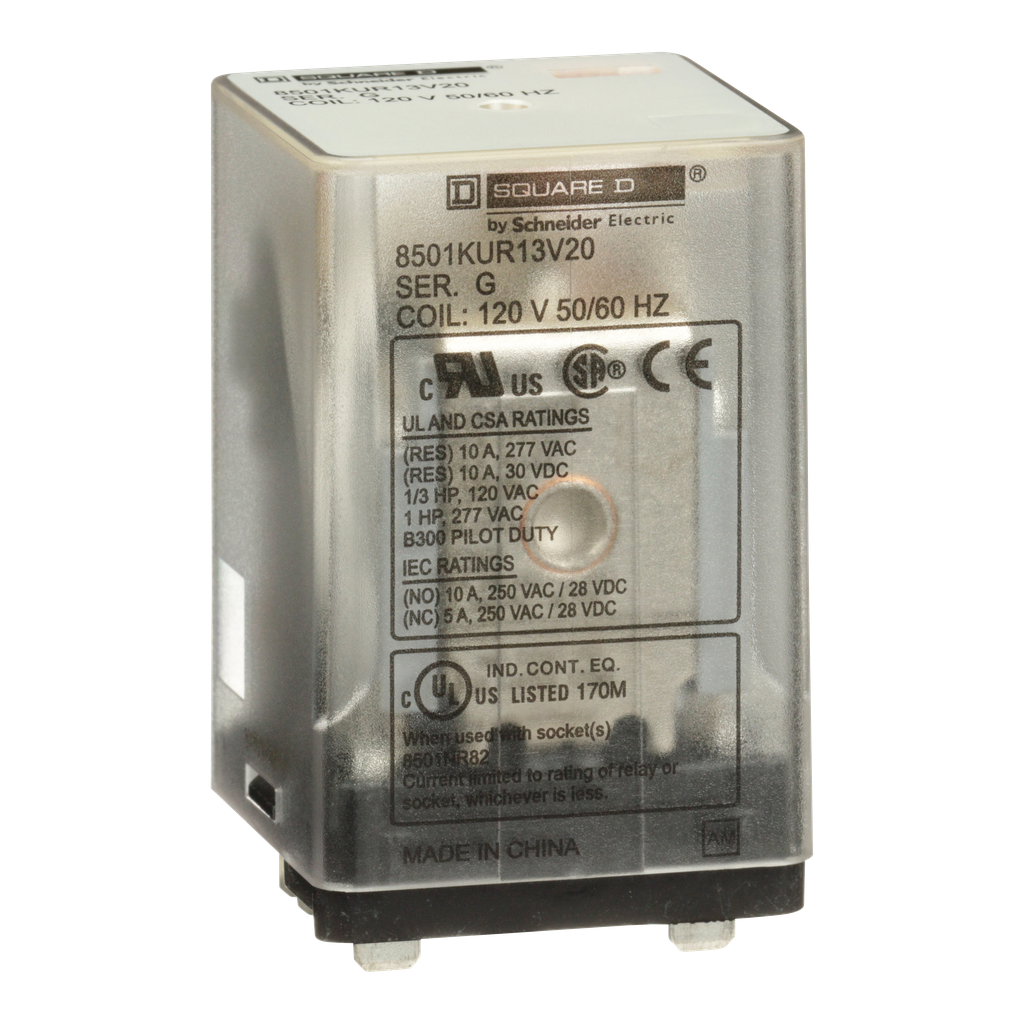

Square D 8501KUR13V20 Relay, Harmony 850

Product Description

The Square D 8501KUR13V20 Relay is designed for general-purpose switching applications at three hundred VAC or lower. This universal plug-in relay easily connects to a relay socket for fast replacements. It fits into the 851NR82 relay socket and features a three-pole double-throw contact arrangement.

• Compatible with 851NR82 relay socket for easy installation.
• Rated for ten amps at two hundred seventy-seven VAC and ten amps at twenty-eight VDC.
• Includes three normally open and three normally closed contacts.

Product Highlights

This relay is UL listed, CSA certified, and recognized as a component for Square D relay sockets. It features a nonreplaceable one hundred twenty VAC coil and does not include a green LED indicator.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501KUR13V20
• Operating Temperature: -40 to 131 degrees F
• Mounting Type: Socket

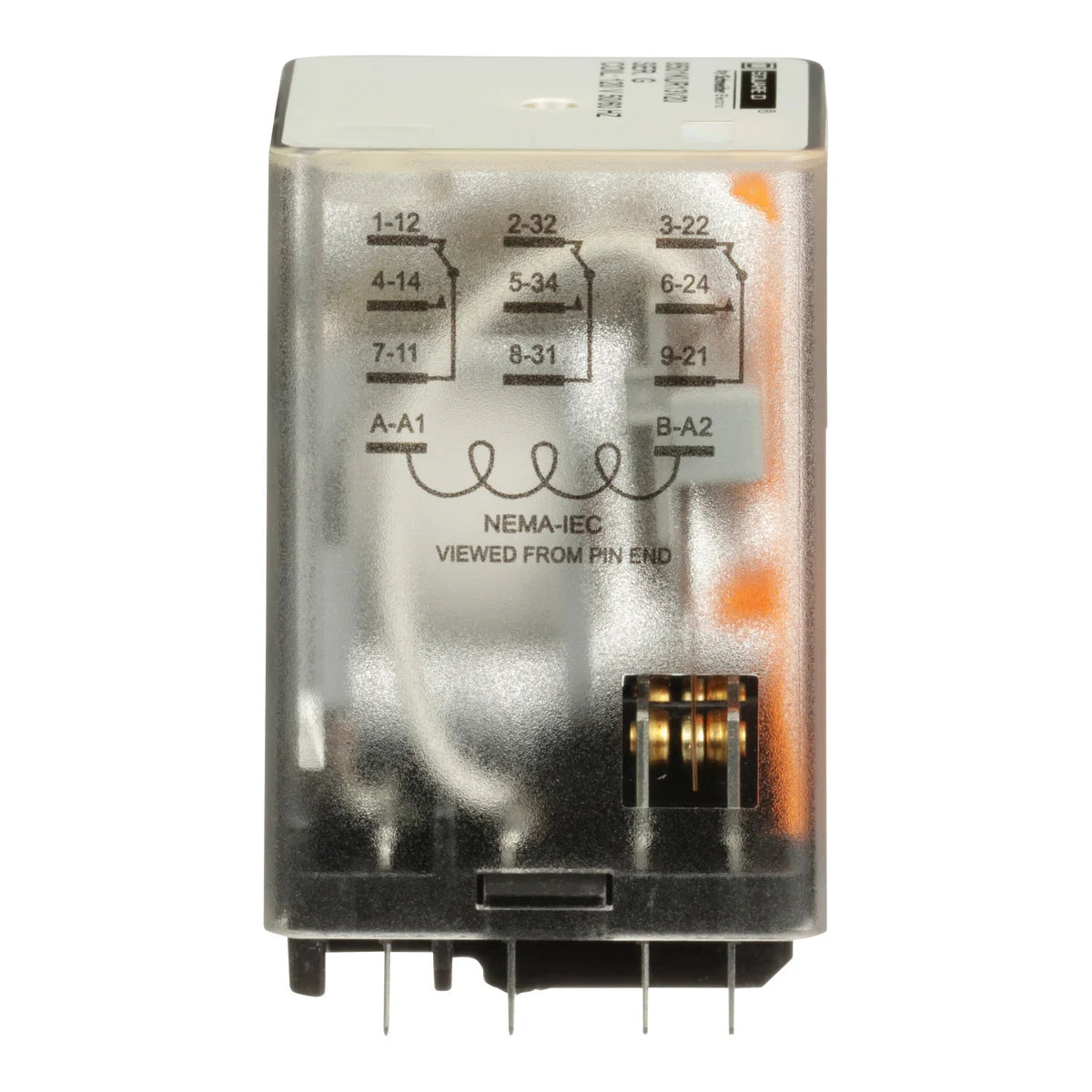

• Contact Configuration: 3PDT
• Contact Rating: 10A at 277VAC, 10A at 28VDC
• HP Ratings: 1/3 at 120VAC, 1 at 277VAC
• Country of Origin: China
• Certifications: UL Listed, CSA Certified
