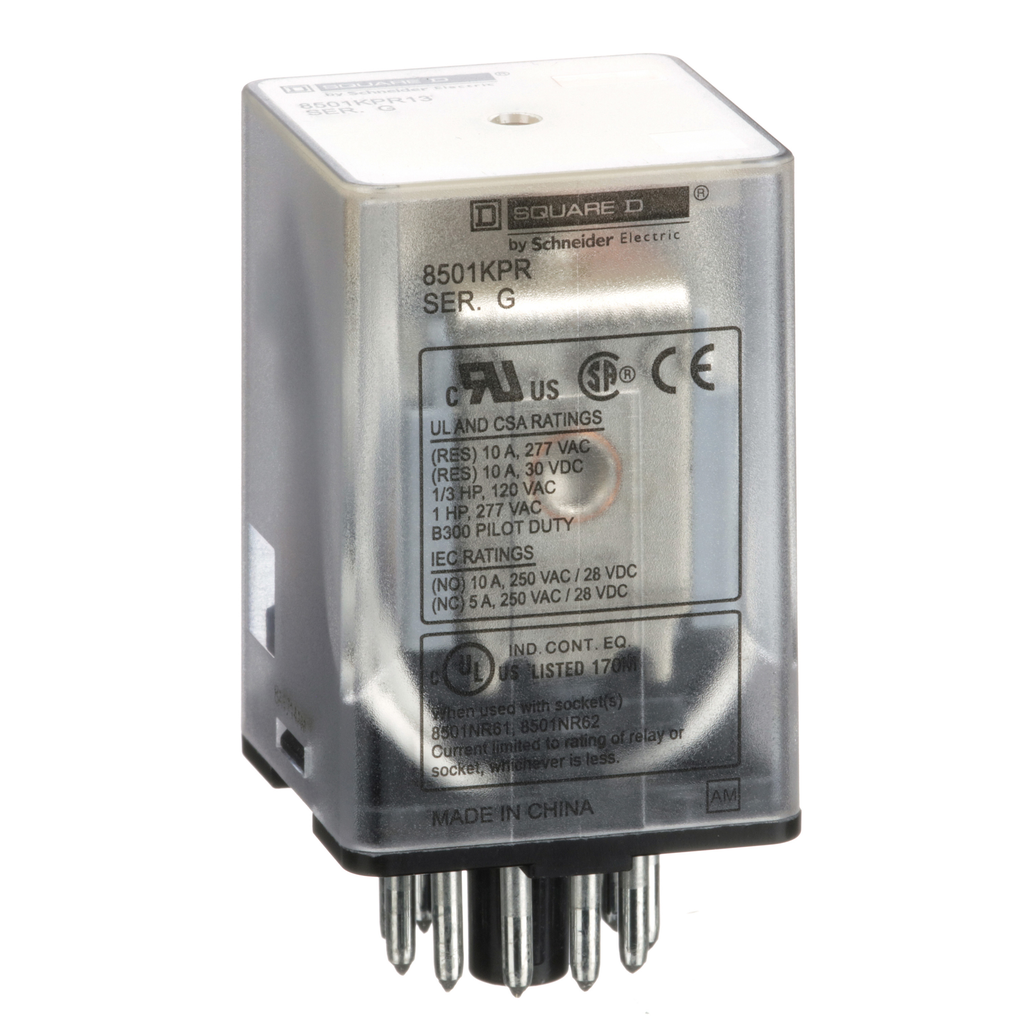

Square D 8501KPR13V24 Plug in Relay Typ 1 HP at 277 VAC

Product Description

The Square D 8501KPR13V24 is a versatile plug-in relay designed for multipole switching applications at three hundred VAC or lower. This relay fits easily into a relay socket, facilitating quick replacement when necessary. It is compatible with both the 851NR61 and 8501NR62 relay sockets.

• Features a dual-pole, double-throw (DPDT) contact arrangement
• Contains two normally open contacts and two normally closed contacts
• UL listed and CSA certified for safety assurance

Product Highlights

This relay supports a load of ten amperes at two hundred seventy-seven VAC and includes a non-replaceable coil rated at two hundred forty VAC. It is suitable for various industrial applications where relay switching is required.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501KPR13V24
• Operating Temperature: -40 to 131 degrees F
• Contact Material: Silver Alloy
• Mounting Type: Socket
• Applications: 1 HP at 277 VAC, 0.33 HP at 120 VAC
• Certifications: CE, CSA, UL Listed, UL Recognized
• Country of Origin: United States
• Coil Voltage: 240 VAC
