Product Description

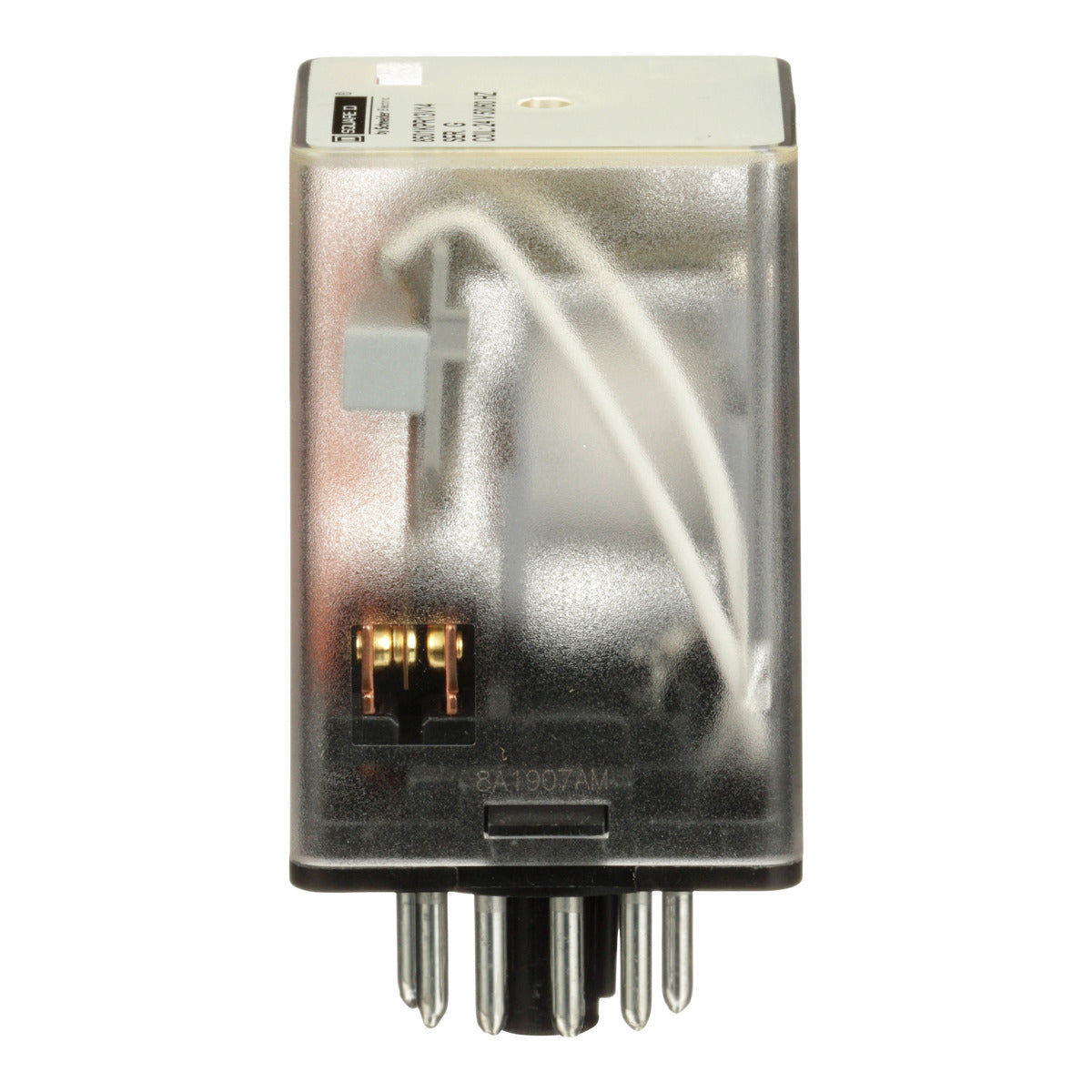

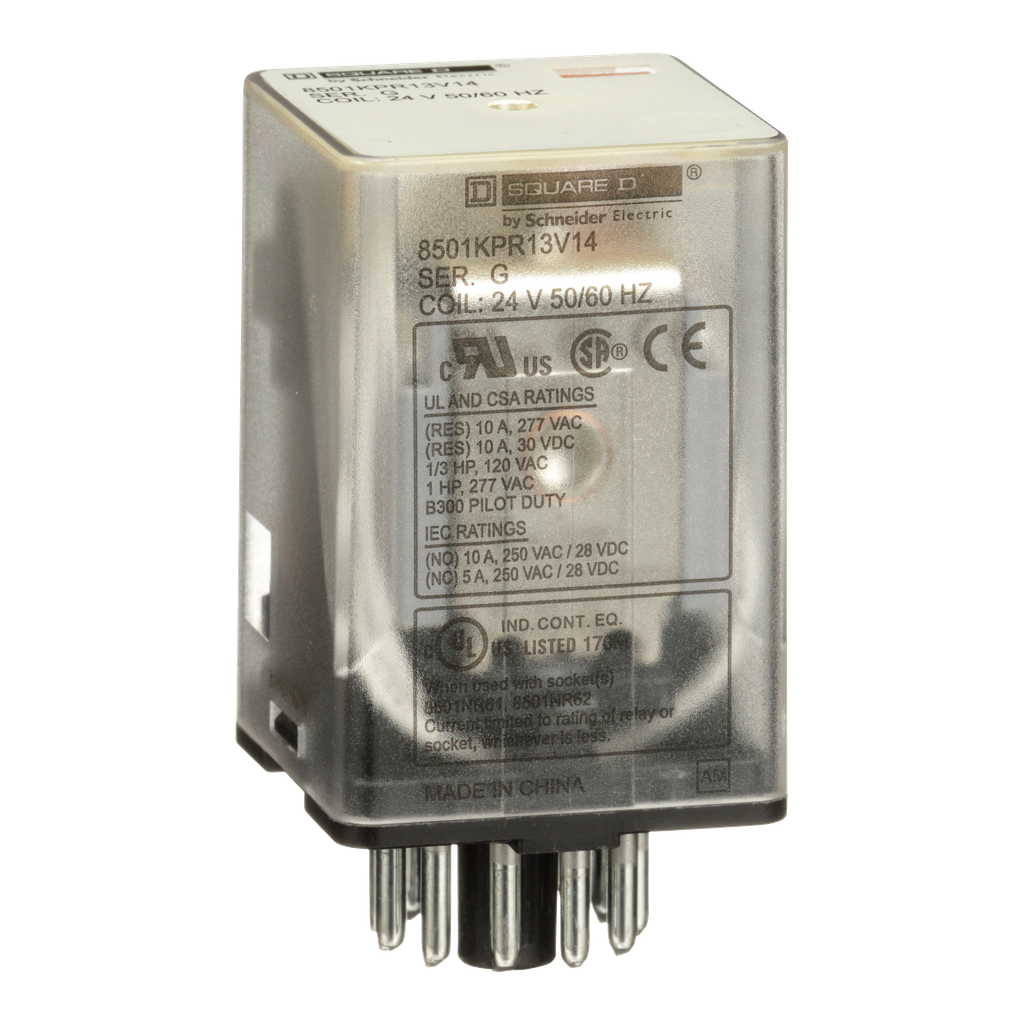

The Square D 8501KPR13V14 is a universal plug-in relay designed for multipole switching applications at 300 VAC or lower. This relay integrates easily into existing systems by plugging into 851NR61 or 8501NR62 relay sockets, facilitating straightforward replacement. It features a double pole double throw (DPDT) configuration with two normally open and two normally closed contacts.
- 10 ampere rating at 277 VAC and 28 VDC.
- 1/3 HP rating at 120 VAC and 1 HP at 277 VAC.
- Coil voltage: Nonreplaceable 24 VAC.
Product Highlights
The 8501KPR13V14 relay is UL listed, allowing safe use with Square D relay sockets. It meets CSA certification standards. The relay is perfect for various applications, including industrial automation and motor control systems.
Product Information
Standard Information
-
Manufacturer: Schneider Electric
-
Brand: Square D
Technical Specifications
-
Catalog Number: 8501KPR13V14
-
Operating Temperature: -40 to 131 degrees F
-
Mounting Type: Socket
-
Contact Material: Silver Alloy
-
Contact Configuration: 3PDT
-
Country of Origin: China
-
Certifications: CE, CSA, UL Listed, UL Recognized
-
Special Features: No indicator, without test button
