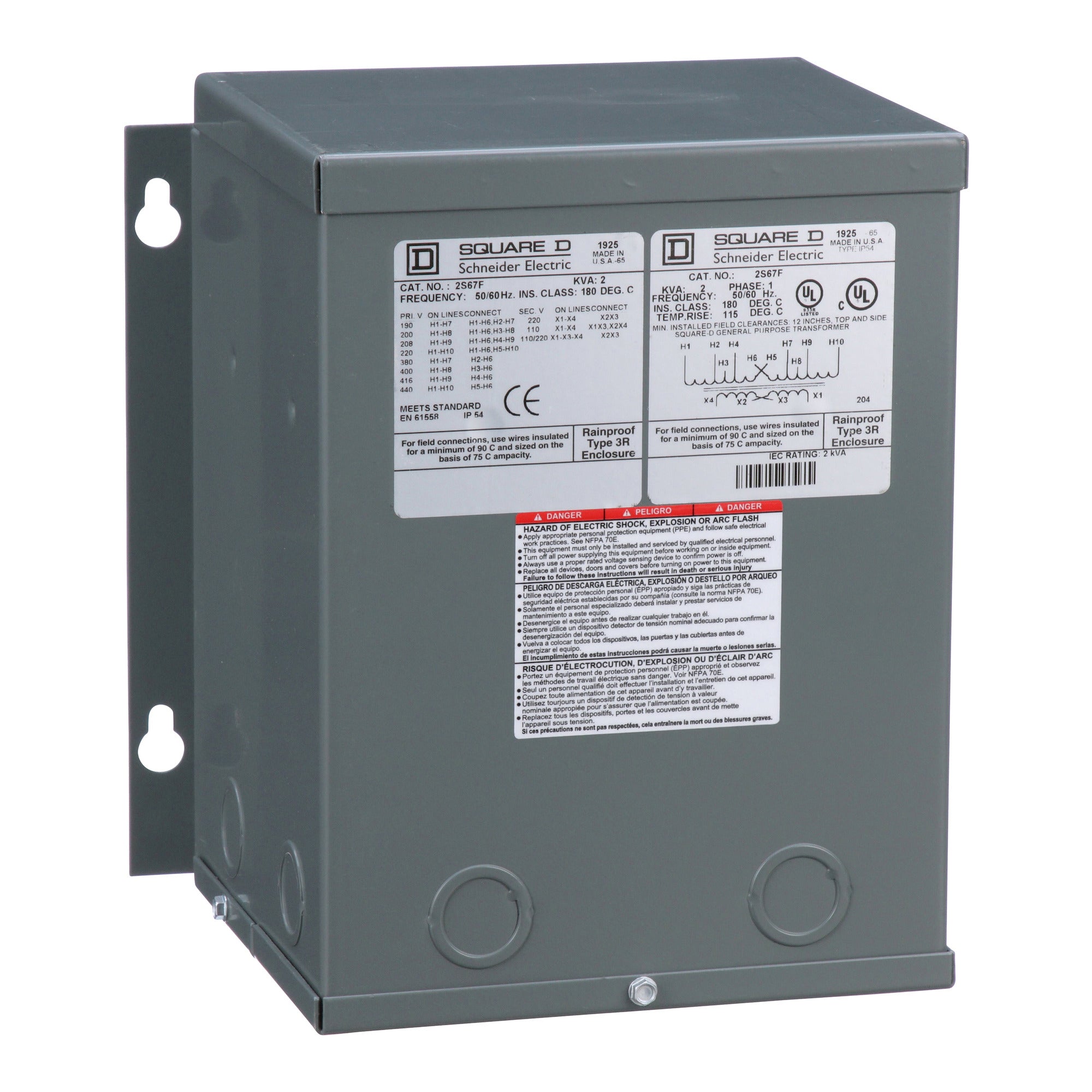

Square D 2S67F Dry Type General Purpose Transformer 2 kVA

Product Description

The Square D 2S67F Transformer is a high-efficiency, dry type general purpose transformer with a primary voltage range of 190 to 440 VAC and a secondary voltage of 110/220 VAC. Designed for both indoor and outdoor installation, this unit features a fully enclosed, resin-encapsulated design to protect against contaminants and environmental conditions.

• Resin encapsulated for maximum protection and efficiency.

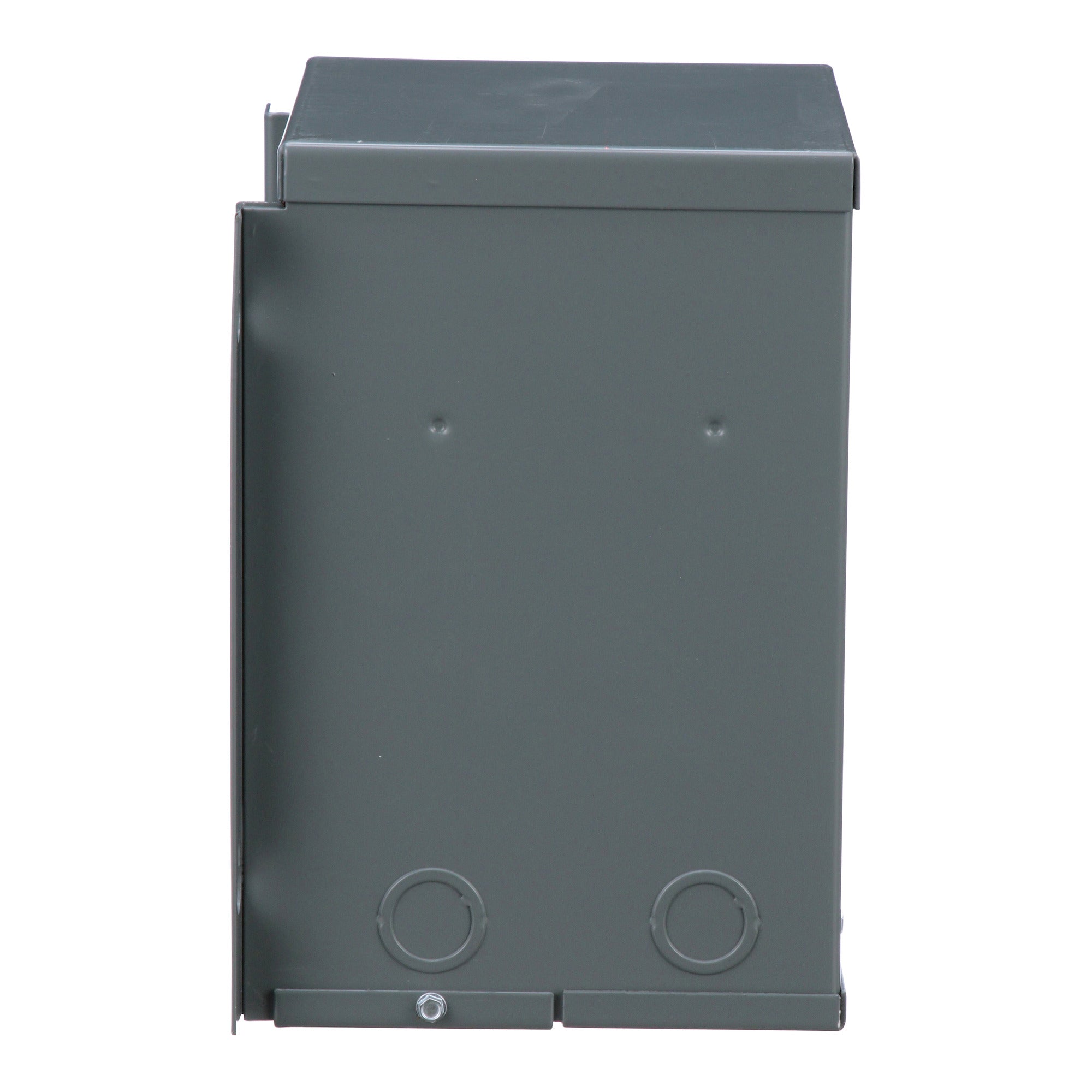

• NEMA 3R rated enclosure made of painted sheet steel.

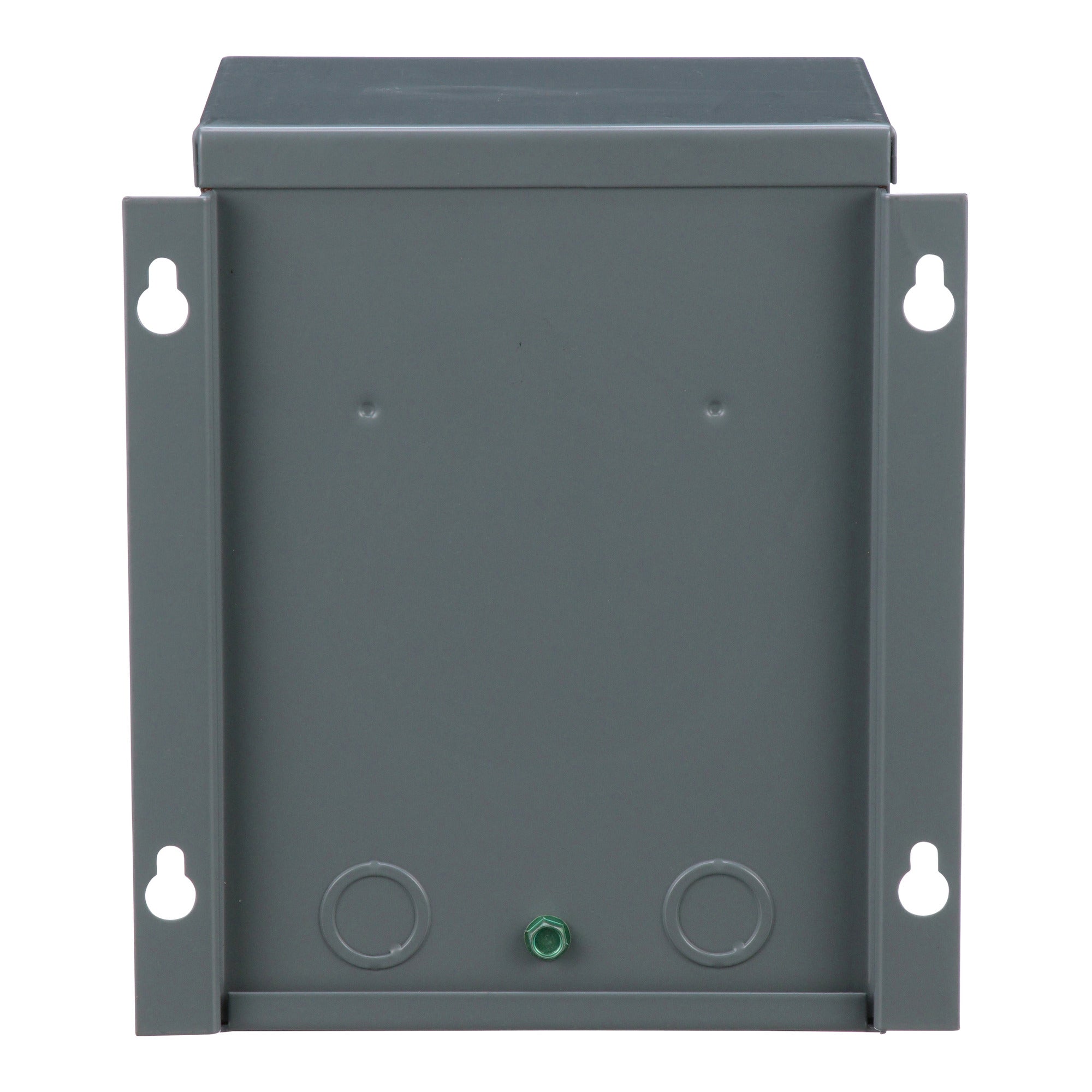

• Wall-mounted configuration for ease of installation and space efficiency.

Product Highlights

This transformer is ideal for a wide range of applications including commercial, industrial, and export markets, supporting multiple voltage systems worldwide. It provides reliable power transformation while adhering to UL and CSA standards, ensuring safety and performance.

Product Information

Standard Information

• Brand: Square D
• Power: 2 kVA

Technical Specifications

• Primary Voltage: 190/200/208/220 x 380/400/416/440 V
• Secondary Voltage: 110/220 V
• Enclosure Type: Painted sheet steel
• Dimensions: 9.56 inches (H) x 8.68 inches (W) x 6.56 inches (D)
• Certifications: UL Listed, CSA
• Mounting: Wall
