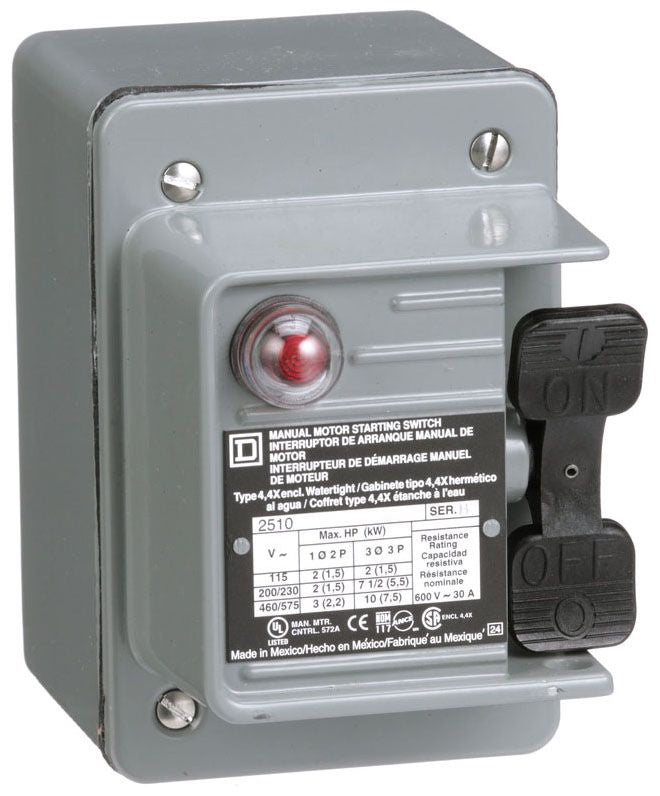

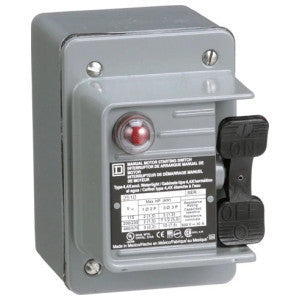

Square D 2510KW1A Manual Switch 600Vac K+Options

Product Description

The Square D 2510KW1A is a manual switch designed for use with motors up to three horsepower. This switch functions at a voltage rating of six hundred volts alternating current or two hundred thirty volts direct current, making it suitable for various applications. It is built with a die-cast zinc alloy and features a NEMA 4 enclosure for protection against dust and water.

• Voltage rating: 600 VAC
• Current rating: 30 amperes
• Double pole design for better safety

Product Highlights

This manual switch is ideal for controlling single-phase motors manually. With options for various voltage and current ratings, it offers versatile applications in residential and industrial settings.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Model: 2510K

Technical Specifications

• UPC: 78590107774
• Material: Die-Cast Zinc Alloy
• Enclosure: NEMA 4
• Size: 2 3/4 inches W x 4 9/16 inches D x 4 3/8 inches H
• Approval: UL, CSA, CE
• HP at 120 V: 2 HP
• HP at 240 V: 2 HP
• HP at 480 V: 3 HP
• HP at 600 V: 3 HP
• Operation Type: Double Pole
