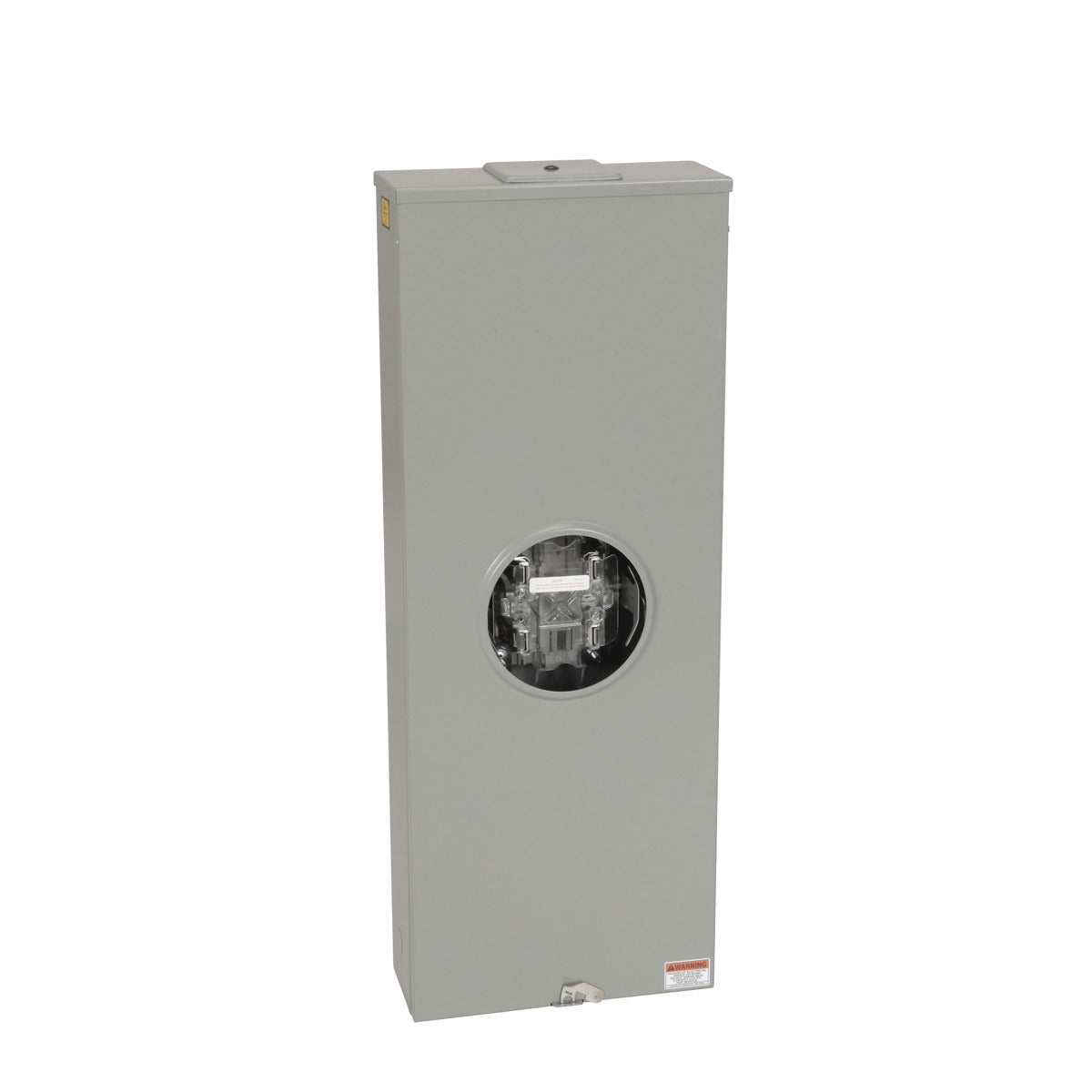

Square D 1009788A meter socket, ringless, 320A

Product Description

The Square D 1009788A individual meter socket is a single phase, ringless meter socket for single family residential construction. This 320A socket underground feed has provisions to feed a downstream main lug load center, a main breaker load center, or an individually enclosed service disconnect. It has a rated operational voltage of 600 VAC and a short circuit current rating of 10,000 RMS symmetrical amperes.

• Ringless meter socket for single-phase systems.
• Rated for 600 VAC and 320A.
• NEMA Type 3R steel enclosure with bonded neutral.

Product Highlights

The Square D 1009788A meter socket is ideal for residential service entrance applications, offering a robust and reliable connection point for utility metering.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 1009788A
• Country of Origin: United States

Technical Specifications

• Type: Ringless;Meter Socket
• Brand: Square D
• Voltage: 600 VAC
• Amperage: 320 Amp
• Enclosure: Steel
• Cable Entry: UG-OH
• Mounting Type: Surface
• Certifications: UL
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• Bypass Type: Lever
• Phase: 1
• Circuit Configuration: 1-Phase
• Current Rating: 320 Ampere
• Bypass Switch Type: Lever
• Amperage Rating: 320 A
• Sub-Brand: Square D
• Wires: 3-Wire
• Enclosure Rating: NEMA 3R
• Feed: Overhead/Underground
• Jaws: 4
• Wire Size: 600 kcmil, 350 kcmil Al/Cu
• Series: A-L
• Closing Plate: ACPL
• Cover: Ringless
• Terminal: Hex Stud
• Mounting: Surface Mount
