Square D 1008801 SQD Meter Socket 200 A 60

Product Description

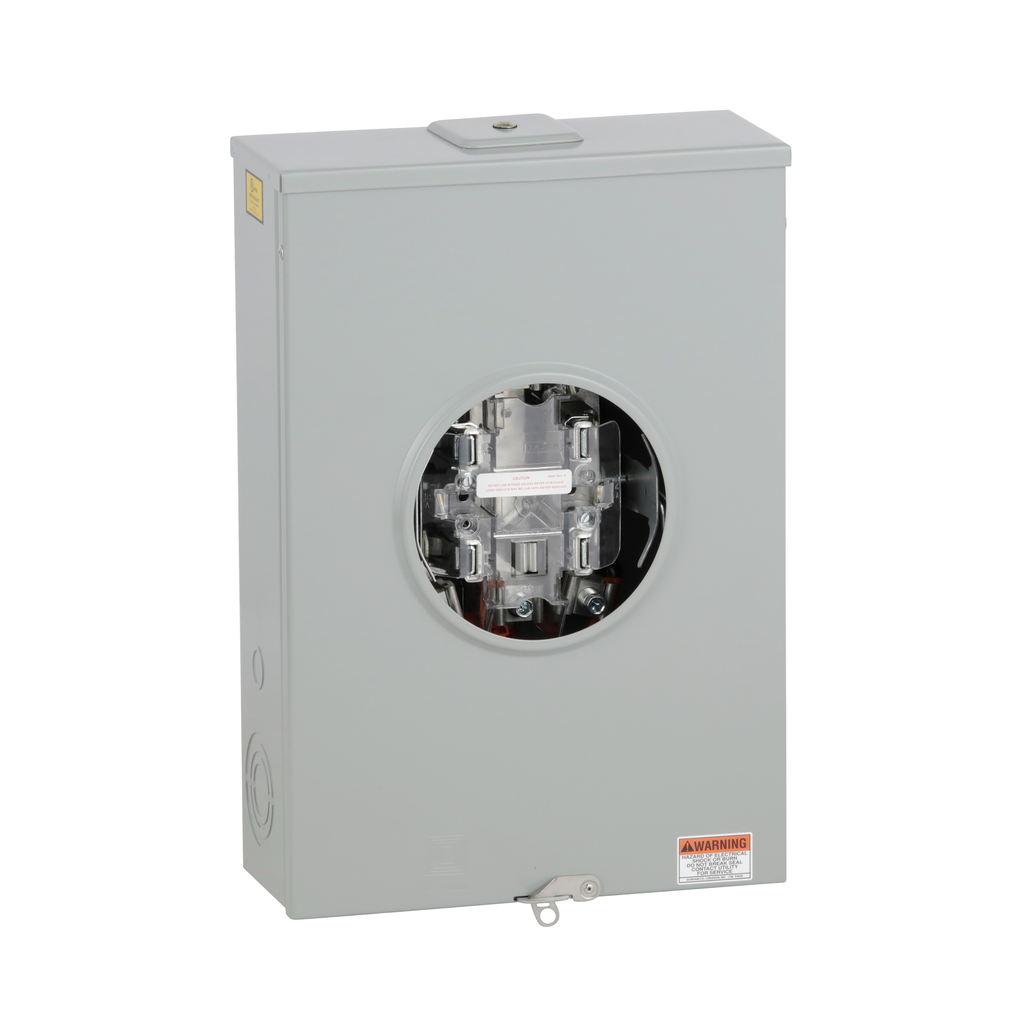

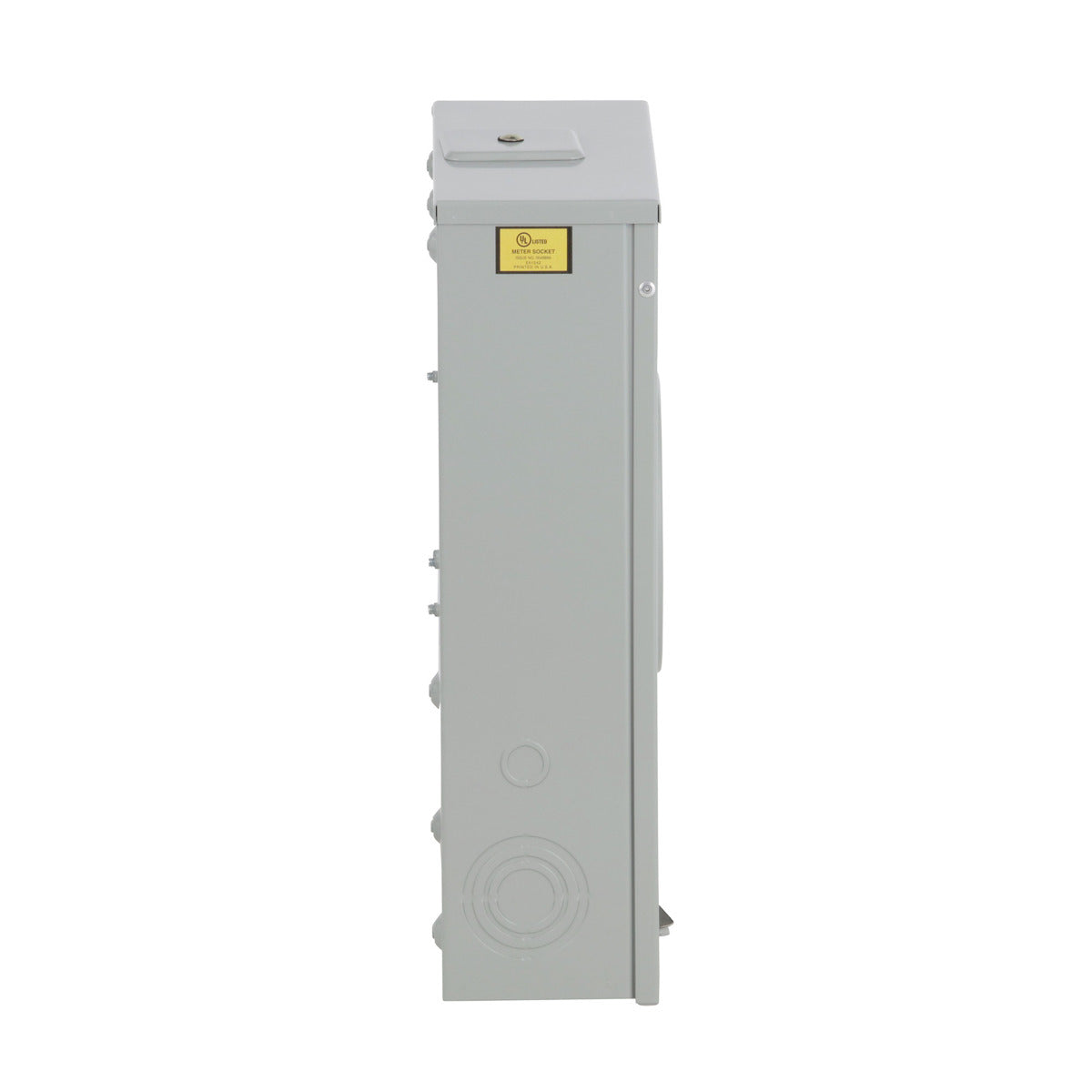

Square D offers the 1008801 meter socket designed for reliable performance in various electrical configurations. This socket supports downstream main lug load centers, main breaker load centers, or individually enclosed service disconnects. It includes provisions for multiple combinations of releases and horns, accommodating different metering requirements. Supplied with a hub opening in the top wall, it requires a bolt-on hub or closing plate for installation. With a rating of 200 Amperes, 600 Volts, and one phase, this ringless socket features four jaws and a 10 kA RMS short circuit rating. The product has a bonded neutral connection to the NEMA 3R enclosure and is UL Listed.

• Rated for 200 A and 600 V
• Features four jaws and a bonded neutral
• UL Listed for safety and reliability

Product Highlights

This meter socket is ideal for various electrical metering applications and ensures compatibility with several configurations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 1008801
• Voltage: 600 Volt
• Amperage: 200 Amp
• Number of Phases: 1 Phase
• Enclosure: Steel
• Bypass Type: Horn
• Country of Origin: USA
• Warranty Length: 18 months
