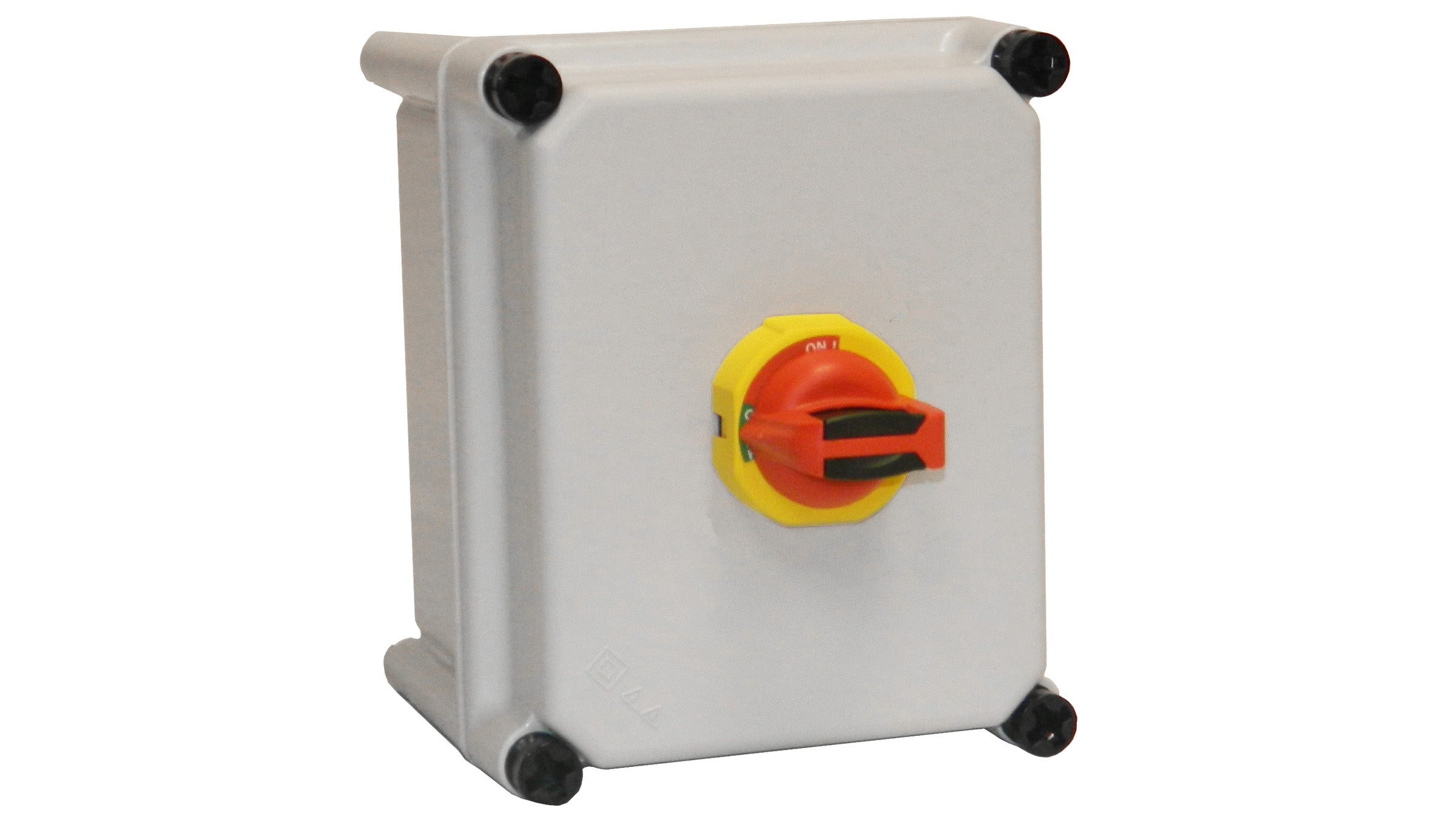

Sprecher & Schuh LA7-16-1753-CR-PL11 Motor Disconnect 16A (3 Pole)

Product Description

Sprecher & Schuh LA7-16-1753-CR-PL11 is a 3-pole motor disconnect switch with a 16 A base rating. The non-fusible device is designed for base mounting and is housed in a non-metallic Type 4/4X (NEMA 4/4X) enclosure rated to 600 VAC and 600 VDC. The unit includes a selector operator (black/gray) and carries CE, CSA and UL approvals for enclosed motor disconnect applications.

• 3-pole, 16 A motor disconnect; non-fusible; base mounting
• Rated to 600 VAC and 600 VDC in a non-metallic NEMA 4 / 4X (Type 4/4X) enclosure
• Selector operator (black/gray); approvals: CE, CSA, UL

Product Highlights

3-pole 16 A motor disconnect in a non-metallic NEMA 4/4X enclosure; non-fusible with selector operator and CE/CSA/UL approvals

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: LA7-16-1753-CR-PL11

Technical Specifications

• Manufacturer: Sprecher & Schuh
• Manufacturer Part Number: LA7-16-1753-CR-PL11
• Product Type: Motor disconnect switch
• Product Series: L7
• Family: L7 Switches 16-100A Enclosed
• Poles: 3
• Current Rating: 16 A
• AC Voltage: 600 VAC
• DC Voltage: 600 VDC
• Fusible: No
• Operator Type: Selector (black/gray)
• Mounting Type: Base
• Enclosure Rating: NEMA 4, NEMA 4X (Type 4/4X)
• Enclosure Composition: Non-metallic
• Approvals: CE, CSA, UL
• MI Item #: 15287373
• Catalog Number: 5300102565
• UPC: 00884951366374
• Net Weight: 0.999 kg
• Package Quantity: 1
