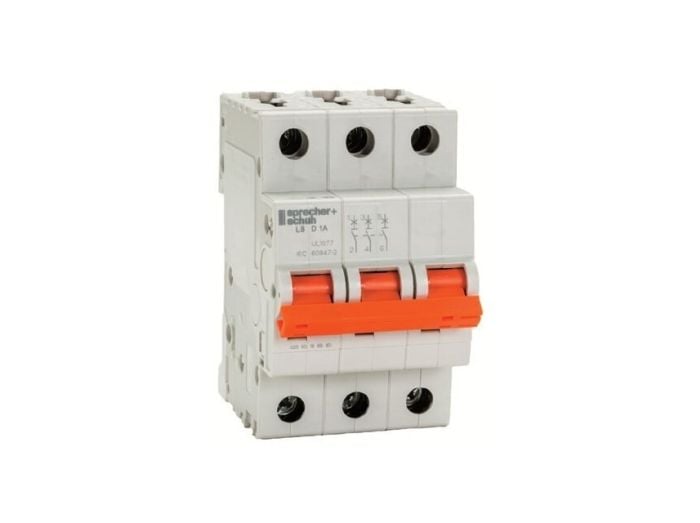

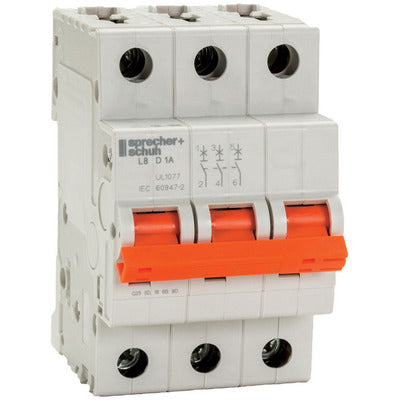

Sprecher & Schuh L8-40/3/D CB 40A CURVE-D 3-POLE

Product Description

The SPRECHER & SCHUH L8-40/3/D is a circuit breaker from the L8 series. This 3-pole breaker has a 40A current rating and a D trip curve. It features thermal magnetic trip unit and is designed for DIN rail mounting.

• 40 A current rating
• D trip curve
• DIN Rail Mounting

Product Highlights

The SPRECHER & SCHUH L8-40/3/D circuit breaker is suitable for various applications requiring reliable circuit protection.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: L8-40/3/D

Technical Specifications

• Manufacturer Part Number: L8-40/3/D
• Manufacturer: Sprecher + Schuh
• Product Series: L8
• Family Series: Sprecher + Schuh Circuit Breakers, L8 Series
• Description: CB 40A CURVE-D 3-POLE
• Poles: 3
• Current Rating: 40 A
• Max Voltage: 480 VAC
• Trip Curve: D
• Trip Unit: Thermal Magnetic
• Electronic Trip Unit: No
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: No
• UL Standard: 1077
• Approvals: CE, CSA, IEC, UL, UR
• Primary brand: Sprecher+Schuh
• Order code / Manufacturer SKU: L8-40/3/D
• Manufacturer product status: Commercialized
• Manufacturer description: S+S L8 Suppl. Protector 3 Pole - CB 40A CURVE-D 3-POLE
