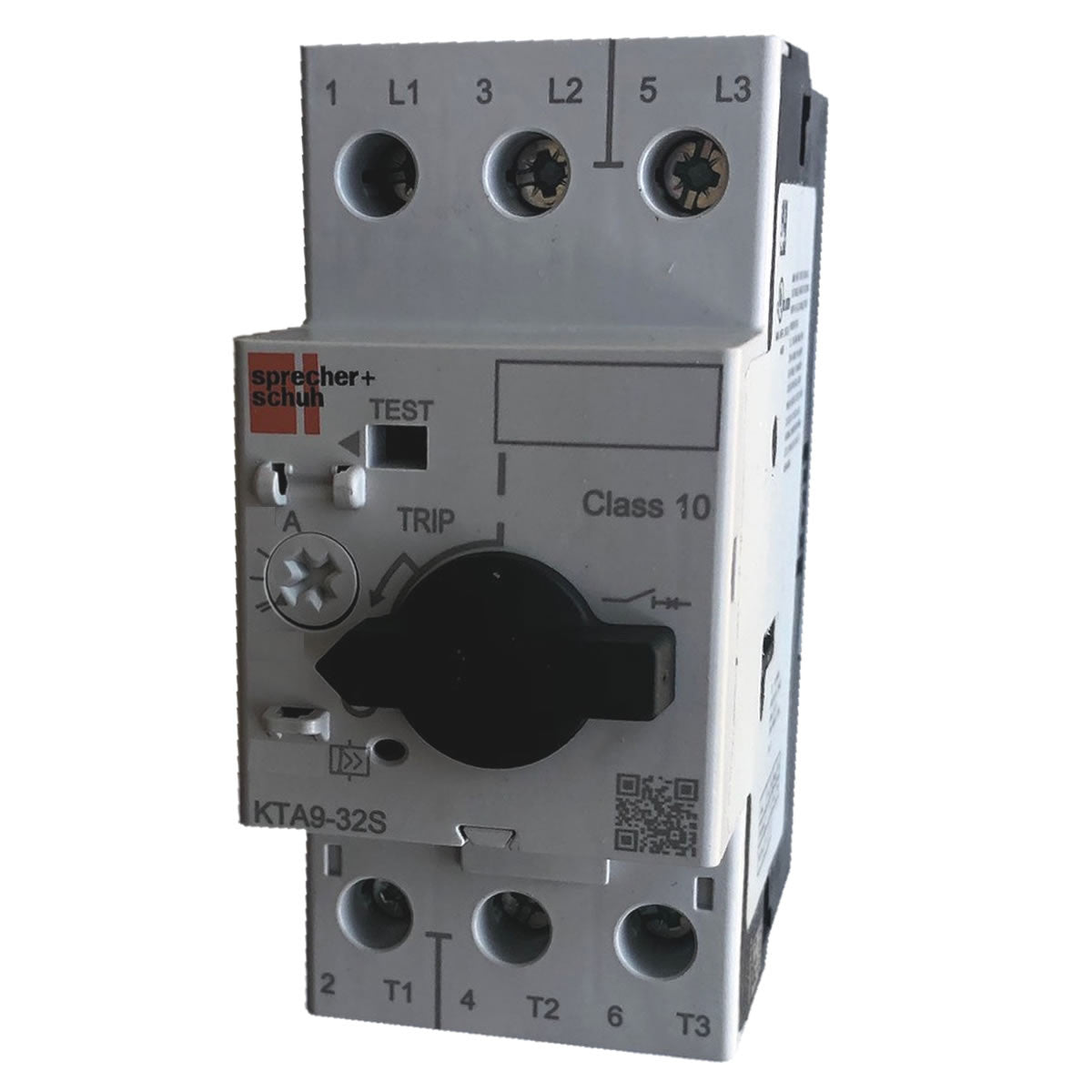

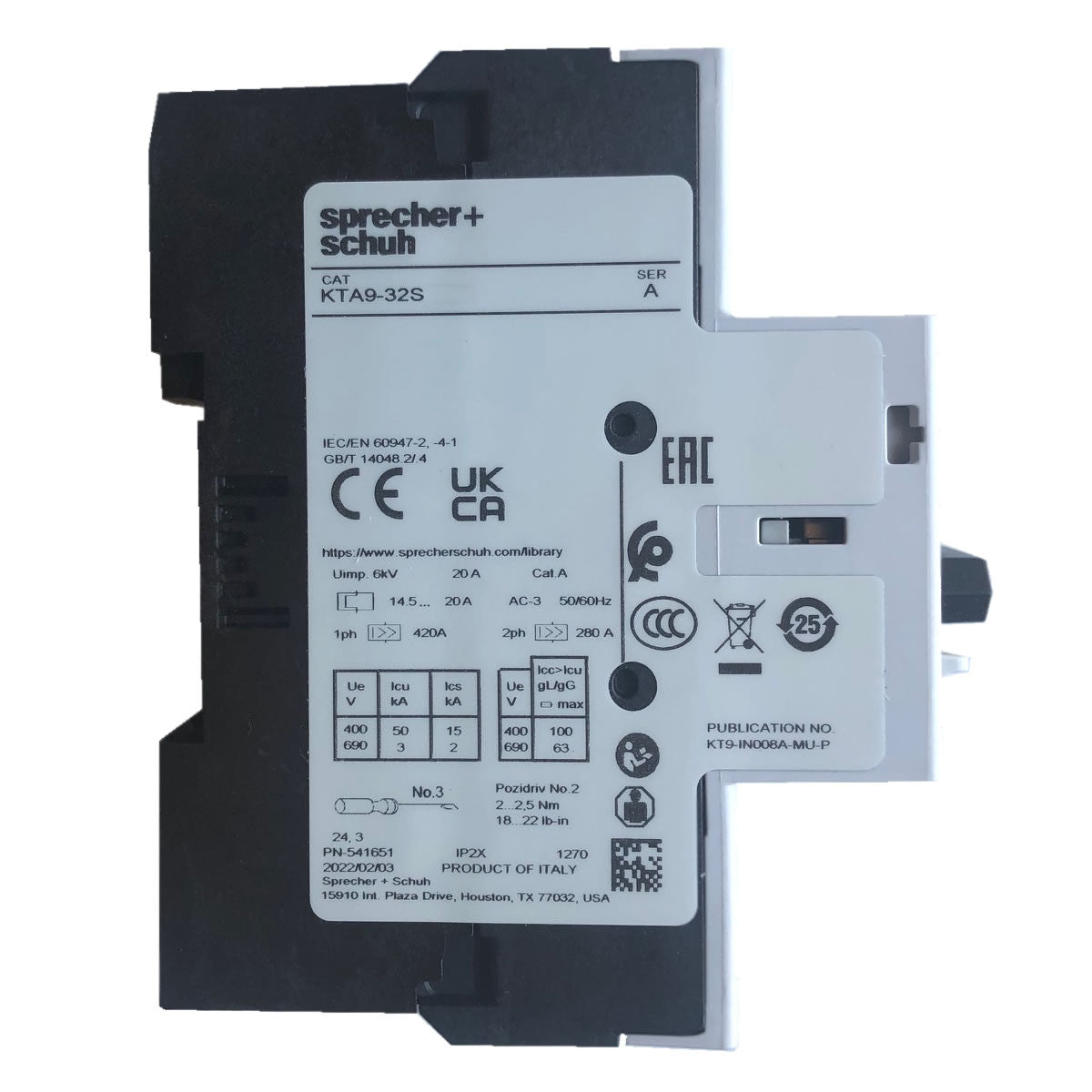

Sprecher & Schuh KTA9-32S-6.3A Motor Protector 6.3A

Product Description

The Sprecher + Schuh KTA9-32S-6.3A motor protector is a reliable and efficient device designed to safeguard electrical motors from potential damage. It has adjustable AMP ranges from 4 to 6.3 AMPS and current limiting short circuit protection. The motor protector ensures optimal performance and longevity for industrial machinery.

• Adjustable AMP ranges from 4 to 6.3 AMPS
• Current limiting short circuit protection
• Screw terminals

Product Highlights

This motor protector features overload and short-circuit protection with user-friendly manual control. Its compact design is space-efficient and resistant to harsh environmental conditions.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KTA9-32S-6.3A

Technical Specifications

• SKU: KTA9-32S-6.3A
• Series: KTA9 Series
• Trip Curve: Magnetic Trip
• Poles: 3 Pole
• All - Voltage: 200 to 575VAC
• Circuit Breaker Type: Manual Motor Protector (MMP)
• Amp Rating: 6.3 Amp
• Short Circuit Capacity: 65kA
• Manufacturer Part Number: KTA9-32S-6.3A
• Manufacturer: Sprecher + Schuh
• Product Series: KTA9
• Current Rating: 6.3 A
• FLA Adjustment Range: 4-6.3
• Phase: 3
• Trip Class: Class 10
• Auxiliary Contact: None
• Enclosure: Open
• Operator: Rotary
• Pilot Light: No
• Protection Rating: IP2X
• Approvals: CCC, CE, CSA, cULus, IEC, UL
• Comments: KTA9-32S Standard Interrupting Capacity
