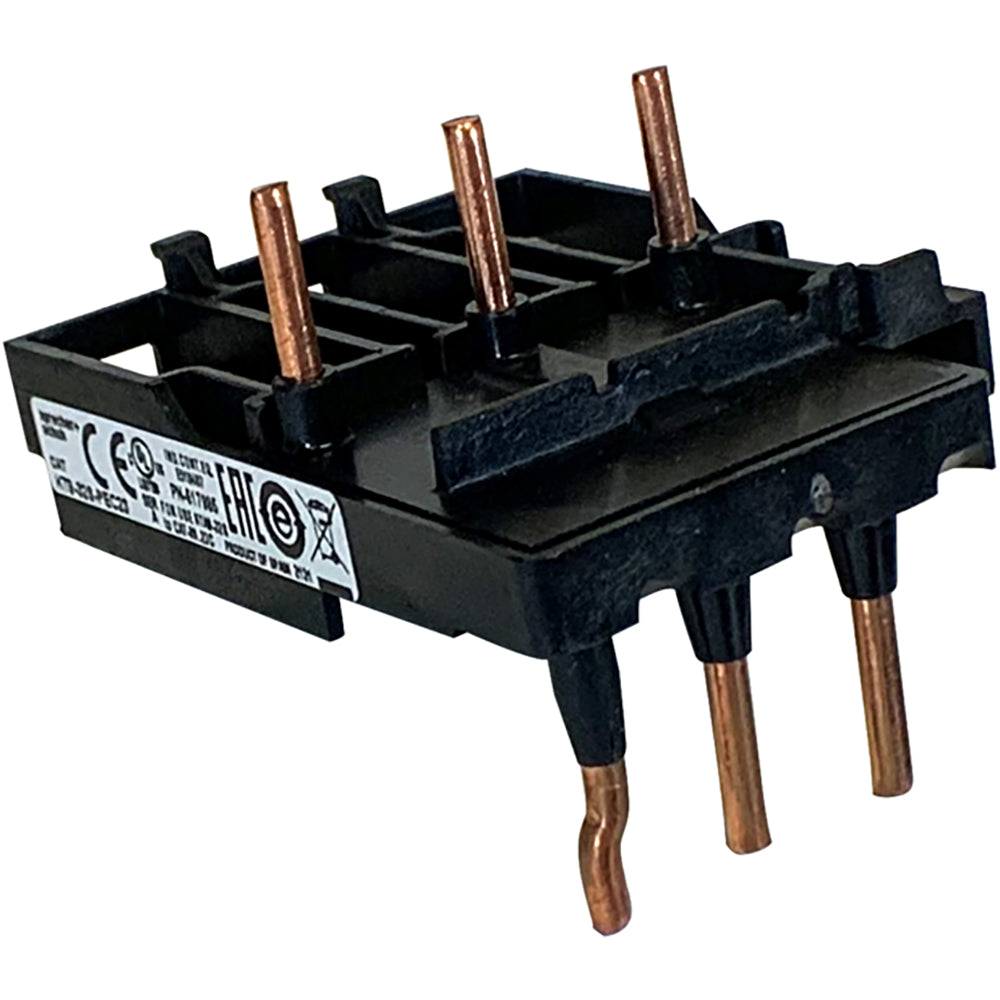

Sprecher & Schuh KT9-32S-PEK12 12A Connecting Module (Direct Mount)

Product Description

Sprecher & Schuh KT9-32S-PEK12 is a 12A connecting module intended for drive options and accessories. The module mounts directly to KT_9 starters and provides electrical and mechanical interconnection to CA8 contactors for direct-on-line and reversing starter configurations. It mounts on a single DIN rail and is rated 12 A (IEC) and 11 A (UL). The unit is listed with manufacturer origin Spain.

• Rated current: 12 A (IEC); 11 A (UL)
• Direct-mount connection for KT_9 starters to CA8 contactors; mounts on single DIN rail
• Intended for direct-on-line (DOL) and reversing starter applications; provides electrical and mechanical interconnection

Product Highlights

Direct-mount KT9 connection module for KT_9 to CA8 interconnection; 12 A IEC / 11 A UL; DIN rail compatible.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KT9-32S-PEK12
• Country of Origin: Kingdom of Spain

Technical Specifications

• Manufacturer Part Number: KT9-32S-PEK12
• Brand: Sprecher & Schuh
• Manufacturer Description: KT9-32S-PEK12 12A CONNECTING MODULE
• Product Type: Drive options and accessories
• Current Rating (IEC): 12 A
• Current Rating (UL): 11 A
• Application: Direct-on-line (DOL) and reversing starters
• Mounting Type: Direct mount; single DIN rail
• Series: KT9 Series
• Country of Origin: Kingdom of Spain
