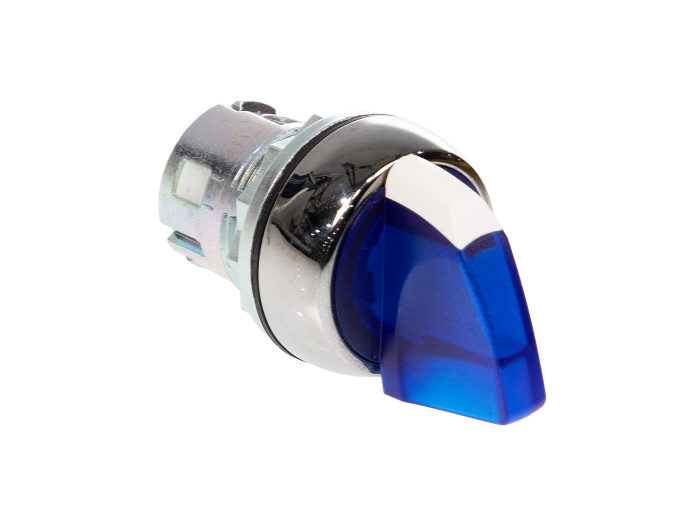

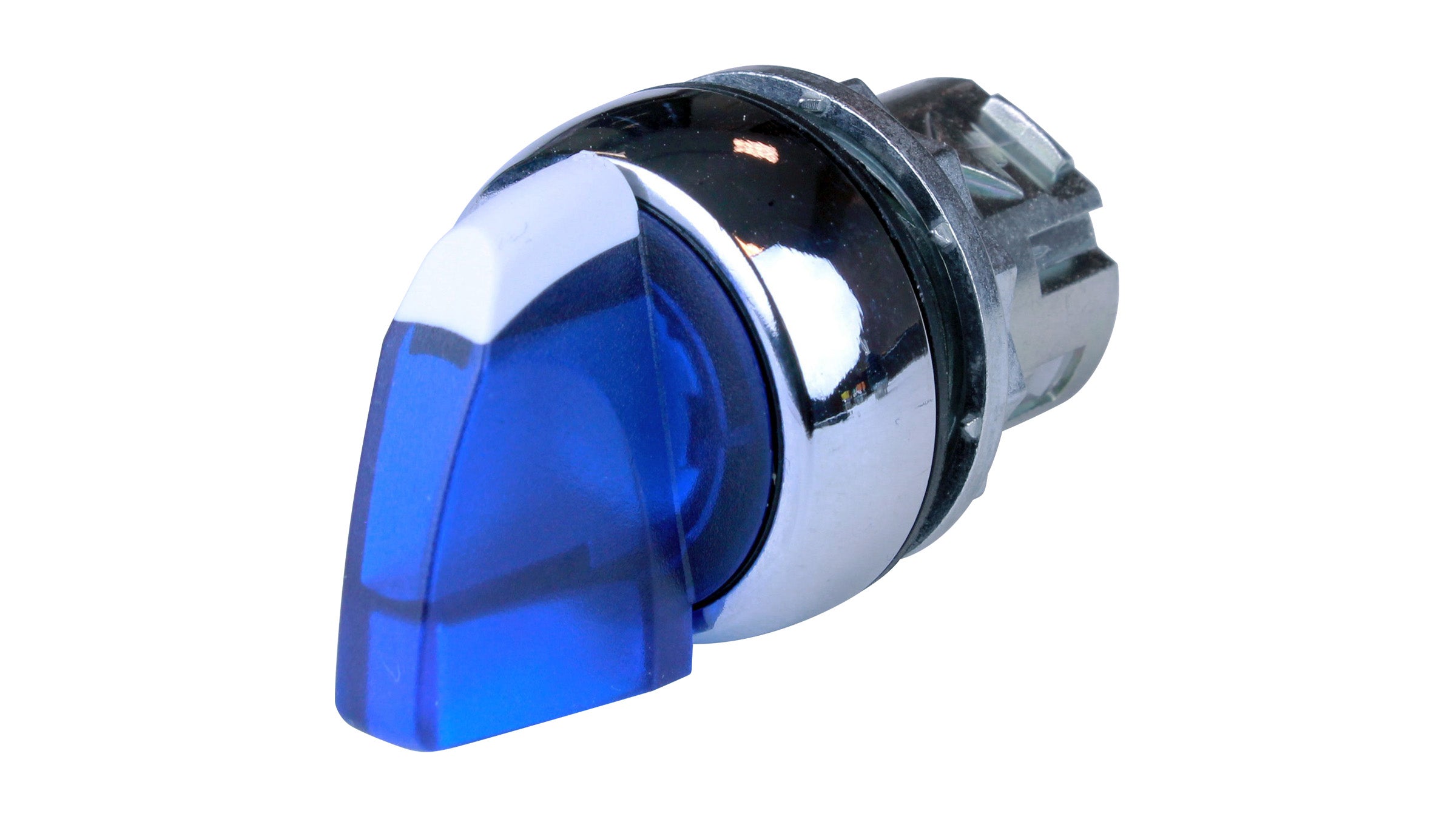

Sprecher & Schuh D7M-LSM26 Selector Switch Illuminated Metal 2-Position Maintained (22.5 mm)

Product Description

Sprecher & Schuh D7M-LSM26 is an illuminated 22.5 mm selector switch with a metal bezel and a two-position maintained operator supplied as operator-only (no contacts). The device is panel-mountable and rated UL Type 4/13 and IP66 for environmental protection, with certifications including UL, CSA, CCC, and CE. Typical applications include industrial control panels and machine operator stations requiring a sealed, illuminated selector operator.

• Illuminated operator with metal bezel, operator-only configuration (contacts not included).
• Two-position maintained operator for panel mounting with 22.5 mm panel hole diameter.
• Environmental ratings UL Type 4/13 and IP66; approvals: UL, CSA, CCC, CE.

Product Highlights

22.5 mm illuminated metal selector operator, operator-only, 2-position maintained, UL Type 4/13 and IP66 rated.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: D7M-LSM26
• Country of Origin: China

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: D7M-LSM26
• Series: D7M
• Product Type: Selector Switch
• Function: Illuminated selector switch
• Operator Type: 2-position maintained
• Contact Configuration: Operator only (contacts not included)
• Bezel Type: Metal
• Panel Hole Diameter: 22.5 mm
• Mounting Size: 22.5 mm
• Enclosure Rating: UL Type 4/13, IP66
• Approvals: UL, CSA, CCC, CE
• Country of Origin: China
• Net Weight: 34.019 g
• Category: Selector Switches
• Package Quantity: 1
