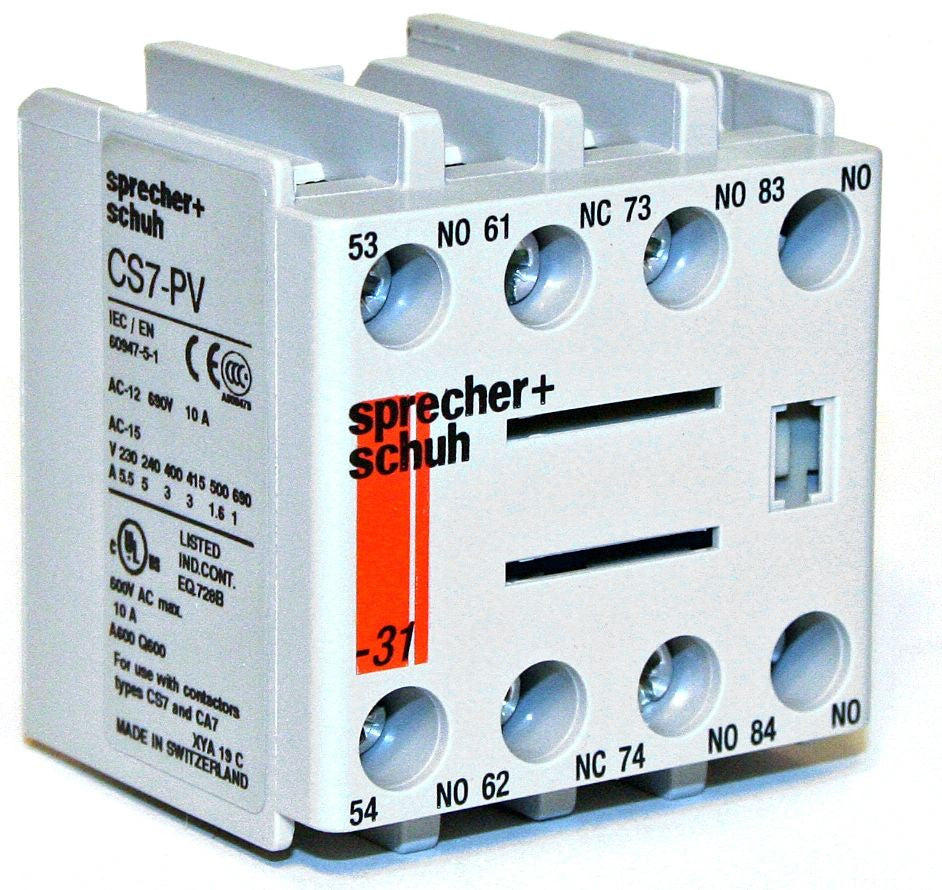

Sprecher & Schuh CS7-PV-31 Auxiliary Contact, Front Mount, 3NO 1NC, 4-Pole

Product Description

The Sprecher & Schuh CS7-PV-31 is an auxiliary contact block designed for top mounting. It features a snap-on design for tool-free mounting and is compatible with electronic standard contacts down to 17V, 5mA, or a bifurcated version at 5V, 3mA. Mechanically linked between N.O. and N.C. poles and to the control relay poles (excluding L types).

• 2 and 4 pole
• Snap-on design - mounts without tools
• Electronic compatible standard contacts down to 17V, 5mA, bifurcated version 5V, 3mA

Product Highlights

Auxiliary contact block with a snap-on design for easy, tool-free mounting.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CS7-PV-31
• Country of Origin: China

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: CS7-PV-31
• Mounting Style: Front Mount
• Number of Poles: 4
• Series: CS7 Series
• Type: contact block
• Model: auxiliary contact block
• Condition: New
• Manufacturer: Sprecher + Schuh
• Description: Auxiliary Contact
• For Use With: CS7 Contactors
• Approvals: CCC, CE, cULus
• Contact Configuration: 3NO/1NC
• Compatible Models: CA7-9, CA7-12, CA7-16, CA7-23, CA7-30, CA7-37, CA7-43, CA7-60, CA7-72, CA7-85
